Omron C200H-MC221 Specification

Motion Control Unit
Product Specifications
10

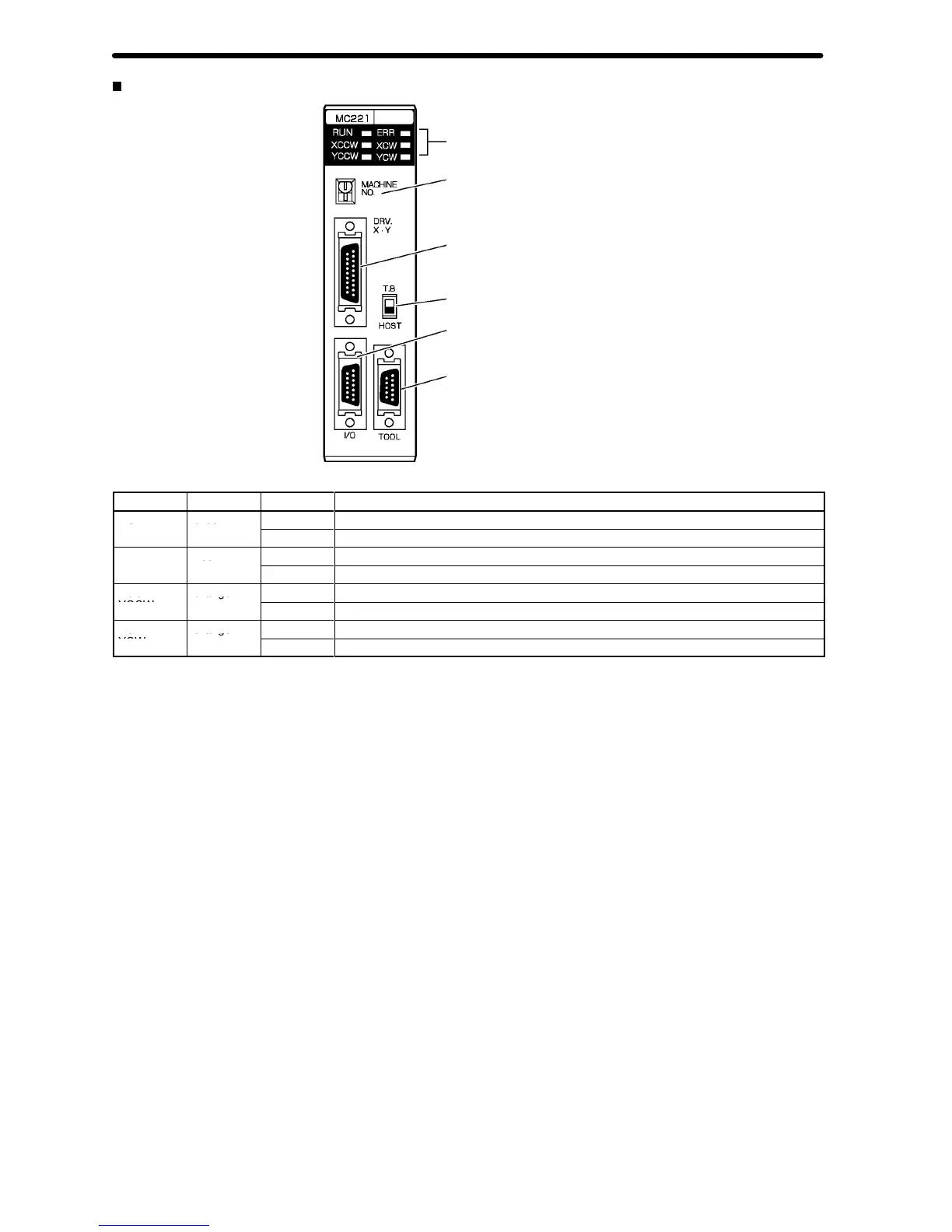

Component Names
LED indicators
Unit number setting switch
I/O connector
Peripheral selection switch
Peripheral connector
DRV X-Y connector
10126-3000VE Connector (Sumitomo 3M)
10326-42F0-008 Connector cover (Sumitomo 3M)
(The Unit is provided with 1 set.)
Indicators
Indicator Color Status Meaning
RUN Green
ON Initialization has been completed normally . (Connected to the CPU Unit normally .)
U
Gee
OFF An error has occurred in the MC Unit or the CPU Unit.
ERR Red
ON An error has occurred in the MC Unit.
ed
OFF The MC Unit is operating normally .
XCCW
YCCW
Orange
ON The motor is rotating counterclockwise.
CC
YCCW
Oa ge
OFF The motor is rotating clockwise or stopped.
XCW
YCW
Orange
ON The motor is rotating clockwise.
C
YCW
Oa ge
OFF The motor is rotating counterclockwise or stopped.

Omron C200H-MC221 Specifications

General

Brand	Omron
Model	C200H-MC221
Category	Control Unit
Language	English
