14

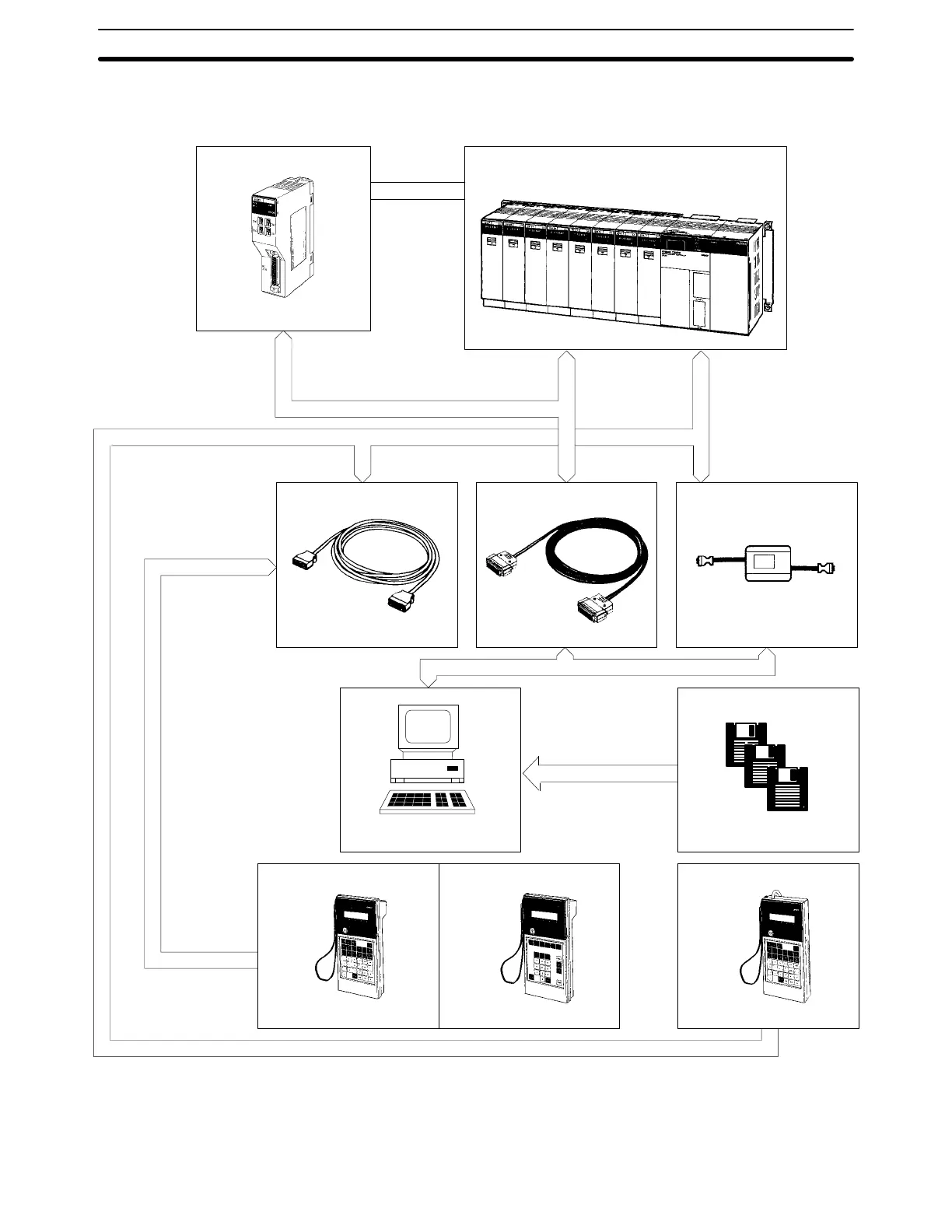

IBM PC/AT with SSS An IBM PC/AT or compatible computer with SYSMAC Support Software can be
connected as shown in the diagram.
C200HX/HG/HE
Mounted
directly
RS-232C
port
Host Link Unit
C200H-LK201-V1
Connecting
Cables
Peripheral
port
C200H-CN222/422
(2 m/4 m)
Programming Console
Connecting Cable
Connecting Cable
IBM PC/AT or Compatible SYSMAC Support Software
C500-ZL3AT1-E
C200H-PRO27-E CQM1-PRO01-EC200H-DAC01
Support
Software
Peripheral
Device
Programming Console for
C200H
Data Access Console for
C200H
Programming Console
XW2Z-200S/500S
(See note)
Connecting CableConnecting Cable
CQM1-CIF02
Note The connector of the XW2Z-200S/500S Connecting Cable is a male 25-pin ter-
minal. An adapter is required for the 9-pin male D-sub terminal on the IBM PC/AT
or compatible side.
CPU Unit Components Section 2-1
