Omron C200HX - Standard Models

505
Appendix A

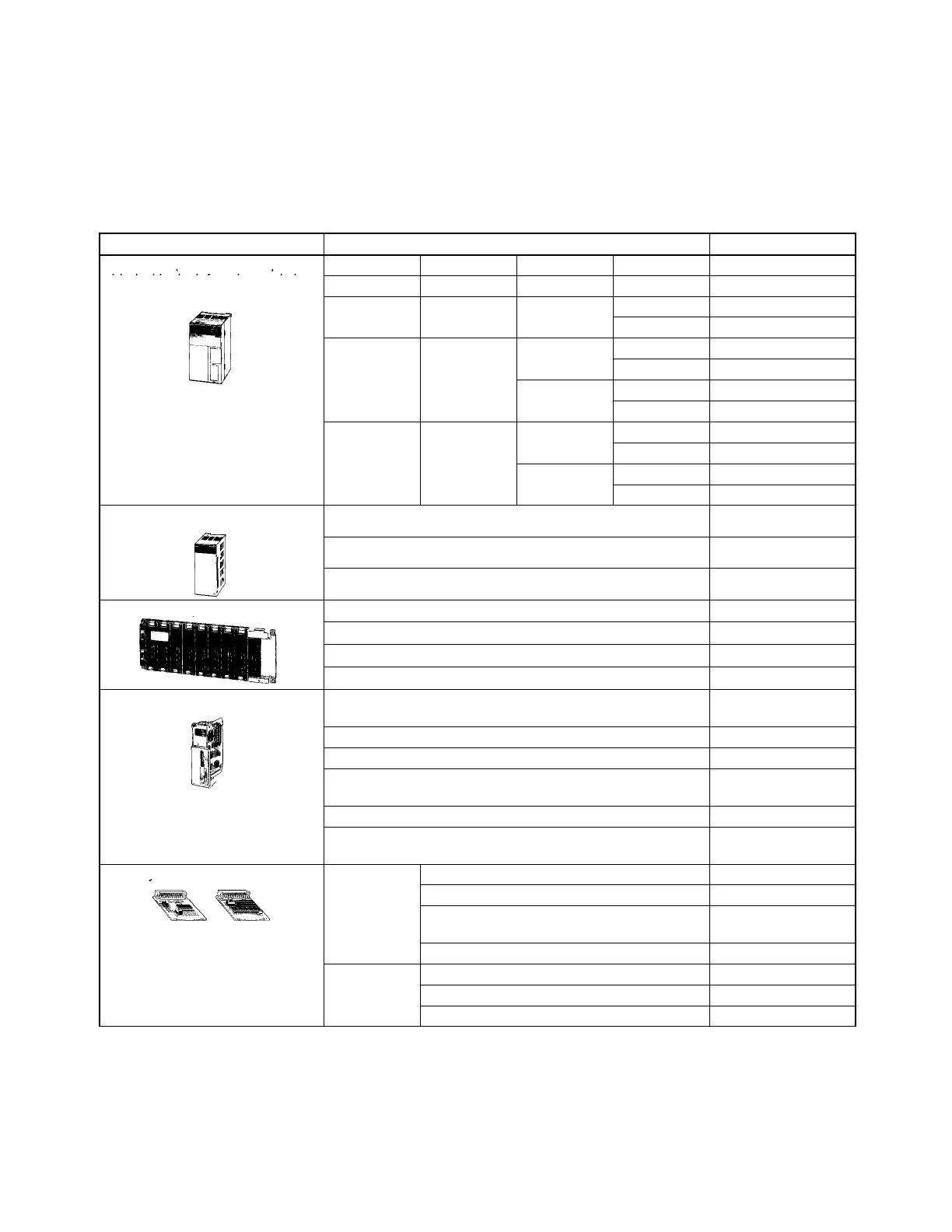

Standard Models
CPU Rack
Name Specifications Model number
CPU Units (All models are pro-
id d i h l k f i d l
UM DM I/O points RS-232C ---
(p
vided with clock function and slots
for communications except
3.2K words 4K words 640 No C200HE-CPU11-E
f
or commun
i
cat
i
ons except
CPU11-E.
)
7.2K words 6K words 880 No C200HE-CPU32-E
CPU11-E
.
)
Yes C200HE-CPU42-E
15.2K words 12K words 880 No C200HG-CPU33-E
Yes C200HG-CPU43-E
1,184 No C200HG-CPU53-E
Yes C200HG-CPU63-E
31.2K words 24K words 880 No C200HX-CPU34-E
Yes C200HX-CPU44-E
1,184 No C200HX-CPU54-E
Yes C200HX-CPU64-E
Power Supply Units
100 to 120/200 to 240 VAC C200HW-PA204
100 to 120/200 to 240 VAC (with 24-VDC output terminals) C200HW-PA204S
24 VDC C200HW-PD024
CPU I/O Backplanes
3 slots C200HW-BC031
p
5 slots C200HW-BC051
8 slots C200HW-BC081
10 slots C200HW-BC101
Communication Boards
Communications port for SYSMAC LINK and SYSMAC NET
Link Units
C200HW-COM01
RS-232C port C200HW-COM02
RS-422/485 port C200HW-COM03
Communications port for the SYSMAC LINK Unit and SYS-
MAC NET Link Unit and a protocol macro function
C200HW-COM04-E
Two RS-232C ports and a protocol macro function C200HW-COM05-E
RS-422/485 port, an RS-232C port, and a protocol macro
function
C200HW-COM06-E
Memory Cassettes
EEPROM 4K words C200HW-ME04K
y
8K words C200HW-ME08K
16K words C200HW-ME16K
(see note)
32K words C200HW-ME32K
EPROM 16K words/32K words C200HS-MP16K
Equivalent to 27256, 150 ns, 12.5 V ROM-JD-B
Equivalent to 27512, 150 ns, 12.5 V ROM-KD-B
Note: The C200HW-ME16K will be released soon. The EEPROM Memory Cassette can be also used with the
C200HS-ME16K.
