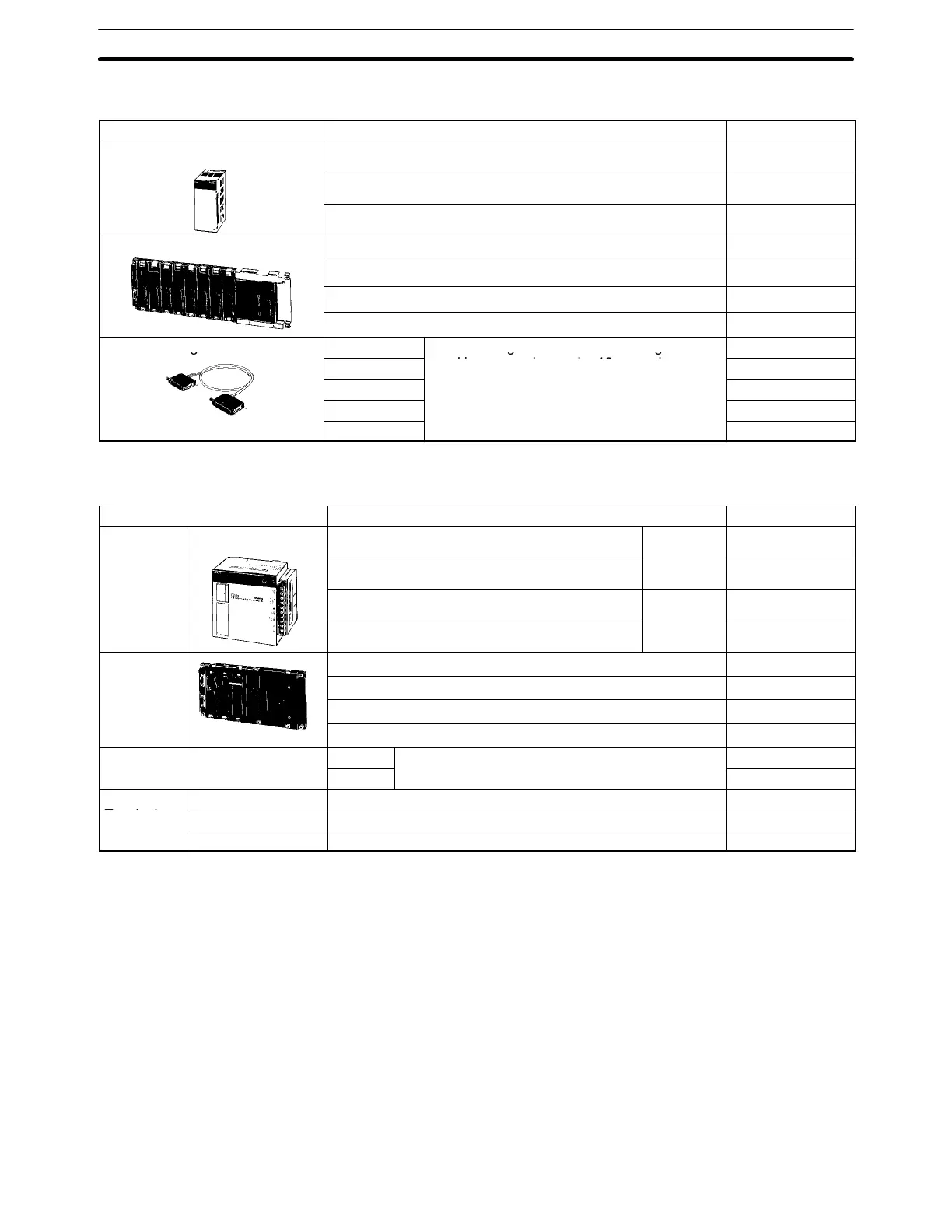

Standard Models Appendix A
506
Expansion I/O Racks
Name Specifications Model number
Power Supply Units
100 to 120/200 to 240 VAC C200HW-PA204
100 to 120/200 to 240 VAC (with 24-VDC output terminals) C200HW-PA204S
24 VDC C200HW-PD024
Expansion I/O Backplanes
3 slots C200HW-BI031
5 slots C200HW-BI051
8 slots C200HW-BI081
10 slots C200HW-BI101
I/O Connecting Cables
30 cm
The total length of the I/O Connecting Cables
di k b 12 i
C200H-CN311
g
70 cm
gg
used in a network must be 12 m maximum.
C200H-CN711
200 cm C200H-CN221
500 cm C200H-CN521
1,000 cm C200H-CN131
Slave Racks
Name Specifications Model number
Slave
Racks
Remote I/O Slave
Units
100 to 120/200 to 240 VAC (switchable) APF/PCF C200H-RT001-P
Racks
Units
24 VDC C200H-RT002-P
100 to 120/200 to 240 VAC (switchable) Wired C200H-RT201
24 VDC C200H-RT202
Backplanes 3 slots C200H-BC031-V2
5 slots C200H-BC051-V2
8 slots C200H-BC081-V2
10 slots C200H-BC101-V2
I/O Blocks Input Specify either 12 or 24 VDC. G71-IC16
Output G71-OD16
I/O
Til
AC input Specify either 100 or 200 VAC. G7TC-IA16
Terminals
DC input Specify either 12 or 24 VDC. G7TC-ID16
Output Specify either 12 or 24 VDC. G7TC-OC16
