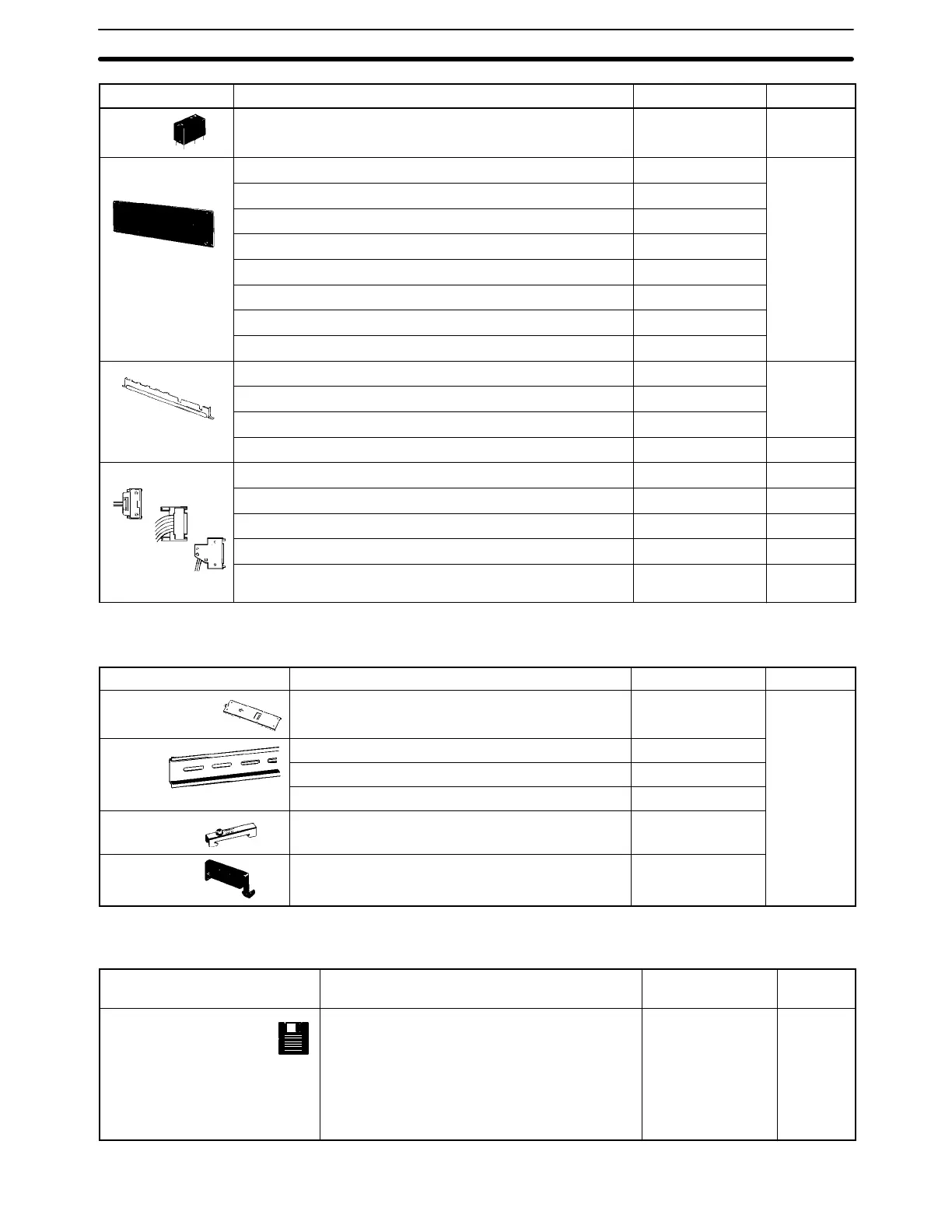

Standard Models Appendix A
518
Name StandardsModel numberSpecifications
Relay 24 VDC G6B-1174P-FD-US ---
Backplane Insula-
For C200HW-BC031 (3-slot CPU Backplane) C200H-ATT31 ---
tion Plates
For C200HW-BC051 (5-slot CPU Backplane) C200H-ATT51
For C200HW-BC081 (8-slot CPU Backplane) C200H-ATT81
For C200HW-BC101 (10-slot CPU Backplane) C200H-ATTA1
For C200HW-BI031 (3-slot I/O Backplane) C200HW-ATT32
For C200HW-BI051 (5-slot I/O Backplane) C200HW-ATT52
For C200HW-BI081 (8-slot I/O Backplane) C200HW-ATT82
For C200HW-BI101 (10-slot I/O Backplane) C200HW-ATTA2
I/O Brackets
For 3-slot Backplane C200H-ATT33 N
For 5-slot Backplane C200H-ATT53
For 8-slot Backplane C200H-ATT83
For 10-slot Backplane C200H-ATTA3 ---
External Connectors
Solder terminal; 40p and a Connector Cover C500-CE401 ---
Solderless terminal; 40p and a Connector Cover (Crimp-type) C500-CE402 ---
Pressure welded terminal; 40p C500-CE403 ---
Solder terminal; 40p and a Connector Cover (Horizontal-type) C500-CE404 ---
Crimp-style terminal; 40p and a Connector Cover (Horizontal-
type)
C500-CE405 ---
Mounting Rails and Accessories
Name Specifications Model number Standards
DIN Track
Mounting Bracket
1 set (2 included) C200H-DIN01 ---
DIN Tracks Length: 50 cm; height: 7.3 cm PFP-50N
Length: 1 m; height: 7.3 cm PFP-100N
Length: 1 m; height: 16 mm PFP-100N2
End Plate --- PFP-M
Spacer --- PFP-S
Note: Order DIN Tracks, End Plates, and Spacers in units of 10 each.
SYSMAC Support Software (SSS)
Name Specifications Model number Stan-
dards
SYSMAC Support Soft-
ware (for C20, CP,
CK, C120, CH,
C200H, C200HS,
C200HE, C200HG,
C200HX, C500, C1000H,
C2000H, CQM1, and
CVM1)
3.5”, 2HD for IBM PC/AT compatible
Note: Version 1.0 doesn’t support the additional
functions of the C200HX/HG/HE.
C500-ZL3AT1-E ---
