Omron CK5M Series Startup Guide

64
2

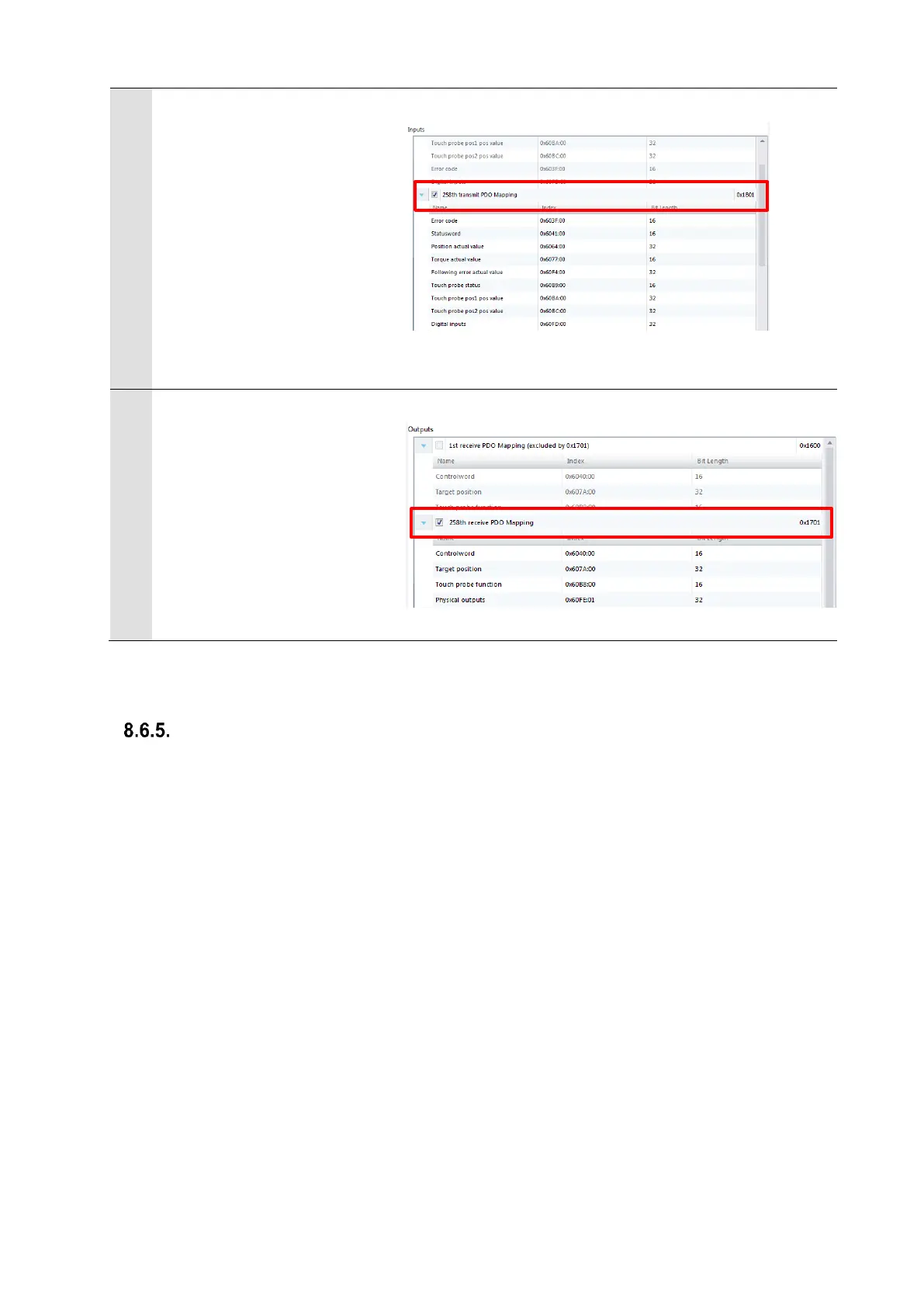

Setting PDO mapping (Inputs)
Make sure that the 258th
transmit PDO Mapping
0x1B01 , 273th transmit PDO
Mapping 0x1B10 check boxes
are selected.
3
Setting PDO mapping (Outputs)
Make sure that the 258th
receive PDO Mapping 0x1701
and 273th receive PDO
Mapping 0x1710 check boxes
are selected.
Coupler I/O and Variable Allocations
(1) Checking the coupler I/O allocations
Decompress the ZIP file you saved in 0
Output of Coupler I/O Allocations, open the expanded “CouplerCopyInfo.xml”, and check the
contents.
(2) Setting Input Data
Associate the following items:
- Module 1 (NX-SL3500).Input Data Set 1, and Module 2 (NX-SID800).Output Data Set 1
- Module 1 (NX-SL3500).Input Data Set 1, and Module 3 (NX-SOD400).Output Data Set 1
