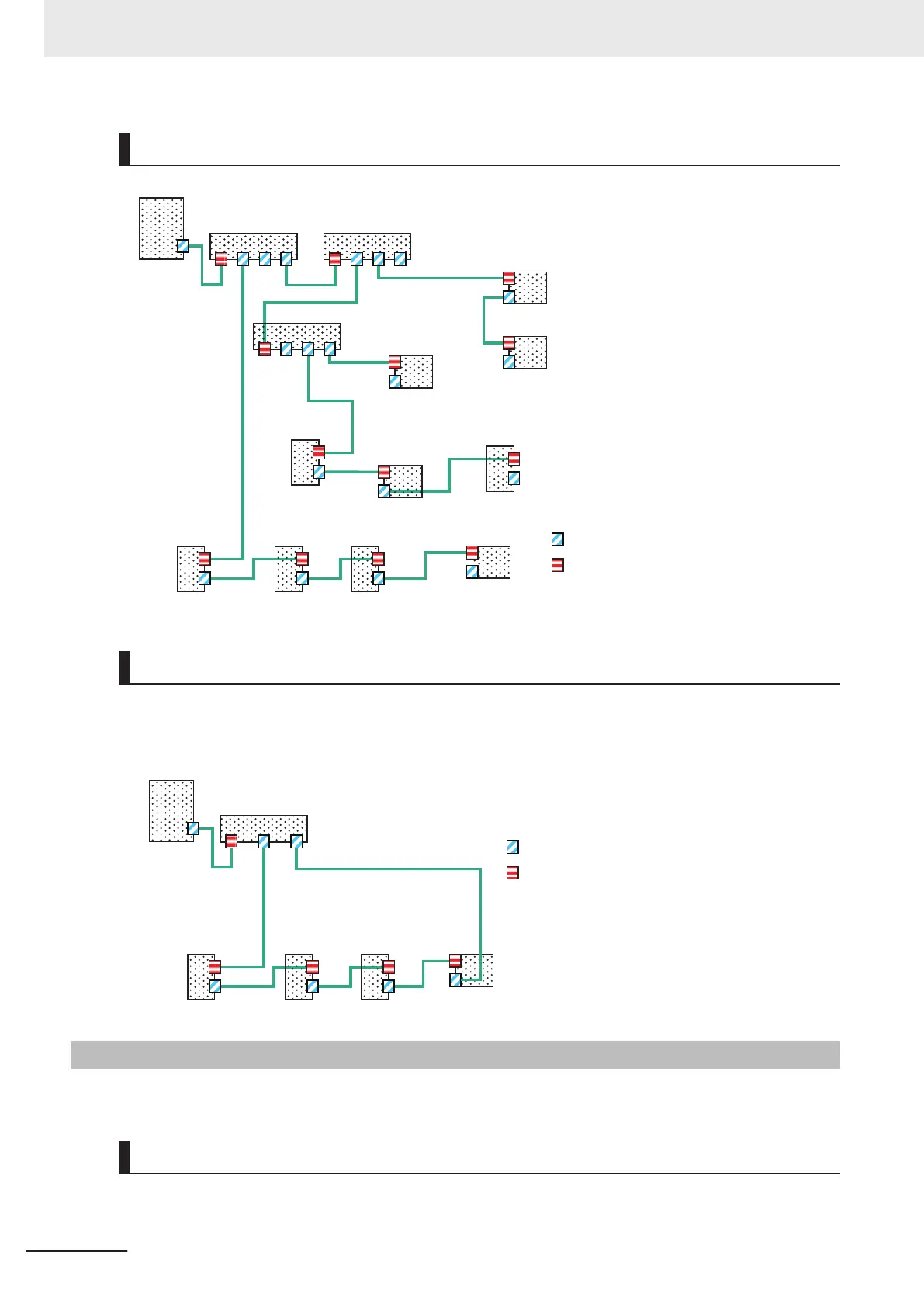

Omron CK5M Series - Page 62

62
10
[Slot1(NX-SL3500)Output Data
Set1]
Registering Node2
Click New in the Variables tab
page, and register three
variables shown on the right.
FSoE Slave CMD
#xE600:01
USINT
Group: Module 1(NX-SL3500).Output Data Set 1
Datatype : USINT
Count : 1
STO Command
#x6640:00
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
Error acknowledge
#x6632:00
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
-
-
BOOL
Safety Connection
Status
#x6010:01
BOOL
Group: Module 1(NX-SL3500).Output Data Set 1
Datatype : BOOL
Count : 16
FSoE Slave CRC_0
#xE600:03
UINT
FSoE Slave Conn_ID
#xE600:02
UINT
Group: Module 1(NX-SL3500).Output Data Set 1
Datatype : UINT
Count : 2
11
[Slot1(NX-SL3500)Output Data
Set2]
* Output Data Set2 is not used
and does not need to be set.
