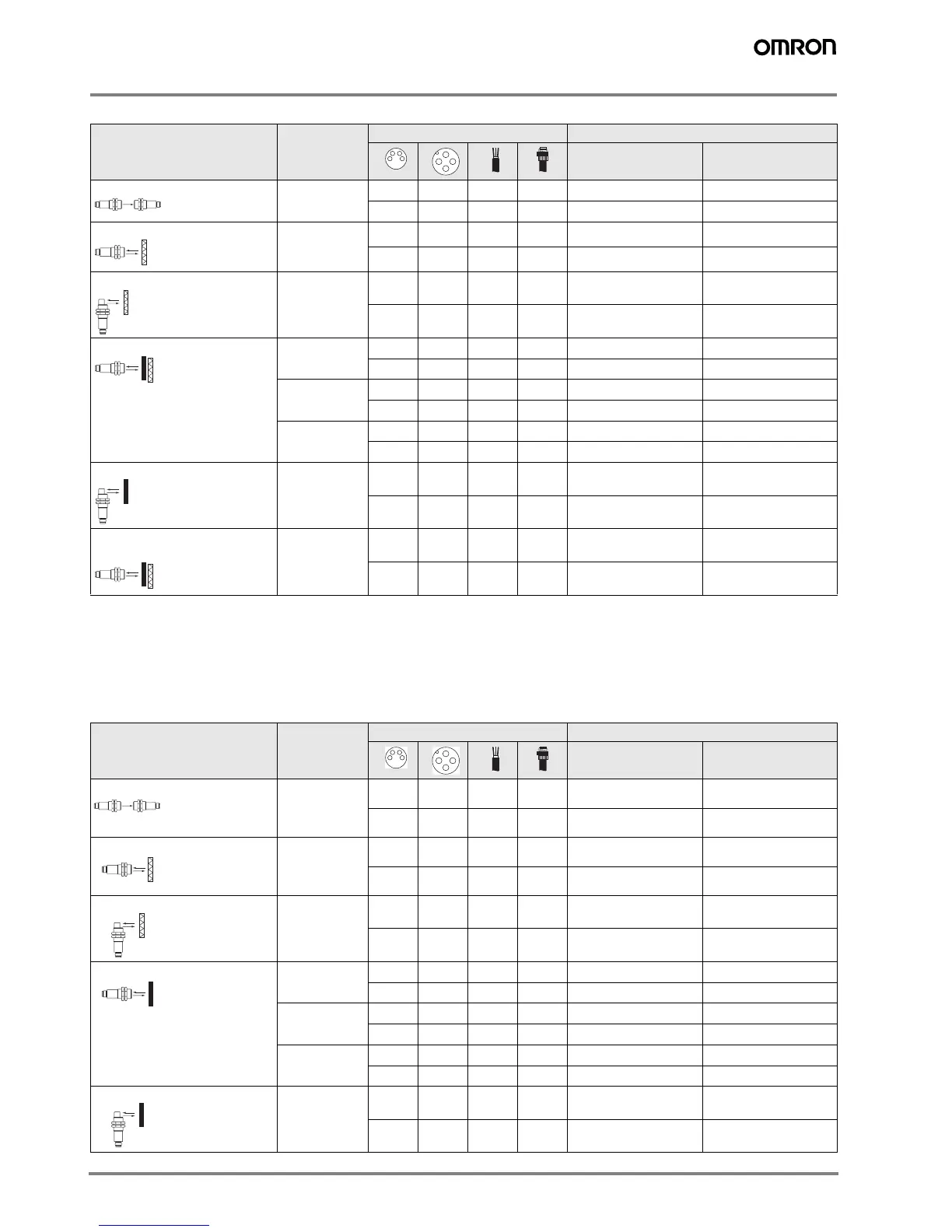

Omron E3F2 - Selection Guide

2 Standard Photoelectric Sensors
Selection Guide
Housing Material: Plastic
Note: Standard cable length is 2 m. Models provided with a 5 m long cable are available. When ordering, specify the cable length by adapting the length of the cable
(e.g. E3F2-R4B4-E 5M). For other cable length please contact your OMRON sales representative.
Housing material: Metal (Nickel plated brass)
Sensing method Sensing
distance
Connection method Order code
*1
*1.
Pre-wired connectors are available on request. Please contact your OMRON representative.
PNP output NPN output
Through-beam 7 m
––2 m–
E3F2-7B4 2M E3F2-7C4 2M
–  ––
E3F2-7B4-P1 E3F2-7C4-P1
Retro-reflective with M.S.R.
*2
*2.
Order reflector seperately. Models with reflector included are also available. Please contact your OMRON representative.
0.1 to 4 m
(adjustable)
*3
*3.
Measured with reflector E39-R1S
––2 m–
E3F2-R4B4-E 2M E3F2-R4C4-E 2M
–  ––
E3F2-R4B4-P1-E E3F2-R4C4-P1-E
Retro-reflective with M.S.R.
*2
0.1 to 2 m
*4
*4.
Measured with reflector E39-R1
––2 m–
E3F2-R2RB41-E 2M E3F2-R2RC41-E 2M
–  ––
E3F2-R2RB41-P1-E E3F2-R2RC41-P1-E
Diffuse-reflective 0.1 m (fixed,
wide-beam)
––2 m–
E3F2-DS10B4-N 2M E3F2-DS10C4-N 2M
–  ––
E3F2-DS10B4-P1 E3F2-DS10C4-P1
0.3 m
(adjustable)
––2 m–
E3F2-DS30B4 2M E3F2-DS30C4 2M
–  ––
E3F2-DS30B4-P1 E3F2-DS30C4-P1
1m
(adjustable)
––2 m–
E3F2-D1B4 2M E3F2-D1C4 2M
–  ––
E3F2-D1B4-P1 E3F2-D1C4-P1
Diffuse-reflective 0.3 m
(adjustable)
––2 m–
E3F2-DS30B41 2M E3F2-DS30C41 2M
–  ––
E3F2-DS30B41-P1 E3F2-DS30C41-P1
Diffuse reflective
(background suppression)
0.1 m (fixed)
––2 m–
E3F2-LS10B4 2M E3F2-LS10C4 2M
–  ––
E3F2-LS10B4-P1 E3F2-LS10C4-P1
Sensing method Sensing
distance
Connection method Order code
*1
PNP output NPN output
Through-beam 7 m
––2 m–
E3F2-7B4-M 2M E3F2-7C4-M 2M
–  ––
E3F2-7B4-M1-M E3F2-7C4-M1-M
Retro-reflective with M.S.R.
*2
0.1 to 4 m
(adjustable)
*3
––2 m–
E3F2-R4B4-M-E 2M E3F2-R4C4-M-E 2M
–  ––
E3F2-R4B4-M1-M-E E3F2-R4C4-M1-M-E
Retro-reflective with M.S.R.
*2
0.1 to 2 m
*4
––2 m–
E3F2-R2RB41-M-E 2M E3F2-R2RC41-M-E 2M
–  ––
E3F2-R2RB41-M1-M-E E3F2-R2RC41-M1-M-E
Diffuse-reflective 0.1 m (fixed,
wide-beam)
––2 m–
E3F2-DS10B4-M 2M E3F2-DS10C4-M 2M
–  ––
E3F2-DS10B4-M1-M E3F2-DS10C4-M1-M
0.3 m
(adjustable)
––2 m–
E3F2-DS30B4-M 2M E3F2-DS30C4-M 2M
–  ––
E3F2-DS30B4-M1-M E3F2-DS30C4-M1-M
1m
(adjustable)
––2 m–
E3F2-D1B4-M 2M E3F2-D1C4-M 2M
–  ––
E3F2-D1B4-M1-M E3F2-D1C4-M1-M
Diffuse-reflective 0.3 m
(adjustable)
––2 m–
E3F2-DS30B41-M 2M E3F2-DS30C41-M 2M
–  ––
E3F2-DS30B41-M1-M E3F2-DS30C41-M1-M
