E3Z-LSE3Z-LS

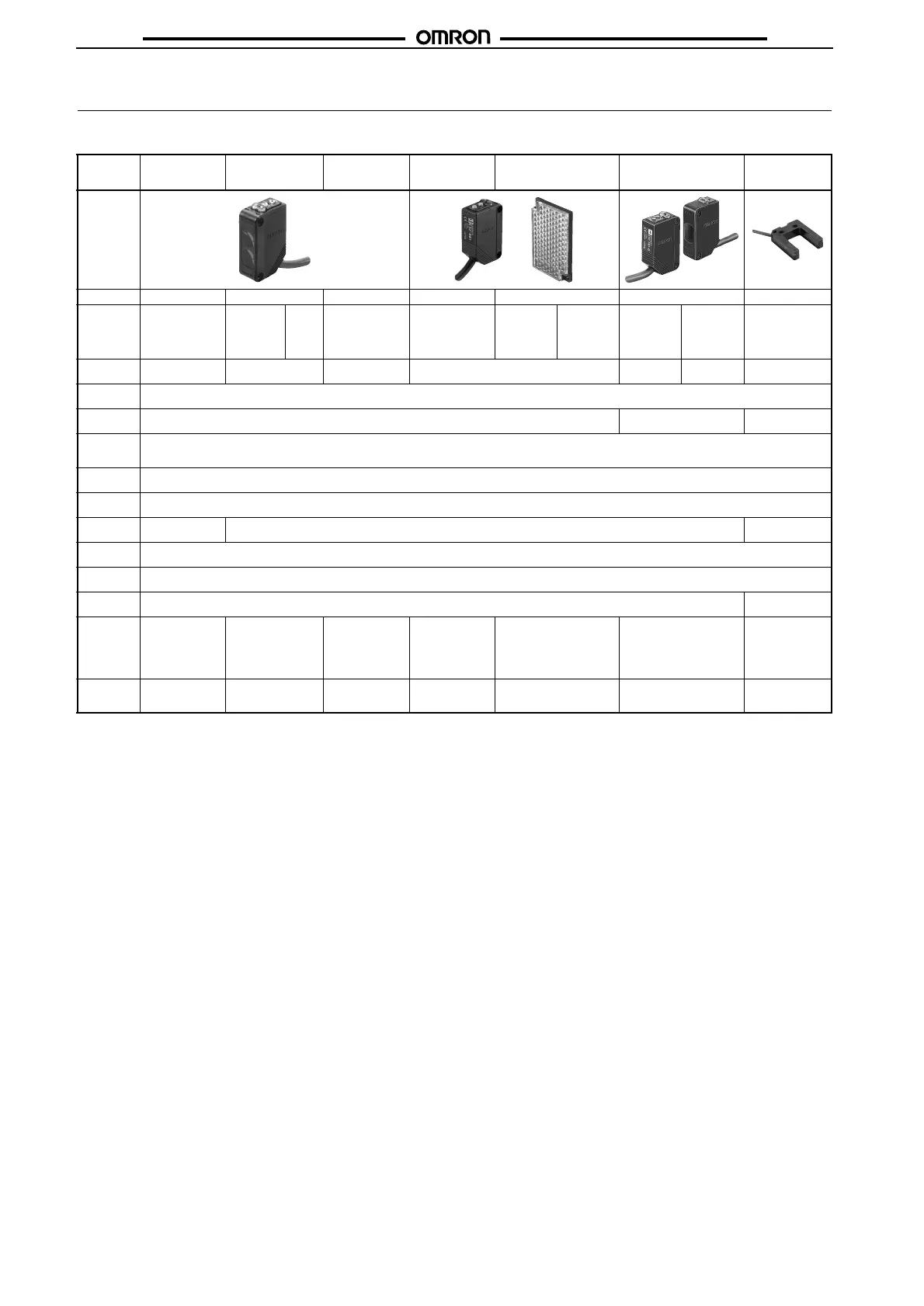

E3Z Series Lineup
■ Complete E3Z Series Lineup: Photoelectric Sensors for the 21st Century
Note: 1. The sensing distance is for when an E39-R1S Reflector is used. The minimum distance between the Reflector and Sensor is
given in parentheses.
2. For details, refer to the main Sensors catalog (X042) and individual catalogs.
Sensing
method
Item
Distance-
settable
(NEW)
Diffuse reflective Narrow-beam
diffuse reflective
Retroflective Retroflective for PET
bottles
Through-beam Grooved type
Appearance
Model E3Z-LS E3Z-D E3Z-L E3Z-R E3Z-B E3Z-T E3Z-G
Sensing dis-
tance
20 mm to set dis-
tance (BGS mode)
Set distance to
200 mm min.
(FGS mode)
5 to 100 mm
(wide vi-
sion)
1 m 90 ±30 mm 4 m (100 mm)
(See note 1.)
500 mm
(80 mm)
(See note 1.)
2 m
(500 mm)
(See note 1.)
15 m 10 m 25 mm
Light source
(wavelength)
Red LED (680 nm) Infrared LED
(860 nm)
Red LED (670 nm) Red LED (680 nm) Infrared LED
(860 nm)
Red LED
(700 nm)
Infrared LED
(940 nm)
Power sup-
ply voltage
12 to 24 VDC ±10%, ripple (p-p) 10% max.
Current con-
sumption
30 mA max. Emitter: 15 mA
Receiver: 20 mA
25 mA max.
Control out-
puts
Load power supply voltage 26.4 VDC max., load current 100 mA max. (residual voltage 1 V max.)
Open collector output (NPN or PNP depending on model)
Light-ON/Dark-ON switch selectable
Protective
circuits
Reverse polarity protection, output short-circuit protection, mutual interference prevention (Mutual interference prevention is not provided on E3Z-T.)
Response
time
Operation or reset: 1 ms max.
Sensitivity
adjustment
5-turn endless ad-
justor
Single-turn adjustor ---
Ambient
temperature
Operating: −25 to 55°C, Storage: −40 to 70°C (with no icing or condensation)
Ambient hu-
midity
Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Protective
structure
IEC 60529 IP67 IEC 60529 IP64
Connection
method
Pre-wired (stan-
dard length: 2 m/
0.5 m) or M8 con-
nector
Pre-wired (standard
length: 2 m/0.5 m),
M8 connector, or
M12 connector relay
(0.3 m)
Pre-wired (stan-
dard length: 2 m/
0.5 m) or M8 con-
nector
Pre-wired (stan-
dard length: 2 m/
0.5 m), M8 con-
nector, or M12
connector relay
(0.3 m)
Pre-wired (standard length:
2 m/0.5 m) or M8 connector
Pre-wired (standard length:
2 m/0.5 m), M8 connector,
or M12 connector relay (0.3
m, infrared type only)
Pre-wired (stan-
dard length: 2 m/
0.5 m) or M8 con-
nector relay
(0.3 m)
Datasheet
catalog num-
ber
E327-01 E308-01A E311-01 E308-01A E316-01 Infrared type: E319-01A
Red type: E308-01A
E320-01
