9
E3Z-LSE3Z-LS

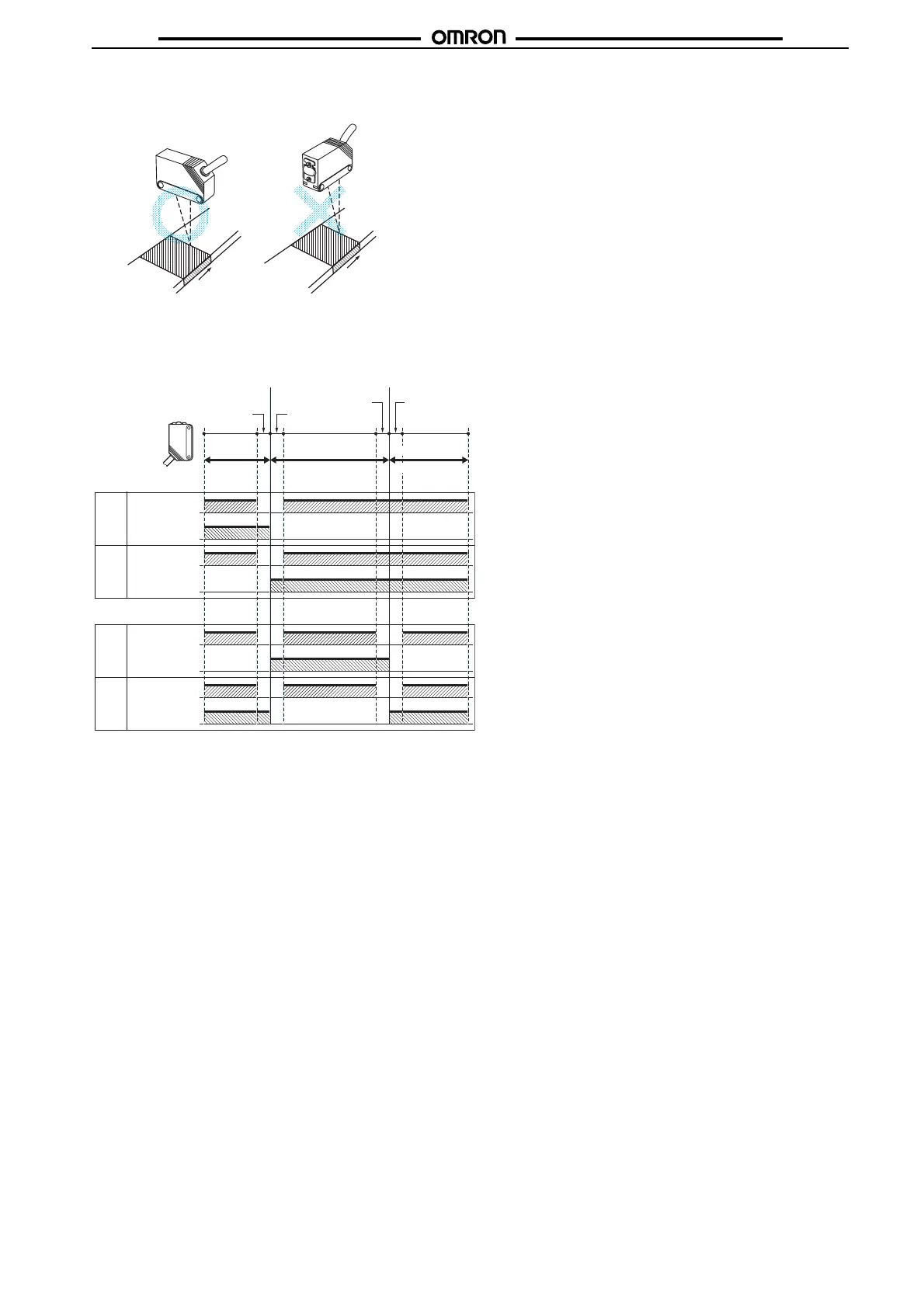

Install the Sensor as shown in the following illustration if each
sensing object greatly differs in color or material.
Adjustments
Indicator Operation
Note: 1. If the stability indicator is lit, the detection/no detection
status is stable within the rated ambient operating tem-
perature
(−25 to 55°C).
2. The VERY FAR region is supported only for FGS. The
incident light threshold is fixed and cannot be set. The
distance to the incident light threshold depends on the
color and gloss of the sensing object’s surface.
Inspection and Maintenance
Cleaning
Never use paint thinners or other organic solvents to clean the
surface of the product.
Moving direction
Moving direction
Distance threshold
(settable)
Incident light level threshold
(not settable)
Unstable
NEAR
Stable NEAR
BGS
Stability
(green)
Operation
(orange)
ON
OFF
Not sufficient incident
light margin
Slightly insufficient
incident light
Very insufficient
incident light
Unstable FAR
Stable FAR
NEAR region
VERY NEAR
region
FAR region
L/ON
D/ON
FGS
Stability
(green)
Operation
(orange)
L/ON
D/ON
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Stability
(green)
Operation
(orange)
Stability
(green)
Operation
(orange)
(for FGS only)
