6 Programless Communications
E5@C Digital Temperature Controllers Communications Manual (H175)
6-5 Connecting to CJ-series PLCs
6
6-5-4 E5@C Controller Setup

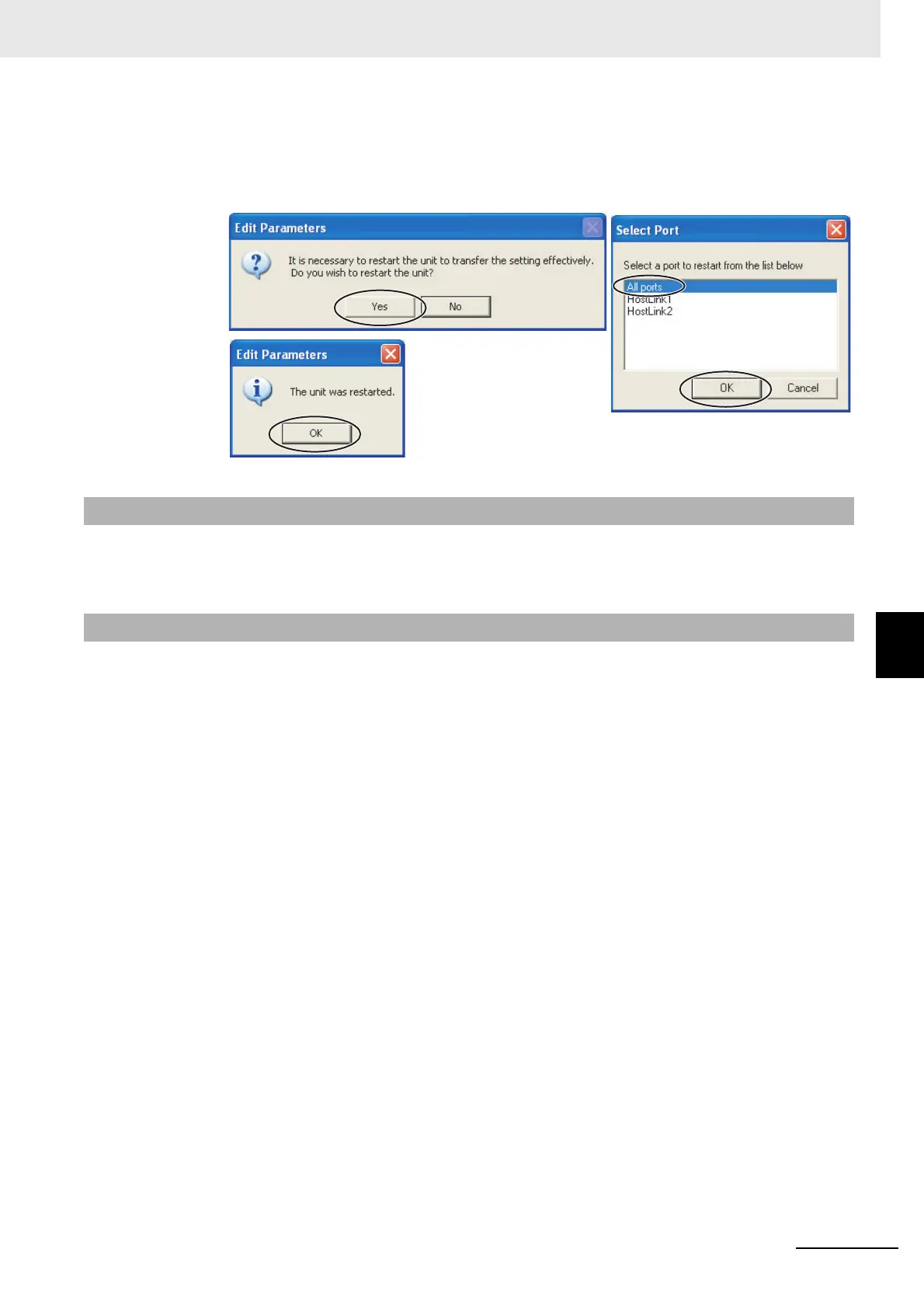

Click the Yes Button to restart the Unit. Select All ports and then click the OK Button.
A dialog box will be displayed when the Unit has been restarted. Click the OK Button. This
completes the PLC setup procedure. You will use the CX-Programmer to check operation,
so leave it online.
Set up programless communications. Perform the procedure that is given in 6-4-4 E5 @ C Controller
Setup.
Perform the procedure that is given in 6-4-5 Checking Operation.
6-5-4 E5@C Controller Setup
6-5-5 Checking Operation

Omron E5AC Specifications

General

Mounting Type	Panel Mount
Sampling Period	50 ms
Protection structure	IP66 (front panel)
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Control Output	Relay, voltage, current
Dimensions	96 x 96 mm
Display Type	LCD
Number of Displays	2
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
