6 Programless Communications
E5@C Digital Temperature Controllers Communications Manual (H175)
6-8 Connecting to MELSEC Q-series PLCs
6
6-8-5 Checking Operation
The SP and RUN/STOP status of the E5@C Controllers will be changed to check operation. Make sure
that this will not create any problems in the controlled system.
 Checking E5CC Monitor Values

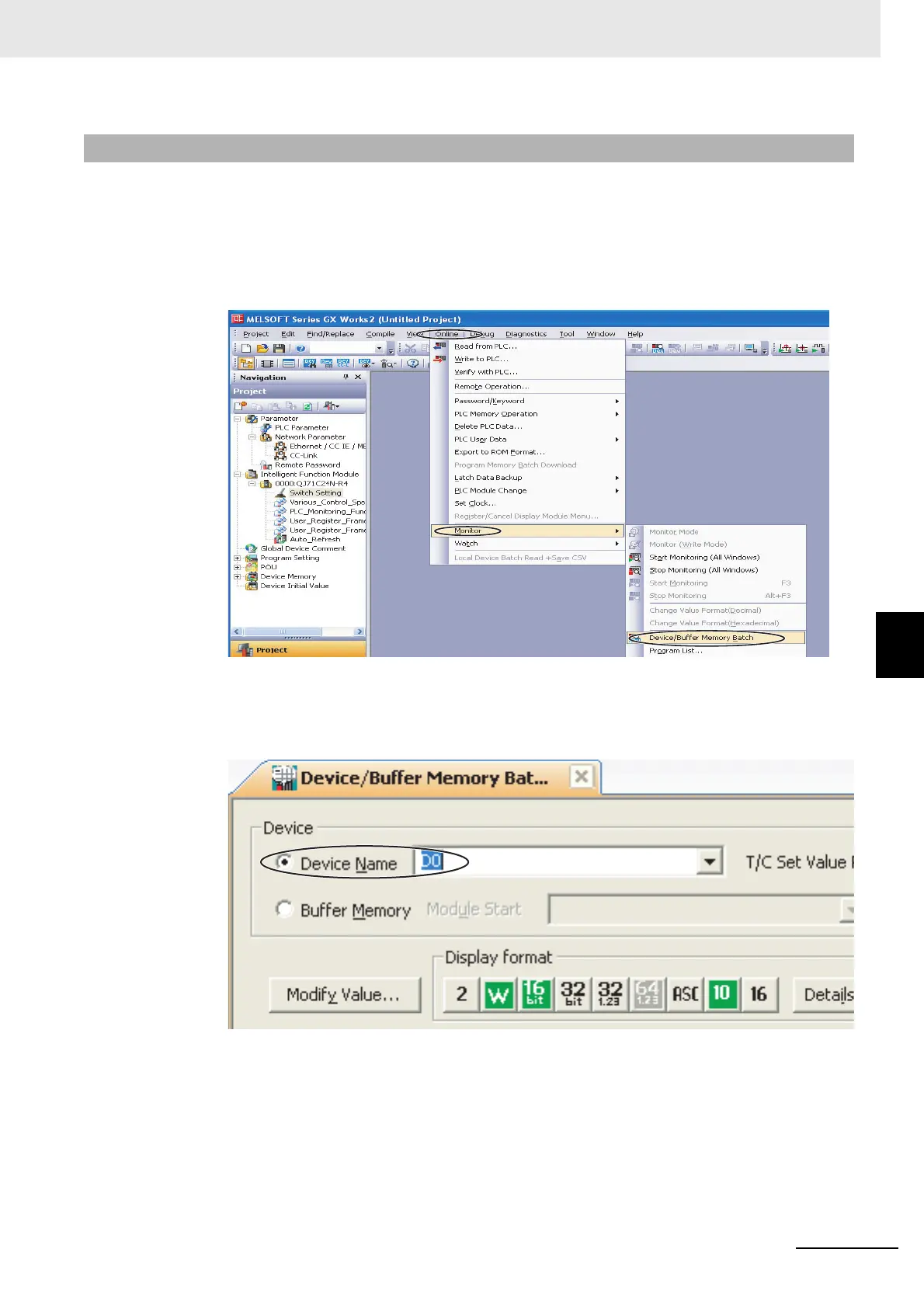

(1) We will display PLC memory in a dialog box.
Select Online
− Monitor − Device/Buffer Memory Batch Monitor.
(2) We will monitor PLC memory in a dialog box.
Enter D0 for in the Device Name Box and press the Enter Key on the computer’s keyboard.
Monitoring of D0 will be started.
6-8-5 Checking Operation

Omron E5AC Specifications

General

Mounting Type	Panel Mount
Sampling Period	50 ms
Protection structure	IP66 (front panel)
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Control Output	Relay, voltage, current
Dimensions	96 x 96 mm
Display Type	LCD
Number of Displays	2
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
