Omron E5CC Communications Manual

6 Programless Communications
6 - 70
E5@C Digital Temperature Controllers Communications Manual (H175)
Setting Up Communications for the Special Communication Adapter

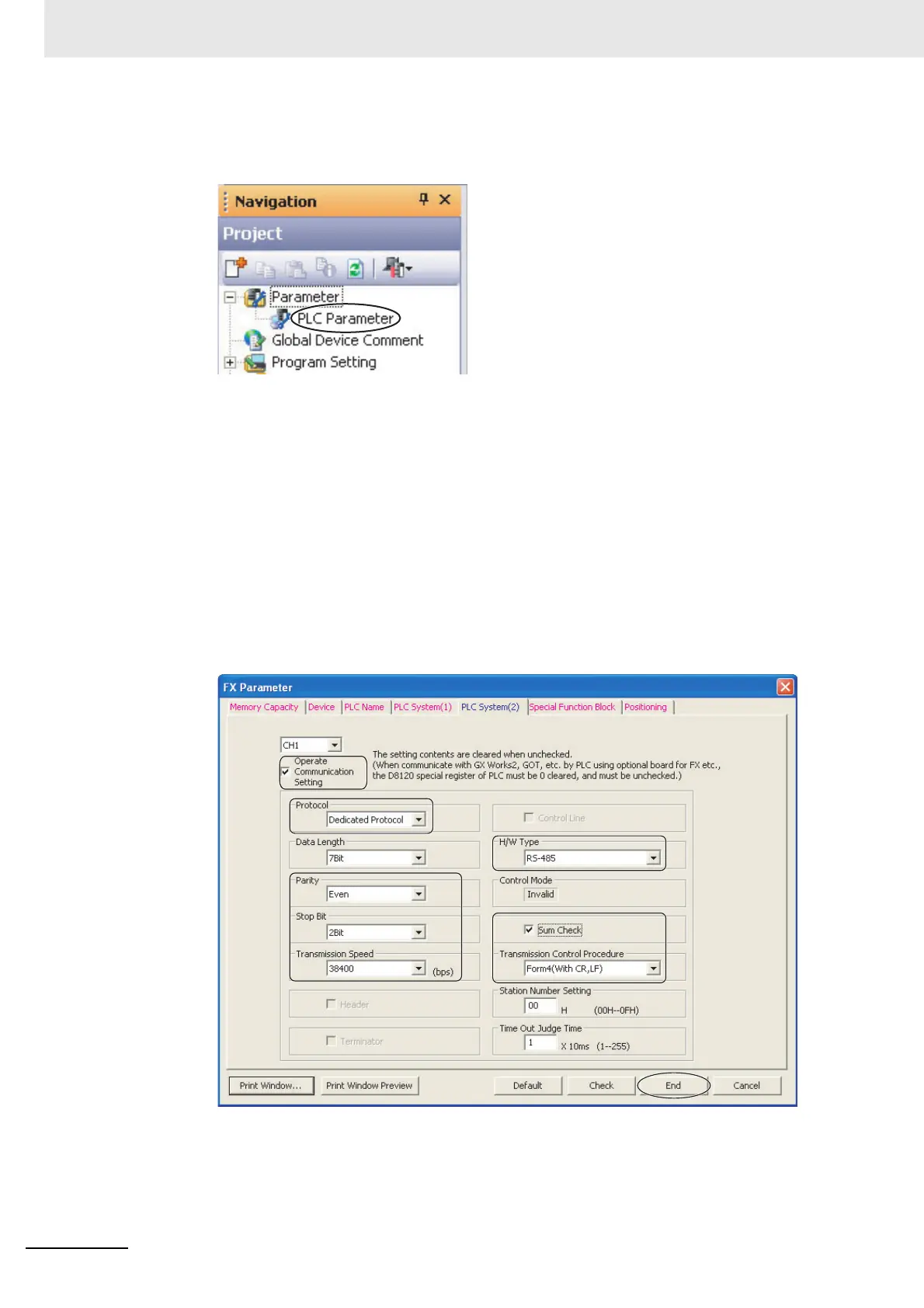

(1) Double-click PC Parameter. The FX Parameter Setting Dialog Box will be displayed.
(2) We will change the communications settings for CH1.
Click the PC System Setup (2) Tab, change the following settings, and click the Finish
Setup Button. Use the defaults settings for the other parameters.
• Operate Communication Setting: Selected.
• Protocol: Dedicated Protocol
• Parity: Even
• Stop Bit: 2Bit
• Transmission Speed: 38,400
• H/W Type: RS-485
• Sum Check: Selected.
• Transmission Control Procedure: Form4 (With CR, LF)
Note: If you change the station number setting, refer to 6-2-7 Communications Node Number

Omron E5CC Specifications

General

Number of Display Digits	4 digits
Number of Control Outputs	1
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage, Analog current
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Display Type	LCD
Size	48 x 48 mm
Mounting Method	Panel mount
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
Protection Rating	IP66
