Temperature Controllers E5CSV 3
Installation
• All models in the E5CSV Series conform to DIN 43700 standards.
• The recommended panel thickness is 1 to 4 mm.
• Be sure to mount the E5CSV horizontally.
Mounting the E5CSV
1. For waterproof mounting, waterproof packing must be installed on the Controller. Waterproofing is not possible when group mounting several
Controllers.
2. Insert the E5CSV into the mounting hole in the panel.
3. Push the adapter from the terminals up to the panel, and temporarily fasten the E5CSV.
4. Tighten the two fastening screws on the adapter. Alternately tighten the two screws little by little to maintain a balance. Tighten the screws to a
torque of 0.29 to 0.39 N·m.

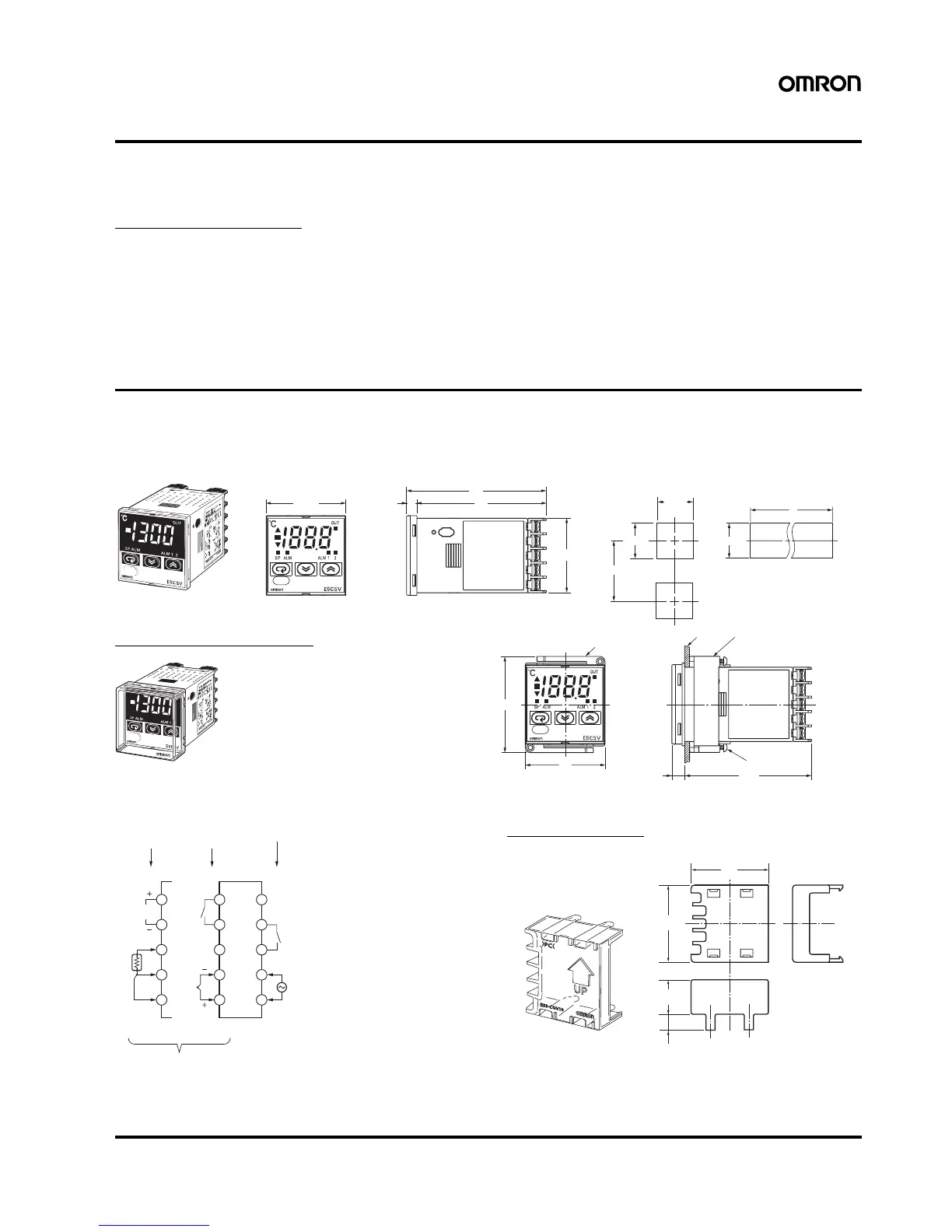

Dimensions
Note: All units are in millimeters unless otherwise indicated.
■ Controller
Terminal Cover
Note: 1. The voltage output (12 VDC, 21 mA) is not electrically isolated from the internal circuits. When using a grounding thermocouple, do not
connect output terminals 1 or 2 to ground. Otherwise, unwanted current paths will cause measurement errors.
2. Models with 100 to 240 VAC and 24 VAC/VDC are separate. Models using 24 VDC have no polarity.
Panel Cutout Dimensions
44.8×44.8
84
786
48×48
60 min.
L = (48 × N−2.5)
+1
0
Mounting side-by-side
(group mounting of N Controllers)
45
+0.6
0
45
+0.6
0
45
+0.6
0
L
Tightening
screws
48
76.5
7.5
Adapter for flush mounting
Panel
Y92F-30 Adapter for flush mounting
58
Note: 1. The recommended panel thickness is 1 to 4 mm.
2. Group mounting is possible in one direction only.
Note: Terminals cannot be removed.
Hard Protective Cover
The Y92A-48B Protective Cover (hard type) is
available for the following applications.
• To protect the set from dust and dirt.
• To prevent the panel from being accidentally
touched causing displacement of set values.
• To provide effective protection against water
droplets.
°C
92A-48B
