8 Temperature Controllers E5CSV

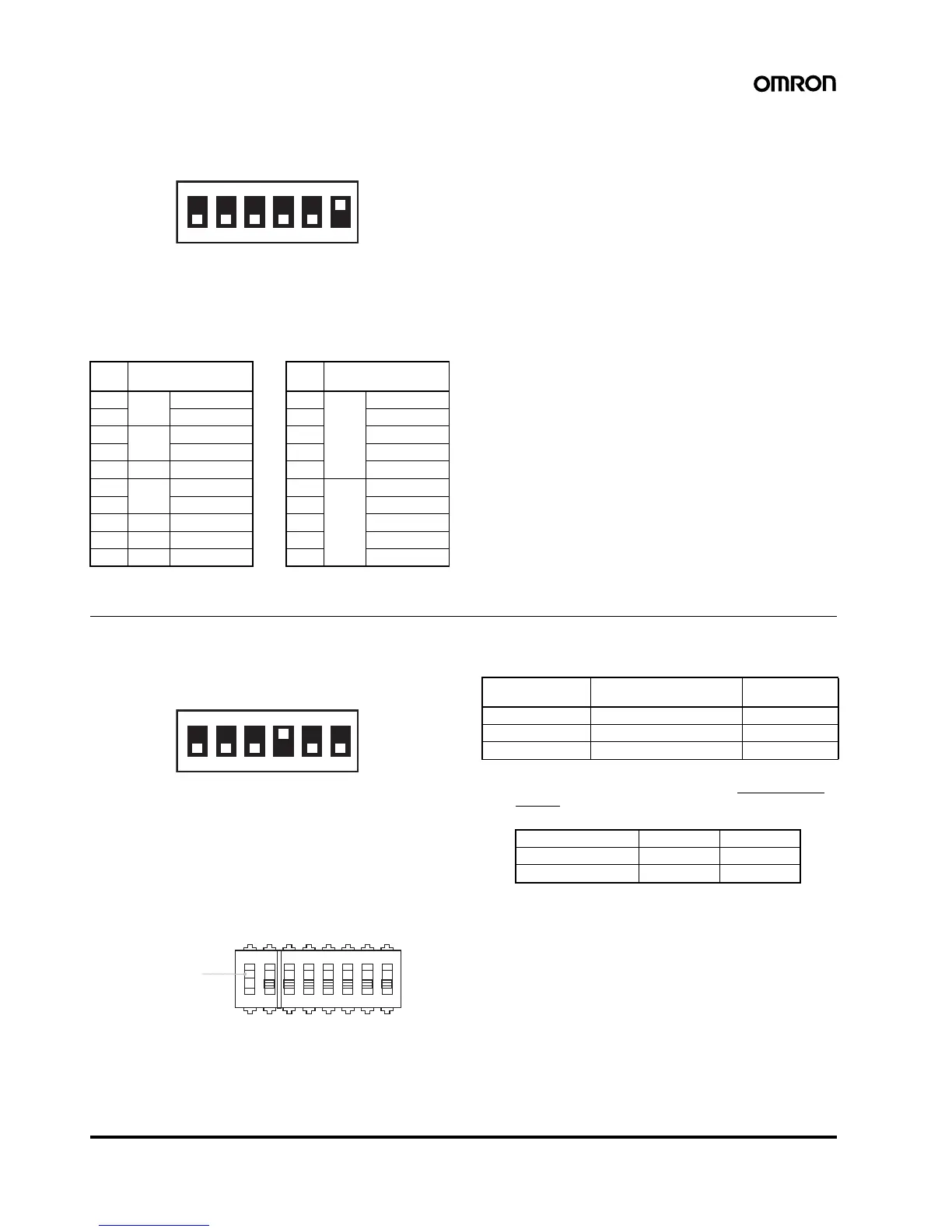

(2) Using the E5CSV in Devices for Fahrenheit-scale Users
(Displaying in ° F)
Turn ON switch 6 to display temperatures in ° F.
Temperature Range for ° F
The temperature is set to ° F using the same temperature range switch as ° C.
Note: The control range for multi-input (thermocouple/platinum resistance thermometer) models is -40 to +40° F of each temperature range.
The previous name J-DIN has been changed to L in accordance with revisions to DIN standards.
(3) Setting Input Shift
Turn ON switch 4, and after turning ON the power, press the Mode
Key until h0 (indicates input shift of 0) is displayed. Press the Up and
Down Keys to set the shift value.
Shift Example
Note: When control mode switch 4 is turned OFF (no input shift
display), the input shift is not displayed but the shift value is
enabled. To disable input shift, set the input shift value to h0.
The shift range depends on the setting unit.
5. Protect Switch
When the protect switch is ON, Up Key and Down Key operations are prohibited to prevent setting mistakes.
654321
ON
Multi-input (Thermocouple/
Platinum Resistance
Thermometer)
Control mode switch 5: OFF
Multi-input (Thermocouple/
Platinum Resistance
Thermometer)
Control mode switch 5: ON
Set-
ting
° FSet-
ting
° F
0 K -99 to 1999 0 Pt100 -99 to 1500
1 0.0 to 199.9 1 0.0 to 199.9
2 J -99 to 1500 2 -99 to 99
3 0.0 to 199.9 3 0 to 200
4 L -99 to 1500 4 0 to 400
5 T -99 to 700 5 JPt100 -99 to 900
6 0.0 to 199.9 6 0.0 to 199.9
7 U -99 to 700 7 -99 to 99
8 N -99 to 1999 8 0 to 200
9 R 0 to 1999 9 0 to 400
654321
ON
Input shift display Measured temperature Temperature
display
h0 (no shift) 100° C 100° C
h9 (+9° C shift) 100° C 109° C
l9 (-9° C shift) 100° C91° C
Setting unit 1° C0.1° C
Compensation range -99 to +99° C -9.9 to +9.9° C
Input shift display L99 to H99 L9.9 to H9.9
P
ON
X123456
Protect Switch
