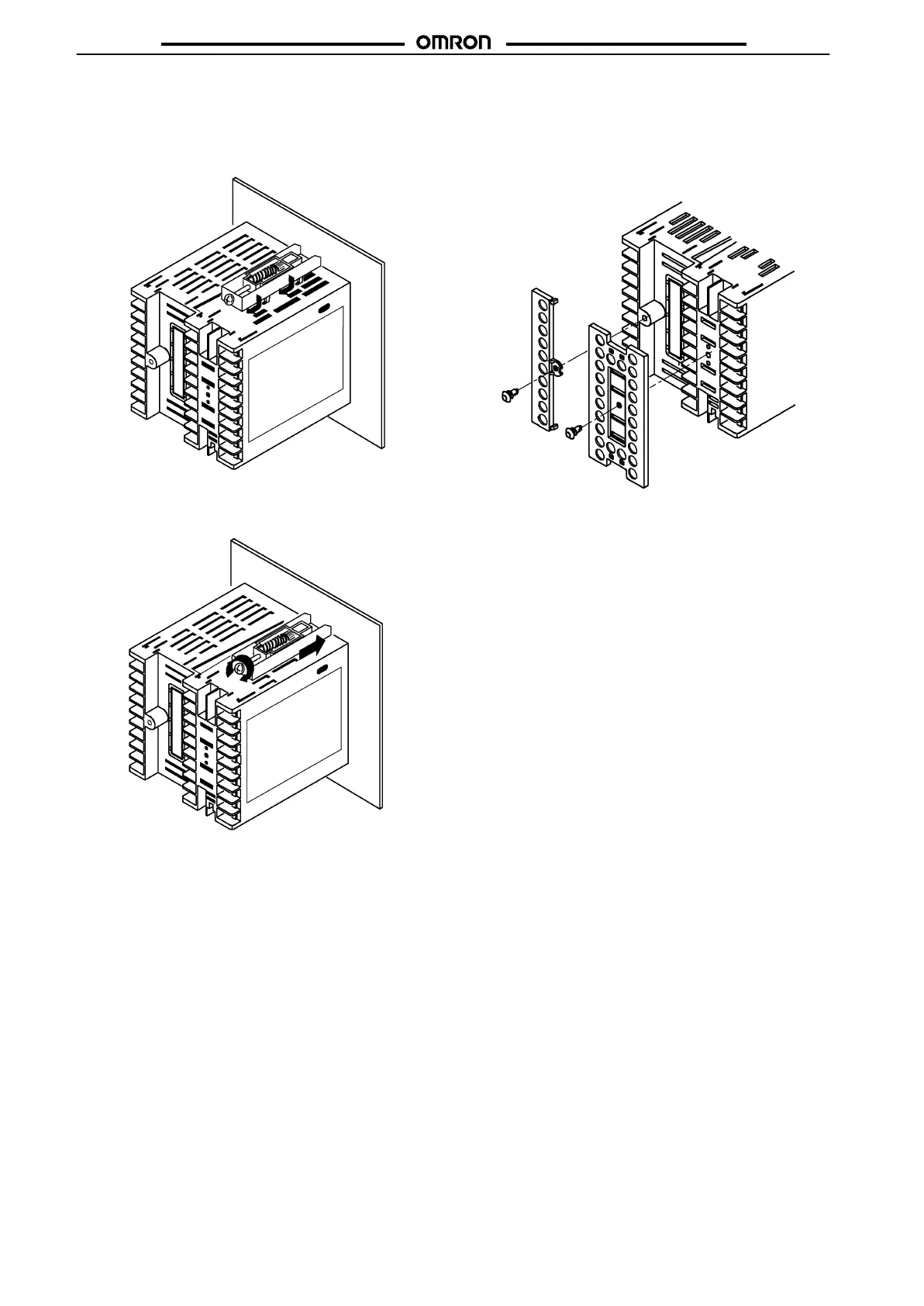

Mounting
1. Insert the E5AK-T Controller into the mounting hole in the
panel.
2. Fit the mounting bracket (accessory) into the fixing slots on
the
top and bottom of the rear case.
3. Tighten the mounting bracket screws alternately a little at a
time
until the ratchet starts to slide.
Setting Up the T erminal Cover
Fasten the T erminal Covers (E53-COV0809) to protect terminals.
E5AK-VV2-500 Controller is provided with T erminal Covers.
Use E53-COV09 for terminals 1 to 10, and E53-COV08 for termi-
nals
11 to 33.
Fasten the T erminal Covers as follows by using the snap pins.
E5AK-T
E53-COV0809
