Omron E5EK-T User Manual

E5jK-T
E5jK-T
15
E5EK
Draw-out

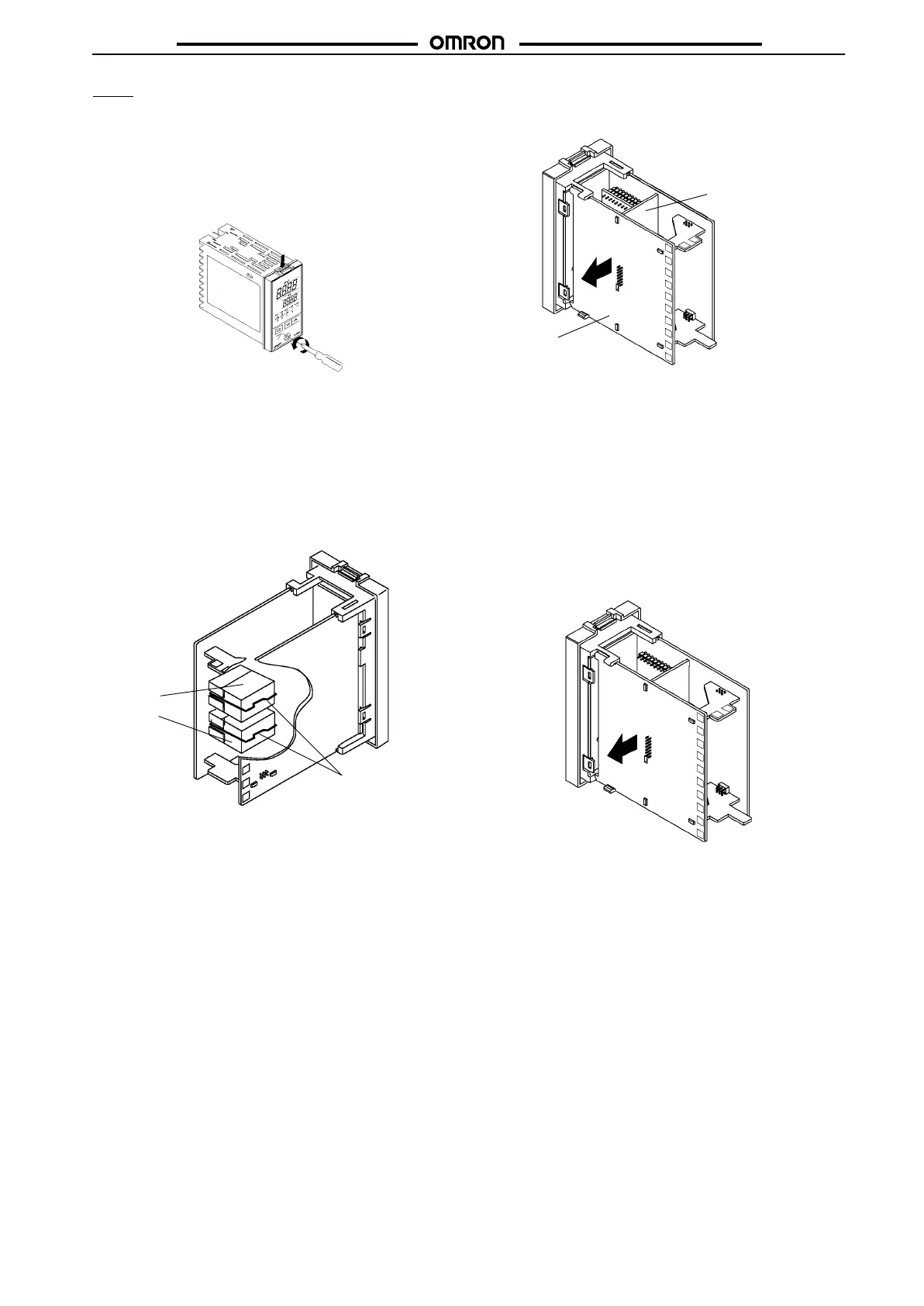

When drawing out the internal mechanism from the housing, pre-
pare
a Phillips screwdriver matched to the size of the screw on the
lower part of the front panel.
1. Press down on the hook on the top of the front panel, and turn
the Phillips screwdriver to the left to loosen the screw on the
lower part of the front panel.
2. Draw out the internal mechanism towards you holding both
sides
of the front panel.
Setting Up the Output Unit
• Before Setup
Check the type of the Option Unit you are about to set up.
• Procedure
1. Check
the positions of the sockets you are about to insert the
Output Units into as shown in the following diagram.
OUT2
OUT1
Bracket
2. Remove the power board in the direction of the arrow in the
figure below. The power board is connected to the control
board
by a connector at the center of the board.
Power
board
Control
board
3. Insert the Output Unit for control output 1 into the socket
“OUT1” and the Output Unit for control output 2 into the
socket “OUT2.”
4. Fasten the Output Units with the bracket (accessory).
5.
Mount the power board at its original position.
Setting Up the Option Unit
• Before Setup
Check the type of the Option Unit you are about to set up.
• Procedure
1. Remove the power board and Option Boards in the order
shown
in the following diagram.
