Control Output
Terminal

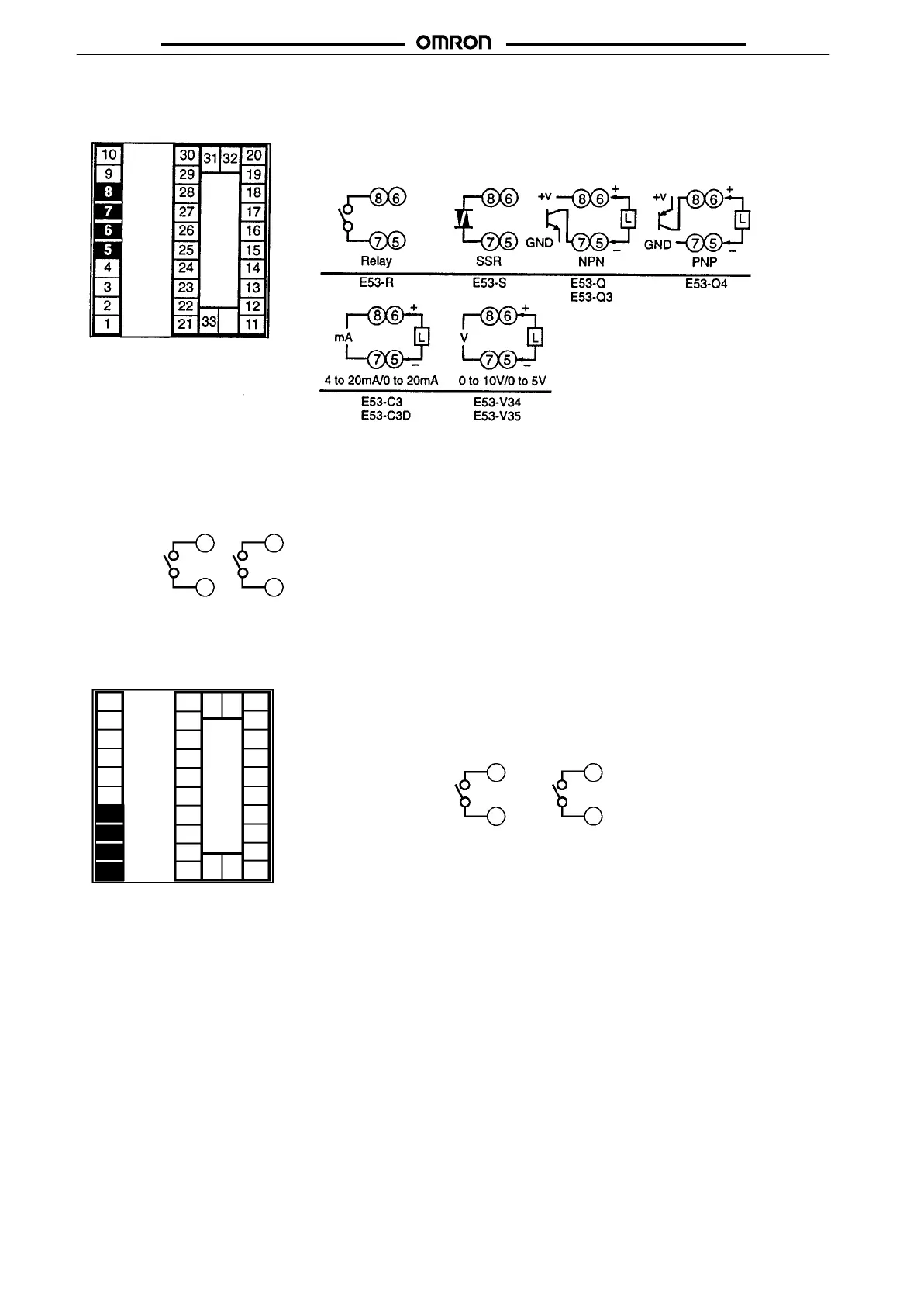

numbers 7 and 8 are for control output 1 (OUT1), and terminal numbers 5 and 6 are for control output 2 (OUT2). The following dia -
grams
show the available Output Units and their internal equalizing circuits.
With E53-V jj Output Units, approx. 2 V is output for one second after the power is interrupted.
With E5AK-TPRR2 Controllers, the relay output (1 A at 250 V AC) is fixed.
When
replacing the Output Unit, use the E53-R. The following diagrams show the relationship between terminals and open/close relay set -
tings.
8
7
Open
6
5
Close
Auxiliary Output
Terminal numbers 3 and 4 are for auxiliary output 1 (SUB1) and terminal numbers 1 and 2 are for auxiliary output 2 (SUB2). The following
diagrams show the internal equalizing circuits for the auxiliary outputs:
10
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
31 32
33
4
3
2
1
Auxiliary
output 1
Auxiliary
output 2
Output specifications are as follows:
SPST -NO, 3 A at 250 V AC
