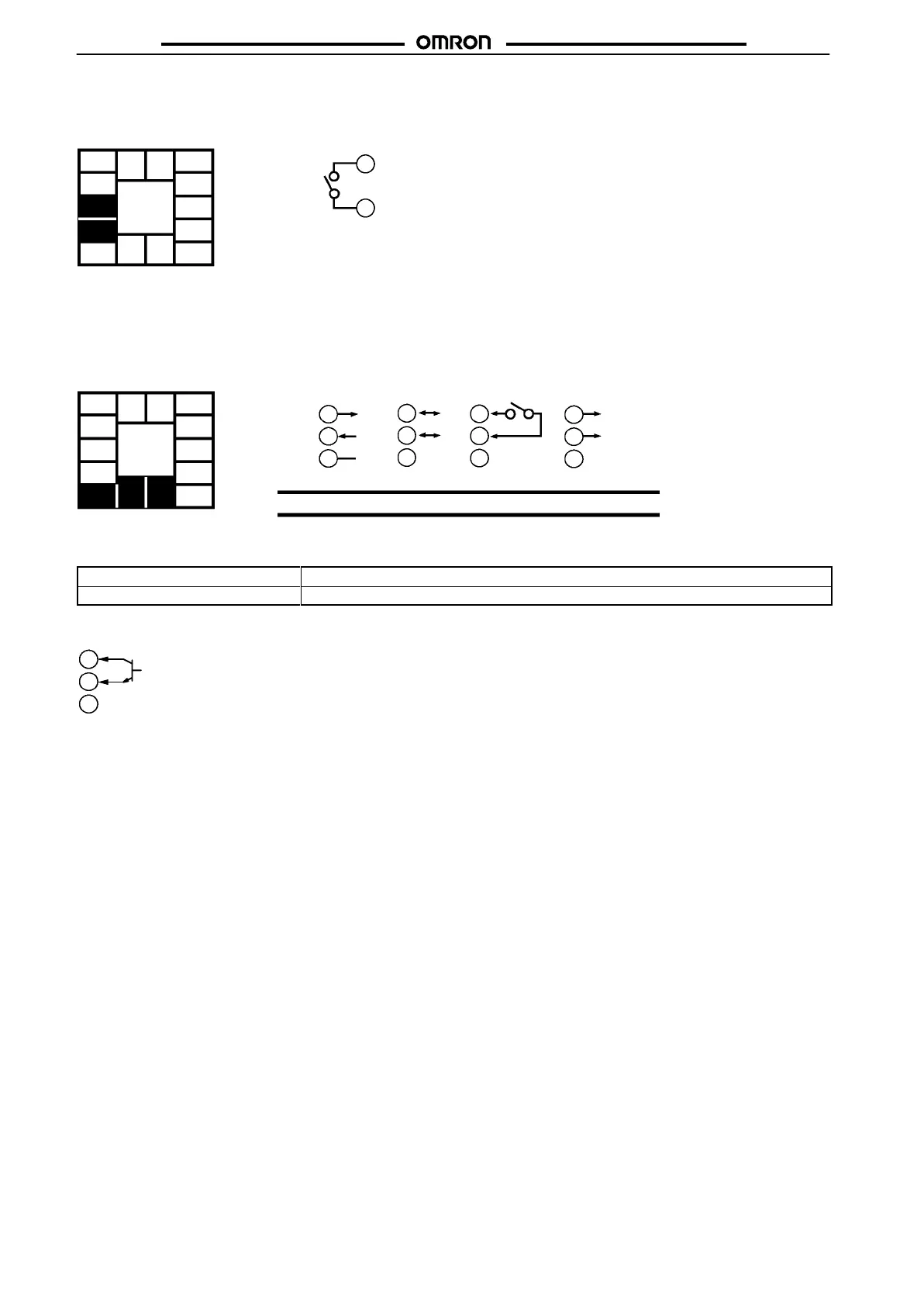

Auxiliary Output 1
T
erminal numbers 2 and 3 are for auxiliary output 1 (SUB1).
The internal equalizing circuit for auxiliary output 1 is as follows:
5
4
3
2
1
10
9
8
7
6
13 14
11 12
3
2
Relay specifications are as follows:
SPST
-NO, 250 VAC, 1 A
Option
T
erminal numbers 1, 13, and 14 are valid only when the Option Unit is set in the Controller
.
The following four connections are possible depending on the model of the Option Unit.
5
4
3
2
1
10
9
8
7
6
13 14
11 12
13
14
1
13
14
1
13
14
1
13
14
1
SD
RD
SG
A
B
+
–
4 to 20mA
E53-CK01
RS-232C
E53-CK03
RS-485
E53-CKB E53-CKF
Event input Transfer output
Use
event inputs under the following conditions:
Contact input
ON: 1 kΩ
max., OFF: 100 k
Ω
min.
No-contact input
ON: residual voltage 1.5 V max., OFF: leakage current 0.1 mA max.
The polarity for no-contact input is as follows:
13
14
1
+
–
T
ransfer output specifications are as follows:
4 to 20 mA DC, load: 500
Ω
max., resolution approx. 2,600
