Omron E5ZN Series User Manual

3

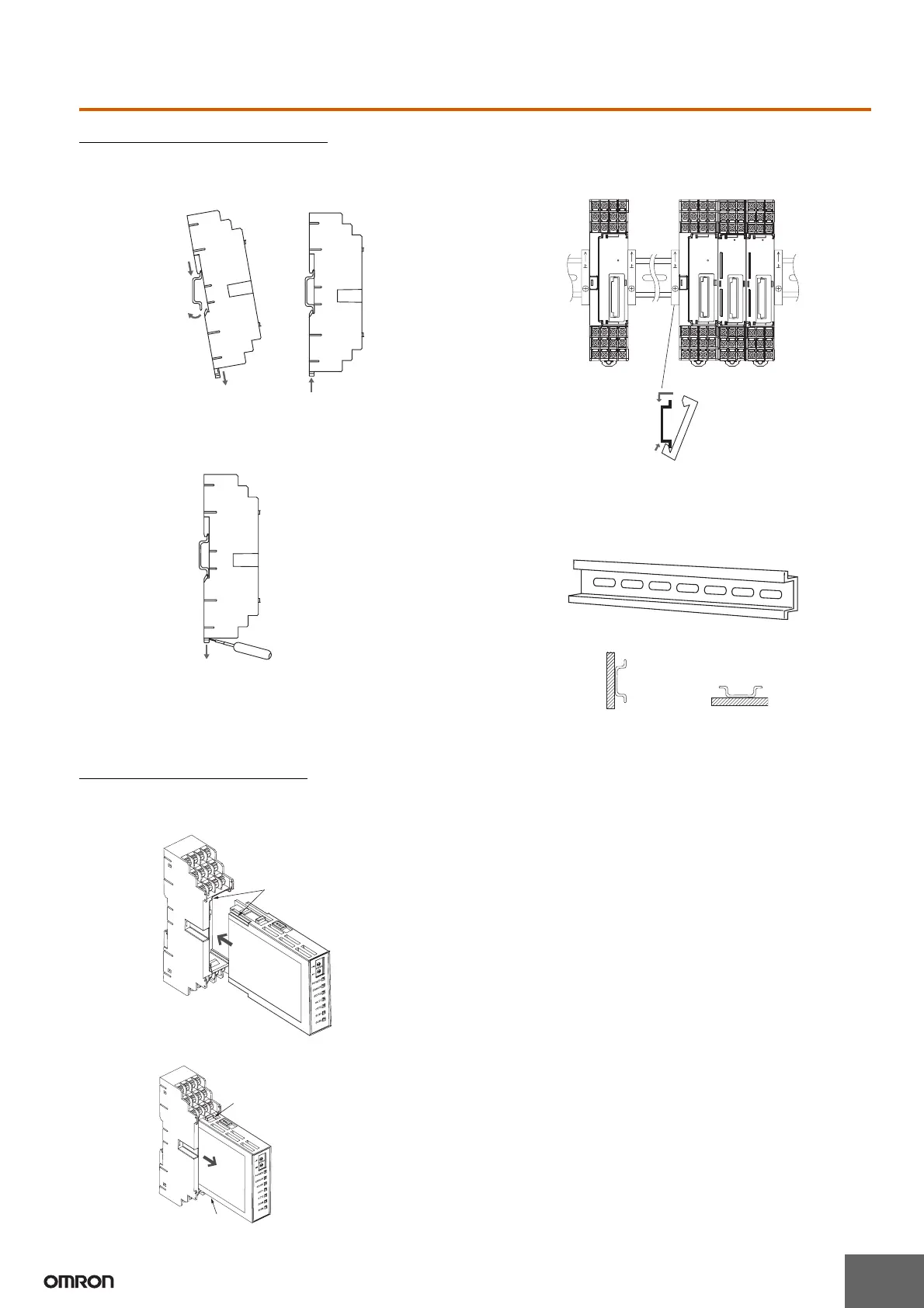

Mounting to the DIN Track
Mounting
Catch the hook located on the top of the Controller onto the DIN
Track and press the Controller until it locks into place.
Removing the Controller
Pull down on the hooks with a flat-blade screwdriver and lift up on the
Controller.
Mounting the End Plate
Always attach End Plates on both ends of the Controller.
Mounting Bracket
Mount the E5ZN on a DIN Track. Mount the DIN Track using screws
in at least three places in the control panel.
• DIN Track PFP-50N (50 cm)
PFP-100N (100 cm)
Install the DIN Track vertically to the ground.
Mounting the Controller
Mounting Procedure
Firmly insert the Controller following the guides on the Controller and Terminal Unit.
Removing the Controller
(1) Lower the hooks.
(2) Catch the
upper
hook
onto the
DIN
Tra ck .
(3) Press in
on the
Controller.
(4) Make sure the
Controller is
locked into place.
Flat-blade screwdriver
Mounting one Controller Side-by-side Mounting
(1)
(2)
Vertical
Correct
Horizontal
Incorrect
Push in the Controller following the guides
until it clicks into place.
Pull out the Controller while pushing
the hook on the end of the Controller.
(1)
(2)
(1)
