Omron fh series Construction Guide

31

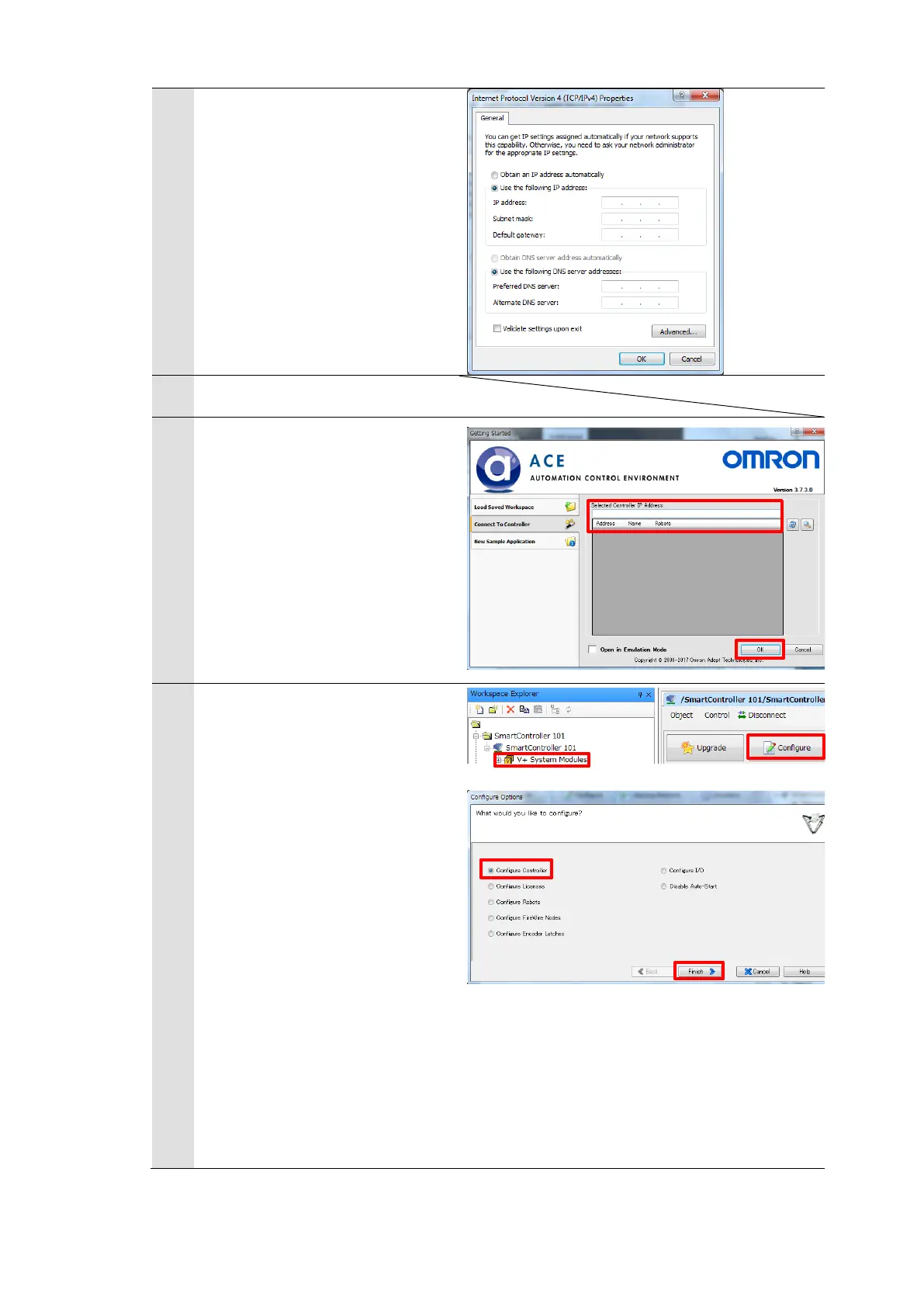

The dialog shown on the right
will be displayed, set the IP
address and the subnet mask
for the PC so that the IP
address and network part of
the referred robot controller are
the same but the host part is
different.
4
Launch ACE.
5
Enter the IP address of the
robot controller and click [OK].
6
Select “SmartController” in the
Workspace Explorer and click
[Configure].
The right dialog will be
displayed, select “Configure
Controller” and click [Finish].

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
