Omron fh series Construction Guide

32

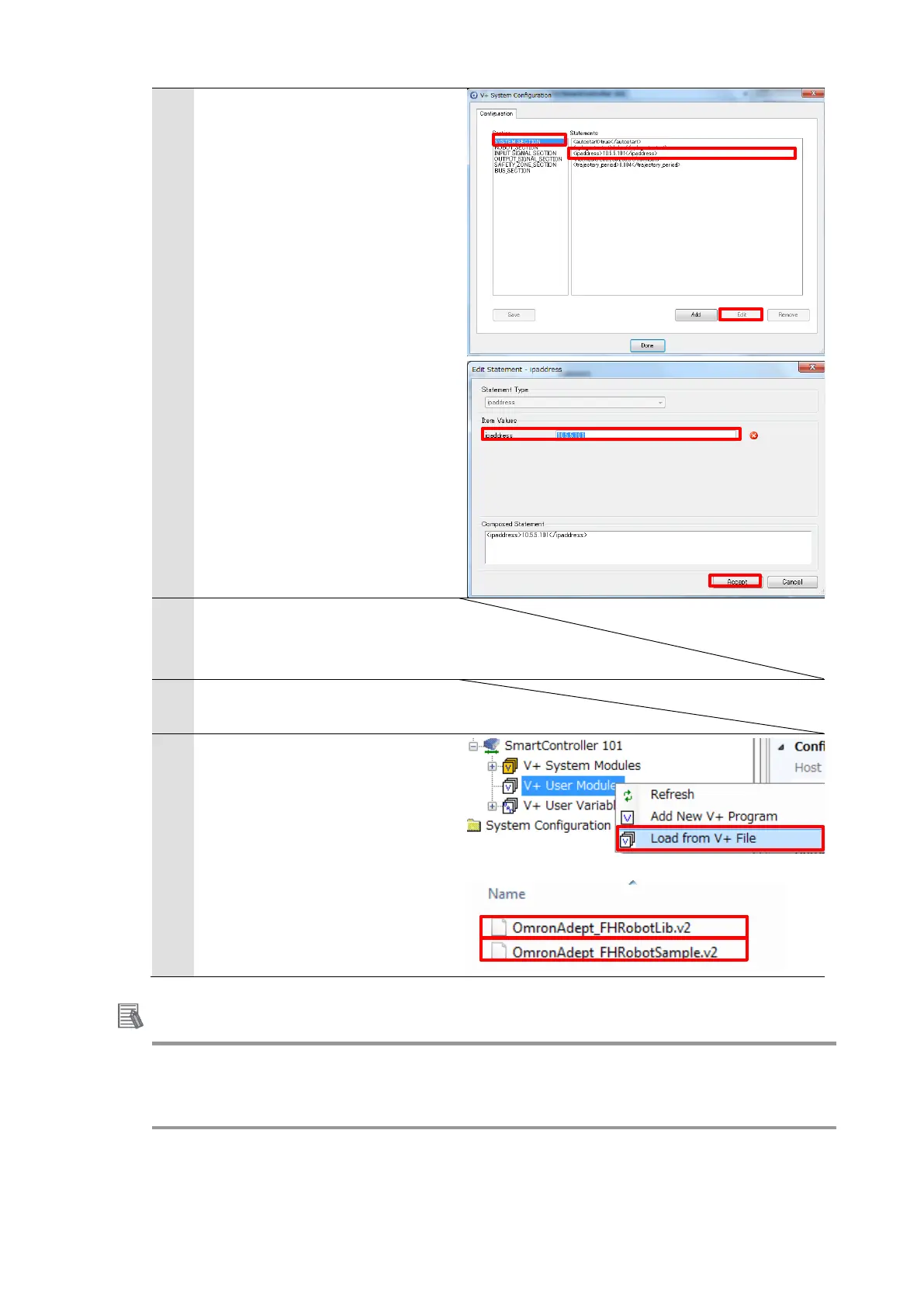

The right dialog will be
displayed, select “SYSTEM
SECTION” in the “Section” area
and “ipaddress” in the
“Statements” area and click
[Edit].
The right dialog will be
displayed, change the
ipaddress and click [Accept].
Set the IP address not to
overlap with other devices.
7
Change the IP address of the
PC again based on the changed
one for the robot controller.
8
Reconnect to the robot
controller.
9
Right-click “V+ User Module” in
the Workspace Explorer and
select “Load from V+ File”.
Select a robot program in the
folder outputted by using the
data set output tool for the
robot vision.
Additional Information
This document does not provide operation, installation, and wiring methods for each
device.
For details, refer to manuals noted in Chapter 8 Reference Information.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
