6.5. Executing Measurements on Vision Sensor

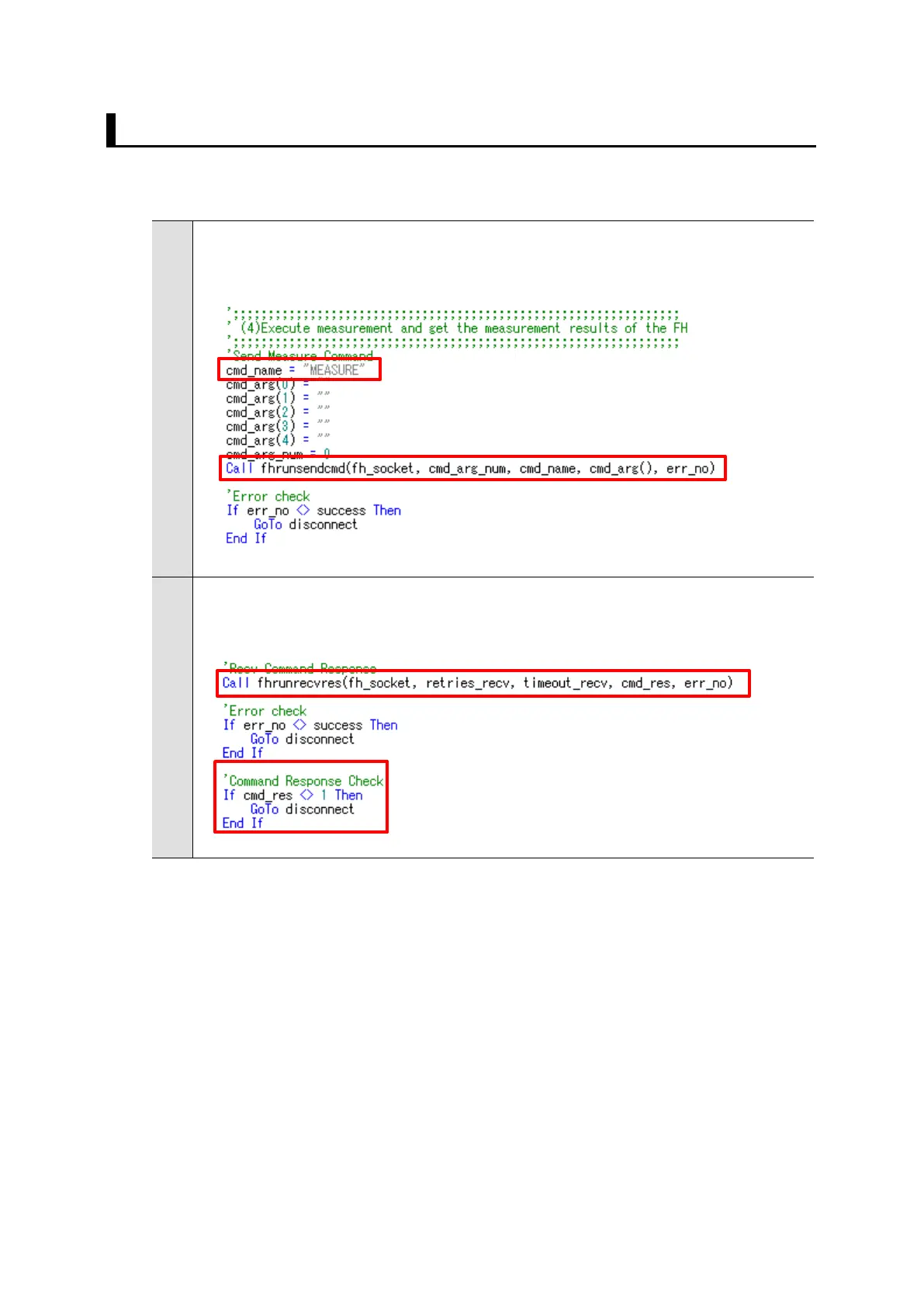

Send the measurement command to the Vision Sensor and receives a response to
that command.
1
To send the measurement command to the Vision Sensor, set the
command name to "MEASURE" and execute "
fhrunsendcmd
".
2
To receive the response to the measurement command from the Vision
Sensor, execute "fhrunrecvres".
nonprocedural command transmission function
nonprocedural command
command response receiving function
If the response is not OK, exit the program.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
