FS-C4KU7DGES-F / FS-C4KU7DGES-M42 / FS-C2KU7DGES-F / FS-C2KU7DGES-M42 / FS-C2KU7DGES-C
Product Specifications and Use’s Guide
Input and Output Signal Timing (Software Trigger)

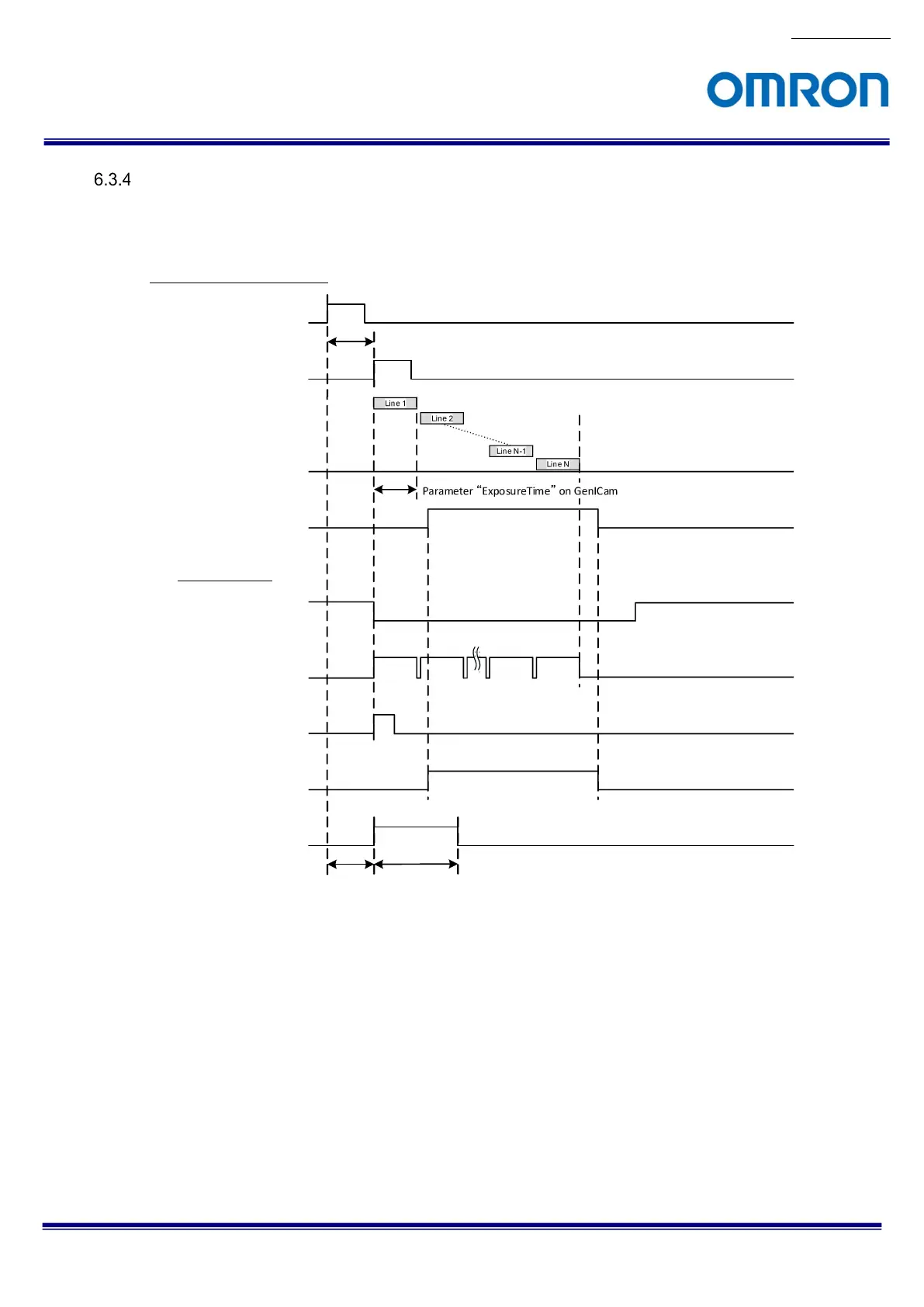

Case of “Software Trigger”, “Timed Exposure Mode” and “Positive Edge Trigger”
Software trigger
Trigger delay
Expose
Image out
Camera internal processing
Output signals
FrameTriggerWait
ExposureActive
FramTriggerInternal
SensorReadOut
Timer0, 1
Parameter
“
ExposureTime
”
on GenICam
Parameter
“
TriggerDelay
”
on GenICam
Paramter
“
TimerDelay
”
on GenICam Parameter
“
TimerDuration
”
on GenICam
Line 1
Line 2
Line N
Line N-1
