Omron H3DS Series User Manual

21

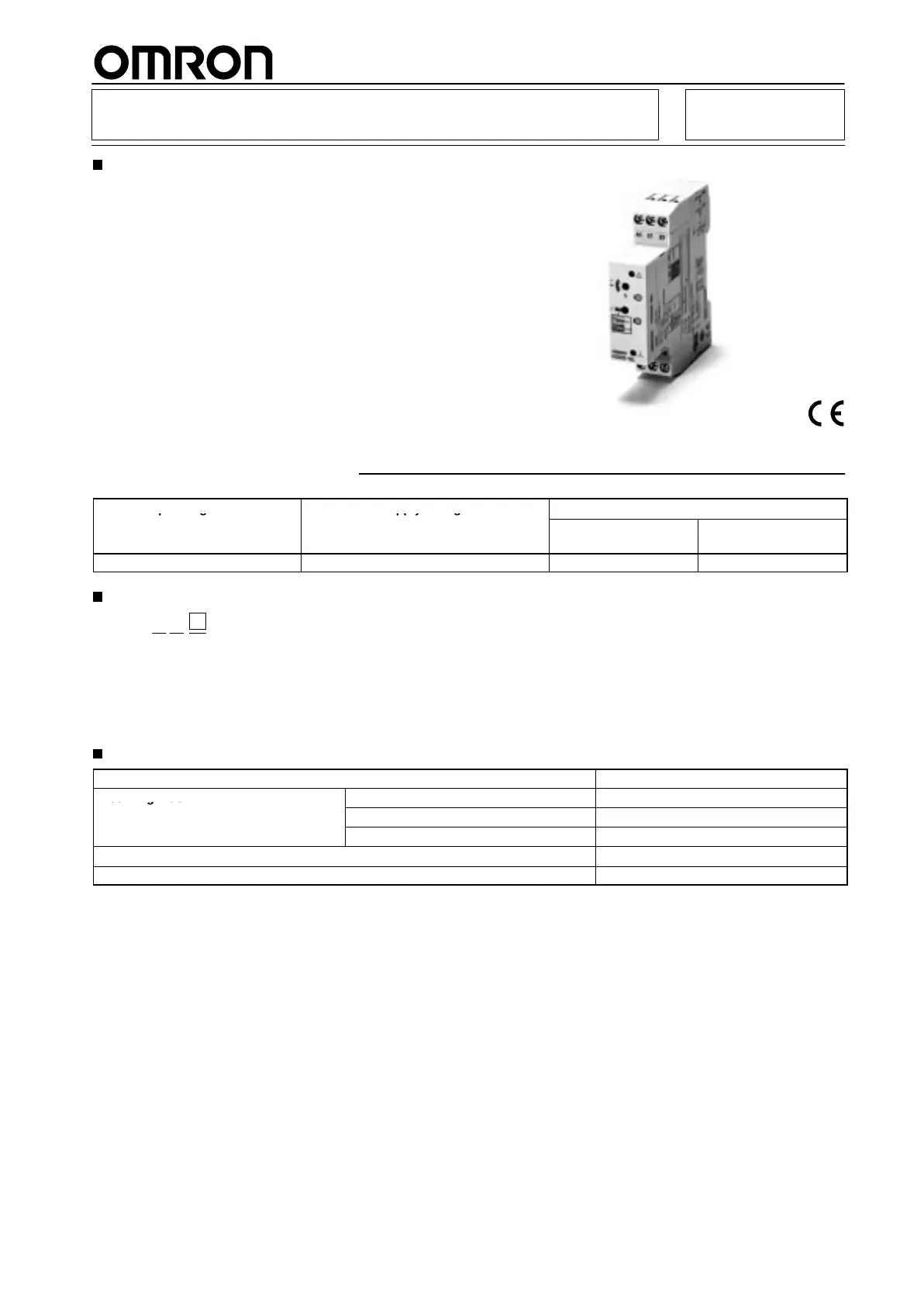

Solid-state Star-delta Timer H3DS-G
A wide star-time range (up to 120 seconds) and
star-delta transfer time range (up to 1 second)
R C
Ordering Information
Operating mode Supply voltage
Model
Ope a g ode
Supp y o age
Screw terminal type Screwless spring
terminal type
Star-delta operation 24 to 230 V AC (50/60 Hz)/24 to 48 VDC H3DS-GL H3DS-GLC
Model Number Legend
H3DS -G L
1
1. G: Star-delta timer
2. L: Smart lock mechanism
3. None: Screw terminal type
C: Screwless spring terminal type
32
Accessories (Order Separately)
Lock Key Y92S-38
Mounting T rack
50 cm (l) x 7.3 mm (t) PFP-50N
ou g ac
1 m (l) x 7.3 mm (t) PFP-100N
1 m (l) x 16 mm (t) PFP-100N2
End Plate PFP-M
Spacer PEP-S

Omron H3DS Series Specifications

General

Type	Solid-state Timer
Operating Temperature	-10°C to 55°C
Output Type	Relay
Terminal Type	Screw terminals
Storage Temperature	-25°C to 65°C
Mounting	DIN Rail
Output	SPDT
Functions	On-Delay, Off-Delay, Interval, One-Shot
Protection Rating	IP20
Contact Form	SPDT
