Omron H3DS Series User Manual

H3DS-X
H3DS-X
30

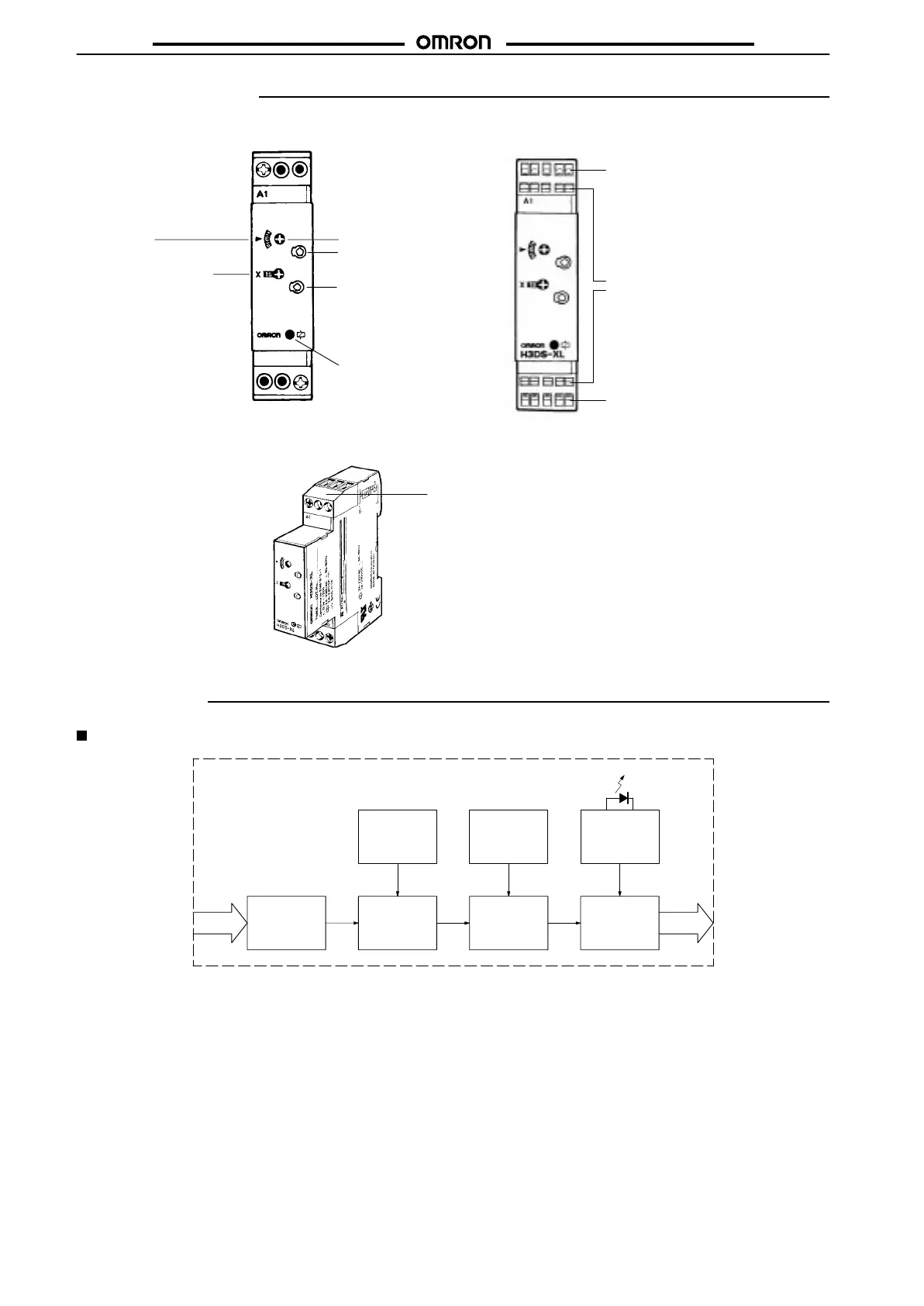

Nomenclature
(Front View)
Set time window
Time scale display window and
selector (select one from 1 s,
0.1 s, 1 h, 0.1 h, 10 h, 1 h, 1 m,
and 0.1 m)
Time setting dial (set time)
Lock for time setting dial
Lock for time scale selector
Power-ON indicator (green)
(Lit while the power is ON.)
Attach the enclosed label here as a nameplate.
(The label is attached to the Timer’s DIN Track
hook section at the time of shipment.)
A2
H3DS-XL
H3DS-XLj
H3DS-XLC
Wire connection holes
Release holes
Wire connection holes
A2
(Front View)
Operation
Block Diagram
AC (DC)
input
Power supply
circuit
Indicator
circuit
Output
circuit
Oscillation
circuit
Counting
circuit
Time scale/
unit selectors
Zero setting
detection
circuit

Omron H3DS Series Specifications

General

Type	Solid-state Timer
Operating Temperature	-10°C to 55°C
Output Type	Relay
Terminal Type	Screw terminals
Storage Temperature	-25°C to 65°C
Mounting	DIN Rail
Output	SPDT
Functions	On-Delay, Off-Delay, Interval, One-Shot
Protection Rating	IP20
Contact Form	SPDT
