H5RA

278

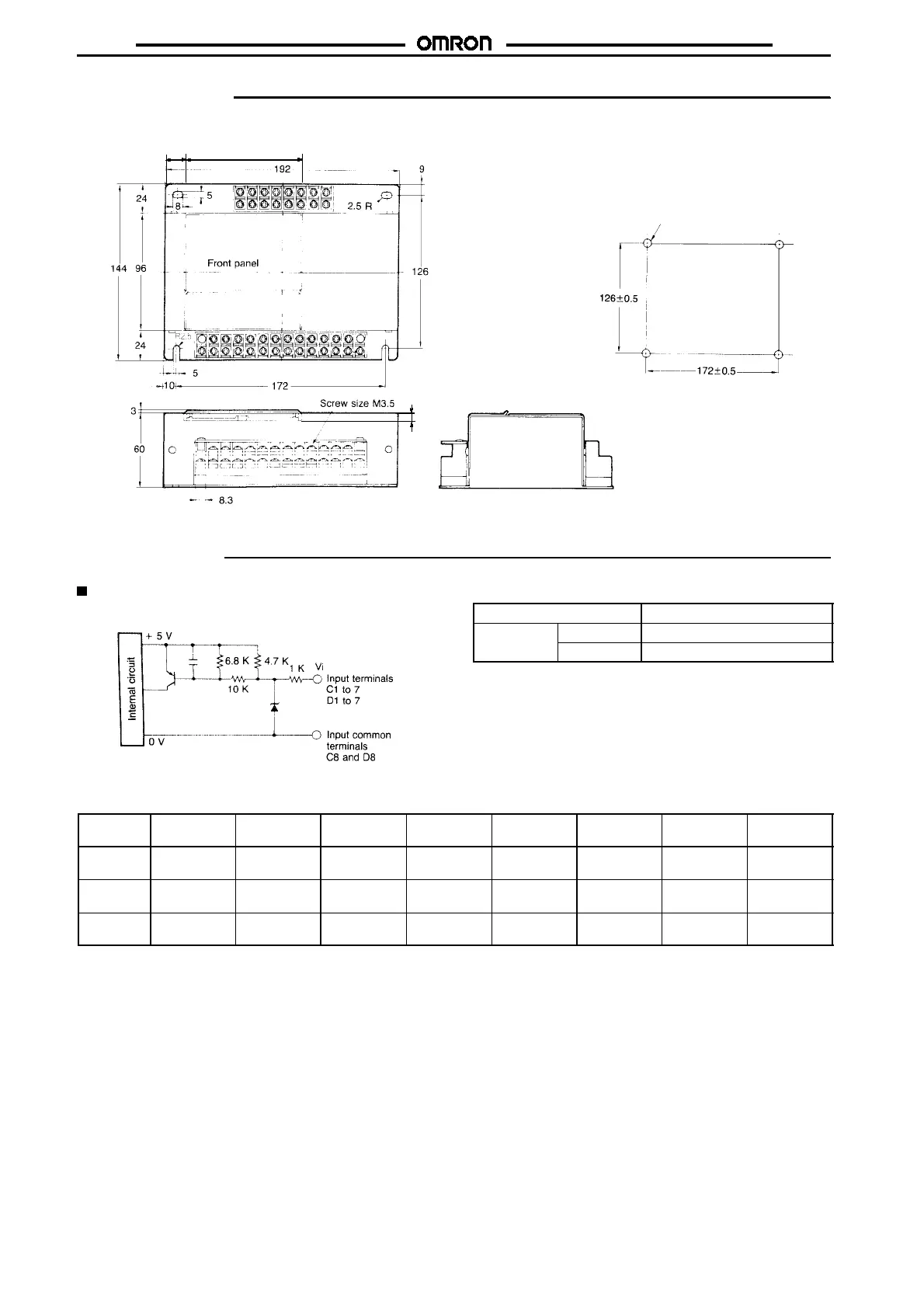

Dimensions

Note: All units are in millimeters unless otherwise indicated.

Mounting Holes

Four, M4 holes

16 96

6.5

Installation

Input Specifications

Circuit Configuration

Input current -- 2 m A m a x .

Signal ON Vi = 2 V max.

OFF Vi = 4 V min.

Terminal Arrangement (Upper Terminals)

Terminal

number

D1 D2 D3 D4 D5 D6 D7 D8

Function OUTPUT

MODE

B2 B3 INHIBIT BATCH

RESET

RESET at

PW.ON

START at

PW.ON

INPUT COM

Terminal

number

C1 C2 C3 C4 C5 C6 C7 C8

Function FORCED

RUN

START 1 START 2 GATE RESET OPER.

CHECK 1

OPER.

CHECK 2

INPUT COM

Note: Use the input common terminals even though they are internally connected to the output common terminals.
