H5RA
H5RA
279

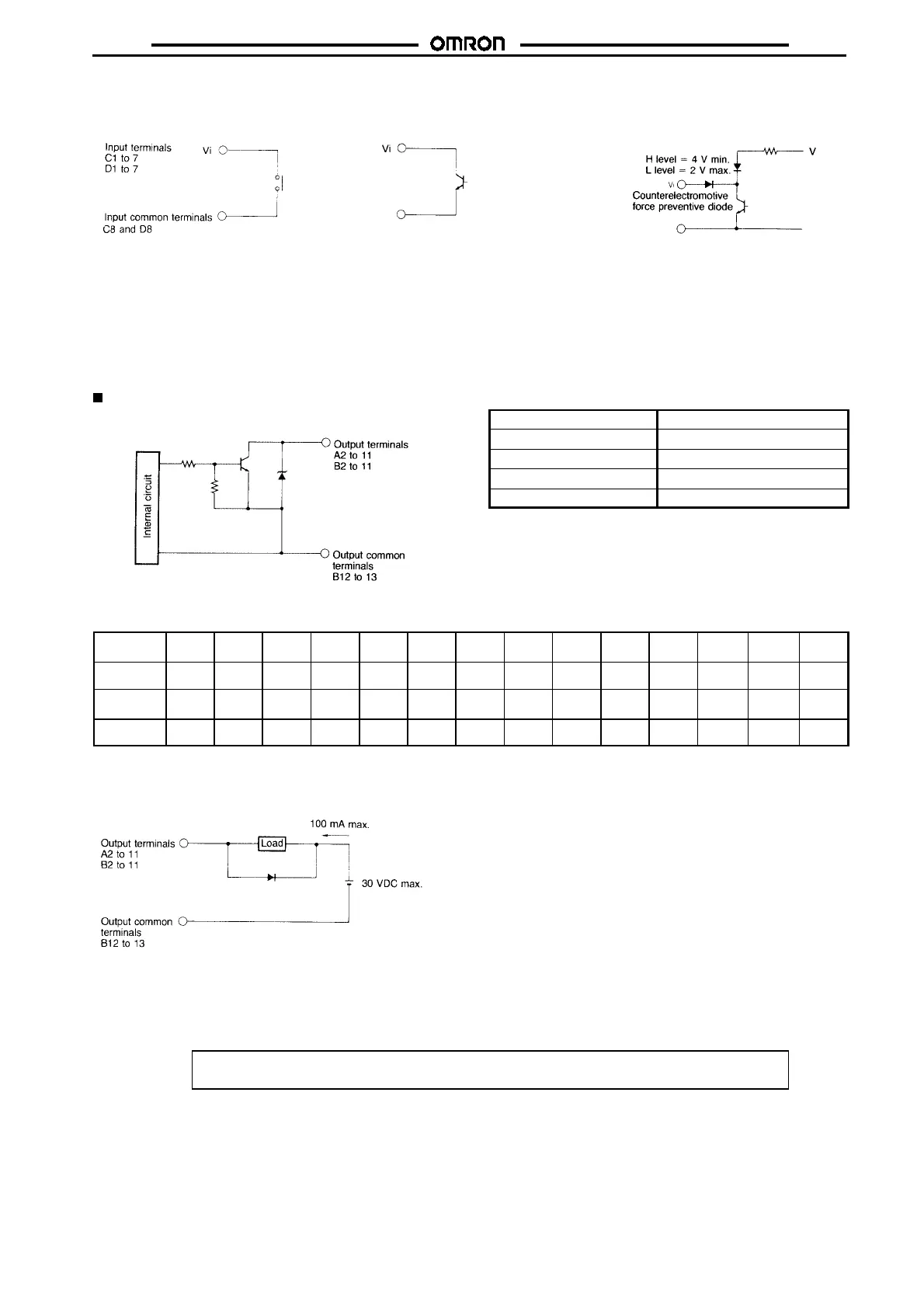

Connections
Contact Input Solid-state, No-voltage Input Solid-state, Voltage Input
Resistance when contacts are
closed: 1 k
$
max.
Resistance when contacts are
open: 100 k
$
min.
Residual voltage Vi between input
terminals when transistor is ON:
2Vmax.
Impedance when transistor is OFF:
100 k
$
min.
Residual voltage Vi between input
terminals when transistor is ON:
2Vmax.
Impedance when transistor is OFF:
100 k
$
min.
Note: Be sure to connect a diode to protect the output transistor from
counterelectromotive force.
Output Specifications
Circuit Configuration
Output type Solid-state open collector
Dielectric strength 30 V
Permissible current 100 mA
Residual voltage 1.0 V max.
Leakage current 0.1 mA max.
Terminal Arrangement (Bottom Terminals)
Terminal
number
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14
Function
--- ALM RUN OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 OUT 6 OUT 7 OUT 8 S1
(power)
S2
(power)
---
Terminal
number
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14
Function
--- BATCH READY OUT 9 OUT 10 OUT 11 OUT 12 OUT 13 OUT 14 OUT 15 OUT 16 OUTPUT
COM
OUTPUT
COM
FG
Note: 1. Terminals B4 through B11 of H5RA-8 are not to be used.
2. Use the input common terminals even though they are internally connected to the output common terminals.
Connections
Note: When using an inductive load, be sure to connect a diode to
protect the output transistor from counterelectromotive force.
See note
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. L80-E1-3
