Omron H5CX User Manual

Multifunction Digital Timer H5CX-A/-L 15
40±0.2
7.8
3
4.5
35.4
4
7.8
4
40±0.2
35.4
30
5
4.5
3
1.2

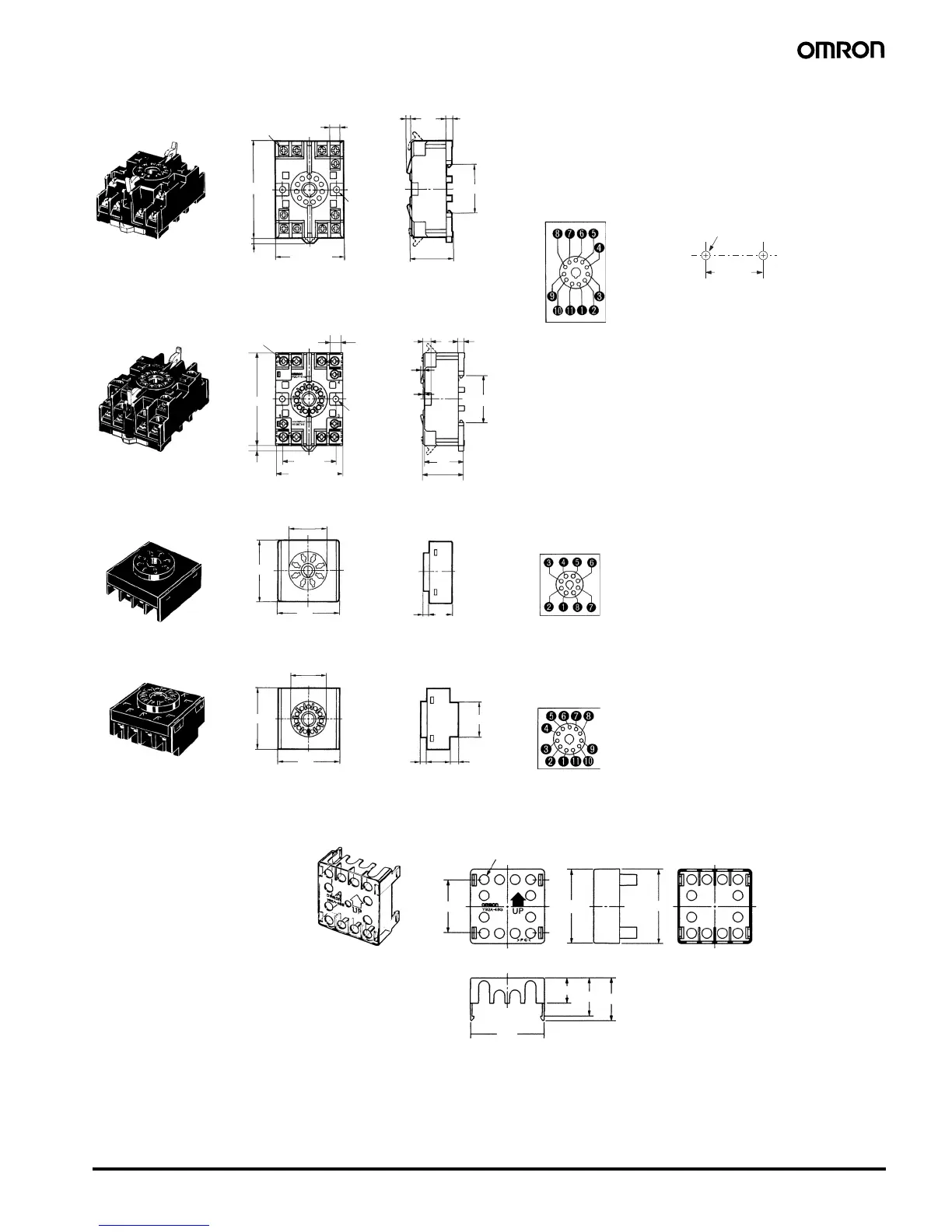

Track Mounting/Front Connecting Socket
P2CF-11
Surface Mounting Holes
Two, 4.5 dia. or two, M4
70 max.
50 max.
31.2 max.
P2CF-11-E (Finger Safe Terminal Type)
Conforming to VDE0106/P100
70 max.
50 max.
31.2 max.
Terminal Arrangement/
Internal Connections
(Top View)
Eleven,
M3.5 x 7.5 sems
Two, 4.5 dia.
holes
Eleven,
M3.5 x 7.5 sems
Two, 4.5 dia.
holes
45
45
4.9
17
45
45
25.6
4.5
16.3
6.2
34
47.7 x 47.7
48 x 48
47.4
16.5
24.6
27.6
27 dia.
Back Connecting Socket
P3G-08
P3GA-11
27 dia.
Finger Safe Terminal Cover
Conforming to VDE0106/P100
Y92A-48G
Twelve, 6.4 dia. holes
Terminal Arrangement/
Internal Connections
(Bottom View)
Terminal Arrangement/
Internal Connections
(Bottom View)
(Attachment for P3G-08/P3GA-11
Socket)

Omron H5CX Specifications

General

Time Range	0.001 s to 9999 h
Mounting Method	Flush mounting
Output Type	Relay or Transistor
Control Output	Relay or Transistor
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Input Type	NPN or PNP
Power Supply Voltage	24V AC/DC, 100-240V AC
Operating Voltage Range	85% to 110% of rated voltage
Operating Modes	ON-delay, One-shot, Interval
Contact Rating	5 A at 250 VAC
Mounting	Panel
Dimensions	48 x 48 mm
Protection Structure	IP66 (front panel)
