Omron H5CX User Manual

Multifunction Digital Timer H5CX-A/-L (Twin Timer Function) 29
Operation in Run Mode

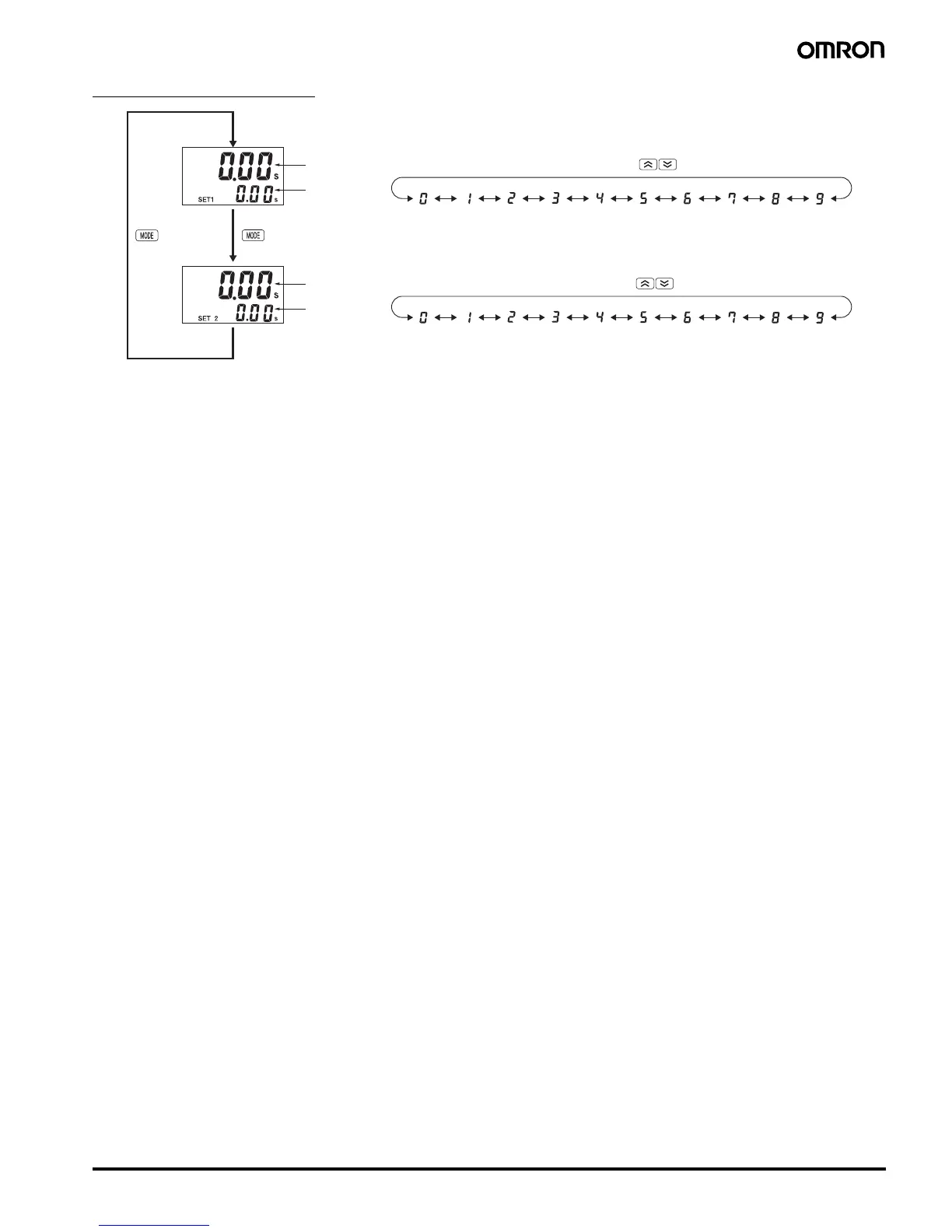

Present Value and OFF Set Time
The present value is displayed in the main display and the OFF set
time is displayed in the sub-display. “SET1” lights at the same time.
Present Value and ON Set Time
The present value is displayed in the main display and the ON set
time is displayed in the sub-display. “SET2” lights at the same time.
Present value
OFF set time
Present value
ON set time
Set the digits for the OFF set time using the corresponding keys.
Set the digits for the ON set time using the corresponding keys.

Omron H5CX Specifications

General

Time Range	0.001 s to 9999 h
Mounting Method	Flush mounting
Output Type	Relay or Transistor
Control Output	Relay or Transistor
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Input Type	NPN or PNP
Power Supply Voltage	24V AC/DC, 100-240V AC
Operating Voltage Range	85% to 110% of rated voltage
Operating Modes	ON-delay, One-shot, Interval
Contact Rating	5 A at 250 VAC
Mounting	Panel
Dimensions	48 x 48 mm
Protection Structure	IP66 (front panel)
