Omron H7BX

32
H7BX

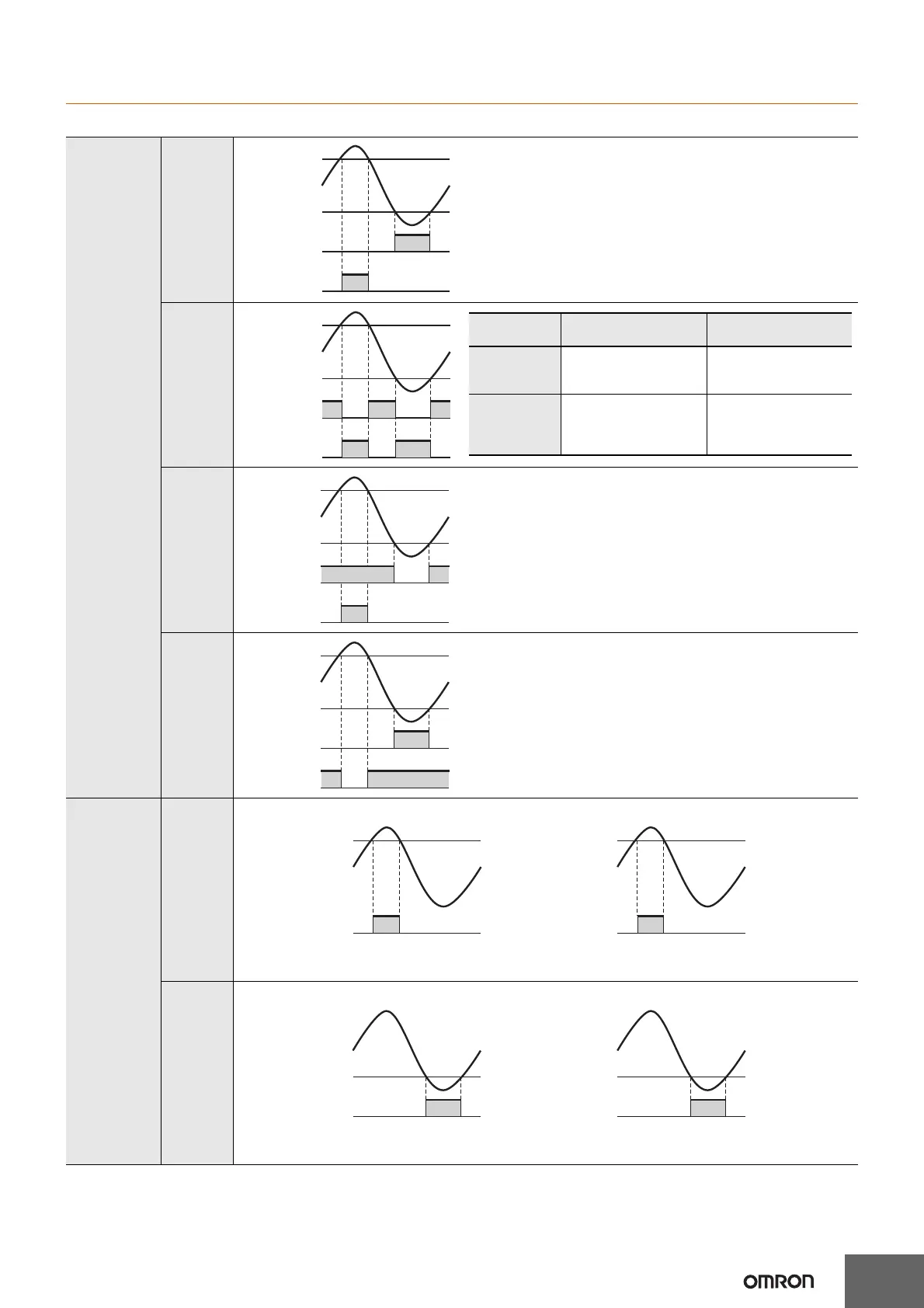

Output Mode Settings
1 input
Error
Absolute ratio
Error ratio
Upper and
lower limit
(HI-LO)
ON condition for OUT1: Measurement value ≤ OUT1 set value
ON condition for OUT2: Measurement value ≥ OUT2 set value
Area
(AREA)
Upper
limit
(HI-HI)
ON condition for OUT1: Measurement value ≥ OUT1 set value
ON condition for OUT2: Measurement value ≥ OUT2 set value
Lower
limit
(LO-LO)
ON condition for OUT1: Measurement value ≤ OUT1 set value
ON condition for OUT2: Measurement value ≤ OUT2 set value
2 inputs
Upper
limit
(HI)
Lower
limit
(LO)
OUT1
OUT2
Measurement value
(Upper-limit)
OUT2 set value
(Lower-limit)
OUT1 set value
OUT1
OUT2
Measurement value
OUT2 set value
OUT1 set value
Condition
OUT1 set value ≤ OUT2
set value
OUT1 set value > OUT2
set value
ON condition
for OUT1
OUT1 set value ≤
Measurement value ≤
OUT2 set value
OUT2 set value ≤
Measurement value ≤
OUT1 set value
ON condition
for OUT2
Measurement value <
OUT1 set value or
Measurement value >
OUT2 set value
Measurement value <
OUT2 set value or
Measurement value >
OUT1 set value
OUT1
OUT2
Measurement value
(Upper-limit)
OUT2 set value
(Upper-limit)
OUT1 set value
OUT1
OUT2
Measurement value
(Lower-limit)
OUT2 set value
(Lower-limit)
OUT1 set value
OUT1
CP1 display value
Comparison value 1
Output 1
OUT2
CP2 display value
Comparison value 2
Output 2
ON condition for output 1: CP1 present value (display value) ≥ Comparison value 1
ON condition for output 2: CP2 present value (display value) ≥ Comparison value 2
OUT1
CP1 display value
Comparison value 1
Output 1
OUT2
CP2 display value
Comparison value 2
Output 2
ON condition for output 1: CP1 present value (display value) ≤ Comparison value 1
ON condition for output 2: CP2 present value (display value) ≤ Comparison value 2
