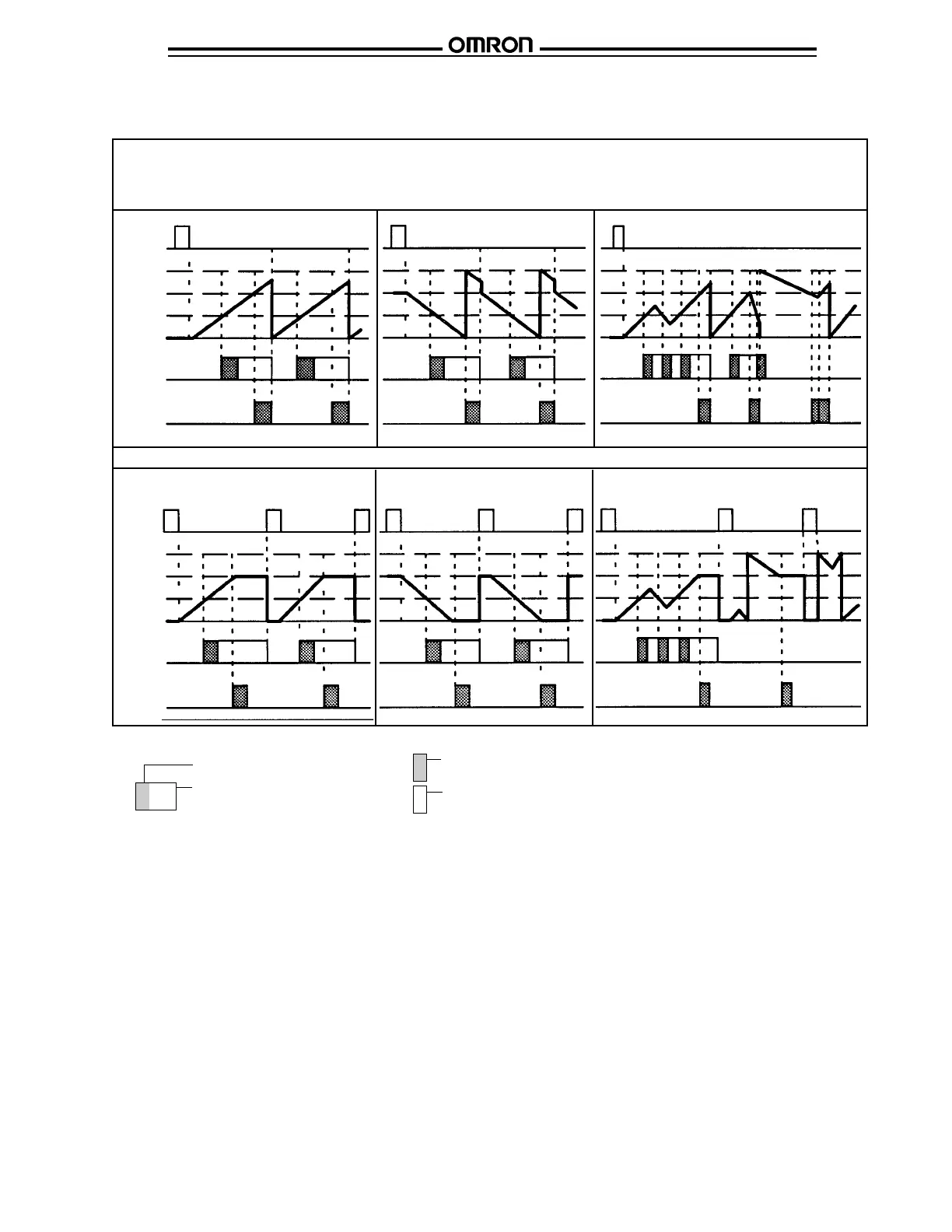

Output Mode A Present value and Output 1 maintain status until reset. Output 1 and 2 operate independently.
Standard Counter Output Operation (Continued)
(Bold line represents present value; Output 2 operation applies for single-preset models.)
Up Down Reversible A, B, and C
Up Down Reversible A, B, and C
One-shot output from Output 1
Sustained output
One-shot outputs can be set to 10, 50, 100, 200 or 500 ms.
One-shot output from Output 2
Sustained output
Output Mode Q Present value runs continuously through one-shot time period and returns to reset start status immediately
afterward. Outputs are one-shot and operate repeatedly. Output 1 latches ON at preset 2, and goes OFF after expiration of the one-
shot period for Output 2. One-shot time periods for Output 1 and 2 are independent.
Reset
999,999
Output 2
Output 1
0
Preset 1
Preset 2
Reset
999,999
Output 2
Output 1
0
Preset 1
Preset 2
