Omron H7CR-A Series User Manual

H7CR
H7CR
15
P3G-08 Back Connecting Socket
27 dia
(1.06)
45
(1.77)
45
(1.77)
4.9
(0.19)

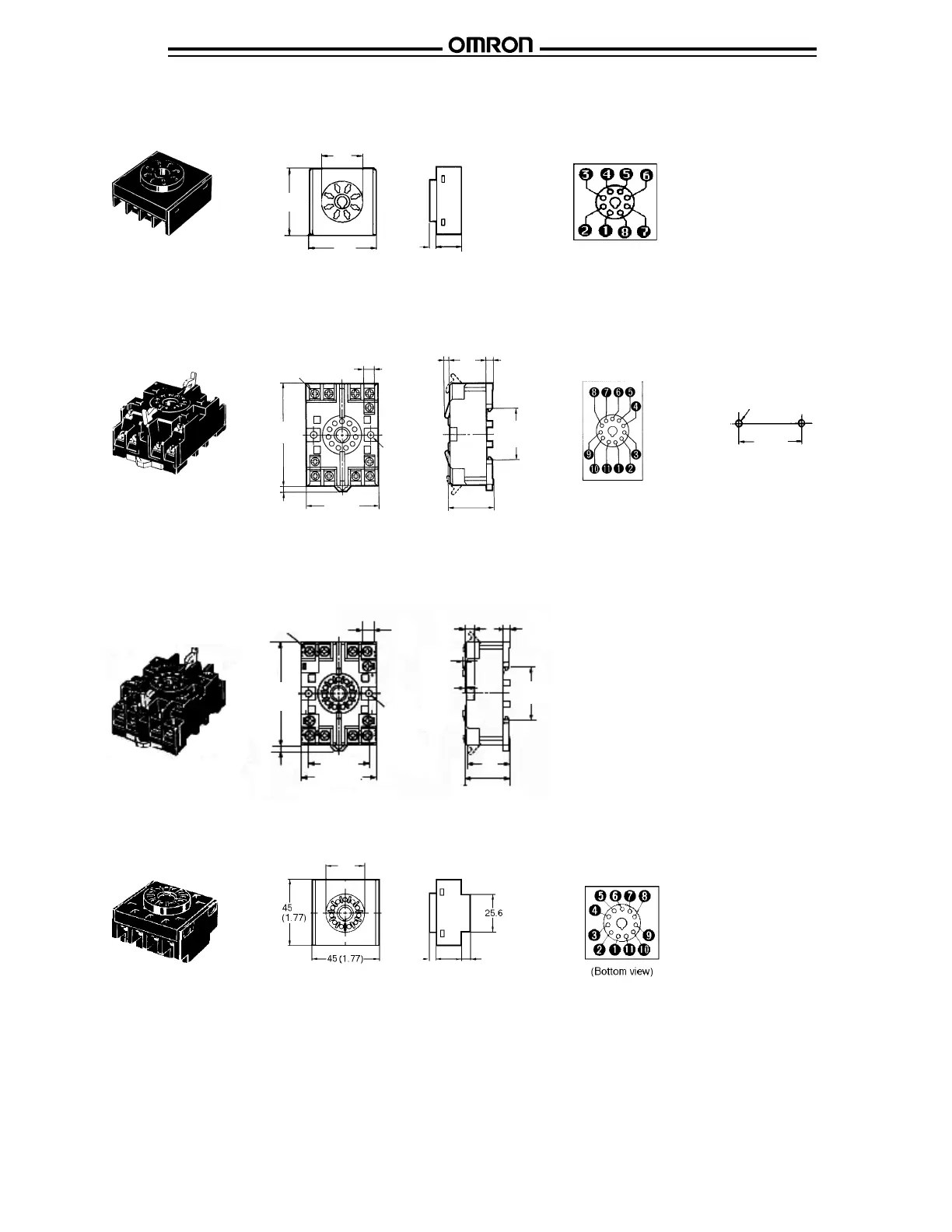

Terminal Arrangement
P2CF-11 Track Mounting/Front Connecting Socket
17
(0.67)
Terminal Arrangement
70 max.
(2.76)
Eleven
M3.5 x 7.5 sems
7.8
(0.31)
Two 4.5 dia.
holes
4
(0.16)
3
(0.12)
4.5
(0.18)
35.4
(1.39)
31.2 max.
(1.23)
Two, 4.5 dia. or two
M4 socket mounting holes
Surface Mounting Holes
40 ± 0.2
(1.57)
50 max.
(1.97)
P3GA-11 Back Connecting Socket
Terminal arrangement
16.3
(0.64)
(1.01)
27 dia
(1.06)
Eight
M3.5 x 7.5 sems
P2CF-11-E Finger Safe Terminal Type
Conforming to VDE0106/P100
7.8
(0.31)
70 max.
(2.76)
5
3
1.2
4.5
(0.18)
35.4
(1.39)
Two 4.5 dia.
holes
50 max.
(1.97)
40±0.2
30
31.2 max
4.5
(0.18)
