H7CR
H7CR
17

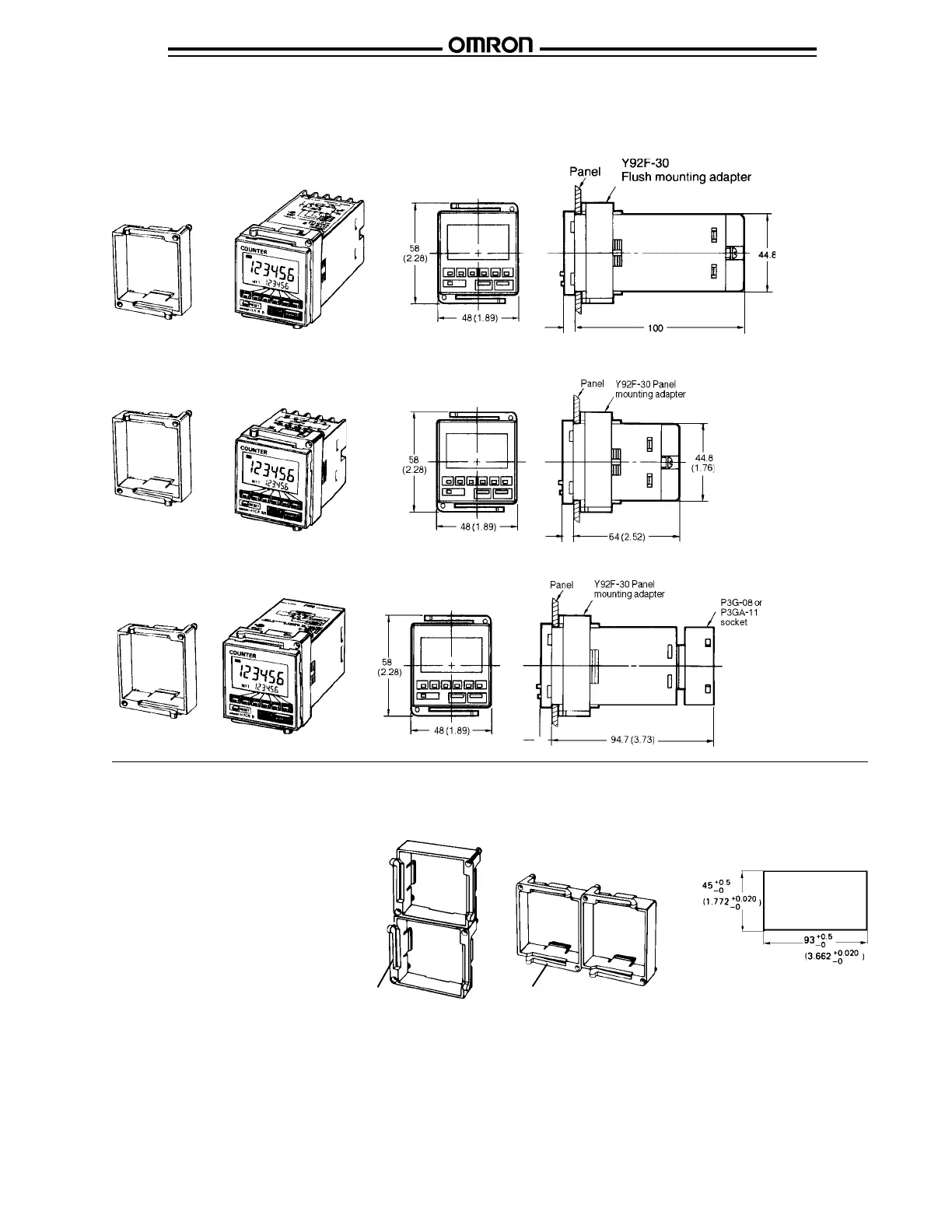

■ PANEL MOUNTING ADAPTER Y92F-30
Panel mounting adapter Y92F-30 is
supplied with each counter. Installation
instructions are on the next page.
H7CR-A, H7CR-B and H7CR-C
H7CR-S
6
(0.24)
6
(0.24)
(1.76)
(3.94)
H7CR-8❑, H7CR-11
Insert the counter through the panel
cutout. Push the Y92F-30 adapter from
the rear of the counter as far forward
toward the panel as possible. Then,
tighten the two retaining screws. To
release the adapter, lift the tab at the rear
of the adapter.
Several counters may be mounted close
together using Y92F-30 adapter as shown
here. When mounting two or more
counters in a vertical line, arrange the
adapters so that their molded tabs are
positioned on the right and left sides.
When mounting two or more counters in a
horizontal line, arrange the adapters so
that their molded tabs are positioned on
the top and bottom sides.
Molded
tab
Panel cutout for side-by-side
mounting of two counters
Panel Mounting H7CR Counters
Molded
tab
6
(0.24)
To Next Page
