H7CR
H7CR
13

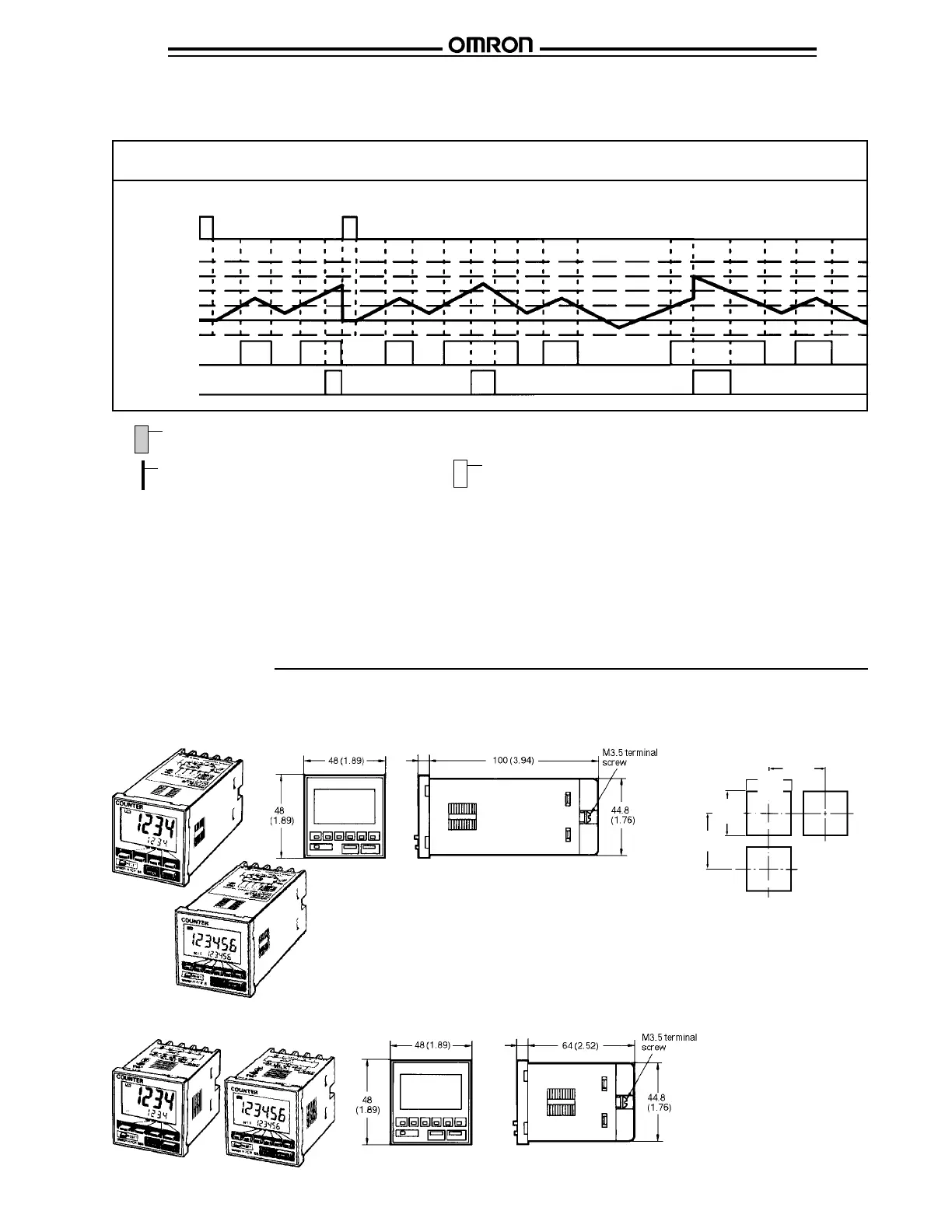

+/– Range Counter Output Operation (Continued)
(Bold line represents present value; Output 2 operation applies for single preset models.)
Output Mode H Present value increments and decrements within displayable range. Output 1 is ON whenever present value is
greater than or equal to preset 1; Output 2 is ON whenever present value is greater than or equal to preset 2.
Reversible A, B, and C
Reset
999,999
Preset 2
Preset 1
0
-999,999
Output 1
Output 2
Instantaneous (equals) output
One-shot output
Sustained output/level input
One-shot outputs can be set to 10, 50, 100, 200 or 500 ms.
Notes
Counting inputs are not acknowledged while the reset input
is ON.
The compensation input is valid only when the present value is
being incremented.
One-shot outputs, when ON, are turned OFF when the reset
input goes ON, but are left ON for the one-shot time period
when the compensation inputs goes ON. One-shot outputs,
when ON, are reset and the one-shot output is restarted if a
preset designating the output is reached.
Dimensions
Unit: mm (inch)
■ COUNTERS
H7CR-S❑ Short Body
Panel cutout
60 min.
(2.36)
60 min.
(2.36)
45
(1.77)
H7CR-A, H7CR-B and H7CR-C
6
(0.24)
6
(0.24)
45
(1.77)
To Next Page
