13

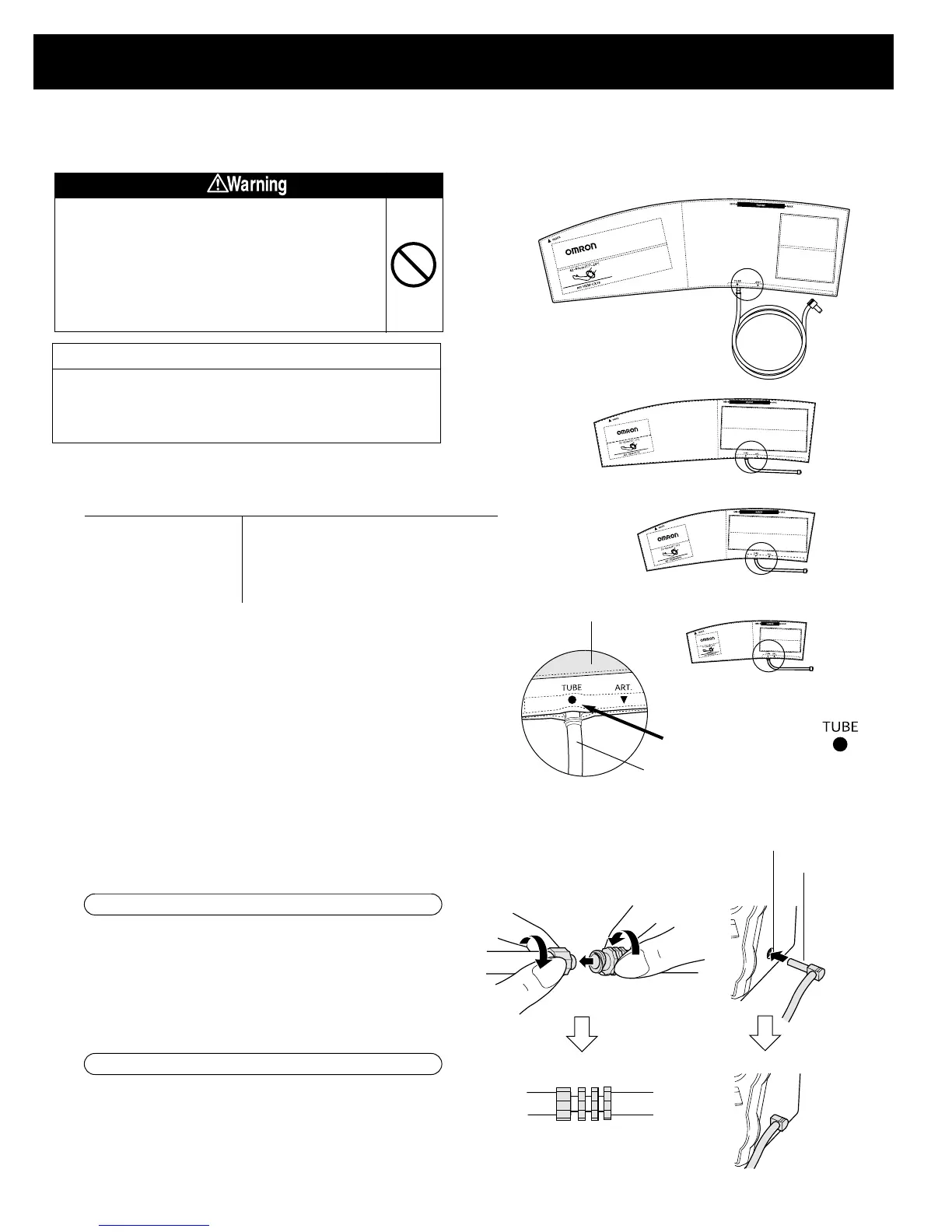

HOW TO APPLY THE CUFF
General advice
• Do not inflate the cuff without being wrapped over
the arm.
• Do not use a damaged cuff.
1. Select the cuff according to the arm size
Arm circumference Name of the cuff
(7" - 9") 17-22 cm HEM-907-CS19 (Small)
(9
" - 13
") 22-32 cm HEM-907-CR19 (Medium)
(13
" - 17") 32-42 cm HEM-907-CL19 (Large)
(17" - 20") 42-50 cm HEM-907-CX19 (Extra Large)
• Check the following before applying the cuff:
1) The bladder is correctly installed in the cuff.
2) The bladder is not twisted inside the cuff.
3) The bladder tube is protruding from the cuff as shown in
the Figure on the right.
2. Connect the air tube securely.
• Connect the air tube to the main unit by securing
the air plug to the base of the air connector.
• Securely connect the air tube and the cuff/bladder
set by rotating the luer connection as shown in
the Figure on the right.
Do not wrap the cuff over an arm to which
intravenous injection or transfusion is being
conducted, or when otherwise contraindicated.
Do not connect the air tube or the cuff to other
equipment which is connected to intracorporeal
organ. Air embolisms may result.
The cuff of OMRON IntelliSense
®
Blood Pressure Monitor HEM-907XL plays an important role of
collecting the information on blood vessels. Please wrap the cuff according to the procedure, below.
Cuff
Air tube
Air connector
Air plug
Cuff side
Air tube side
Extract the air tube from .
Enlarged figure of
the circled part
The extra-large cuff comes with an air tube with
an integrated air plug. Connect the air plug of the
cuff to the air connector securely when
connecting to the main unit.
To use the cuff in extra-large size only
To use the cuff in small, medium or large size
Preparations before Measurement
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 13
To Next Page
