Digital Indicators K3HB Series (Analog Input Series) 3
Note: The applications provided in this catalog are intended as reference only. Do not attempt to use any of them in real systems without first con-
firming machine and device functions and safety. For applications that require safety, ensure that there is sufficient leeway in ratings and
performances, install fail-safe measures, and take any other safety measures required by the application. In addition, contact your nearest
OMRON representative and confirm specifications.

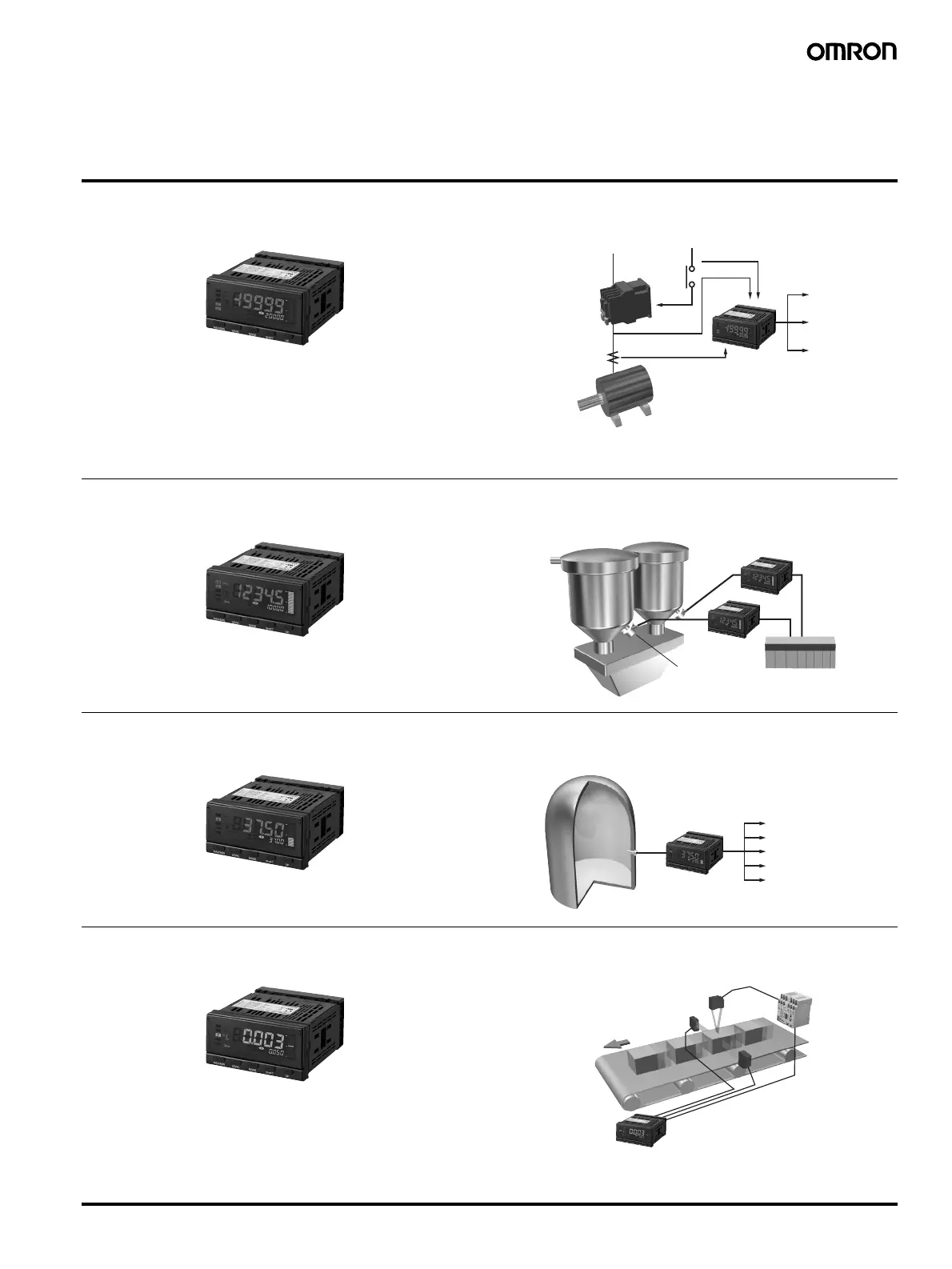

K3HB-series Product Lineup
■ K3HB-X Process Indicator (page 4)
Indicates Measurements for Voltage/Current Signals
• DC Voltage Input Type: K3HB-XVD
(±199.99 V, ±19.999 V, ±1.9999 V, 1.0000 to 5.0000 V)
• DC Current Input Type: K3HB-XAD
(±199.99 mA, ±19.999 mA, ±1.9999 mA, 4.000 to 20.000 mA)
• AC Voltage Input Type: K3HB-XVA
(0.0 to 400.0 V, 0.00 to 199.99 V, 0.000 to 19.999 V, 0.0000 to 1.9999 V)
• AC Current Input Type: K3HB-XAA
(0.000 to 10.000 A, 0.0000 to 1.9999 A, 0.00 to 199.99 mA, 0.000 to
19.999 mA)
■ K3HB-V Weighing Indicator (page 8)
Indicates Weight Measurements Using a Load Cell
•K3HB-VLC
(0.00 to 199.99 mV, 0.000 to 19.999 mV, ±100.00 mV, ±199.99 mV)
■ K3HB-H Temperature Indicator (page 12)
Indicates Temperature Measurements
•K3HB-HTA
Platinum-resistance thermometer (Pt100: 2 ranges)
Thermocouple (K: 2 ranges, J: 2 ranges, T, E, L, U, N, R, S, B, W)
■ K3HB-S Linear Sensor Indicator (page 16)
Measures and Discriminates Results at High Speed with High Accuracy
•K3HB-SSD
0.000 to 20.000 mA, 4.000 to 20.000 mA, 0.000 to 5.000 V, 1.000 to
5.000 V, ±5.000 V, ±10.000 V, two-channel input
Power supply
ON signal
Event input
0 AC to 5A
Magnetic
relay
K3HB-X
H
PA S S
L
Load Cell
Programmable Controlle
K3HB-V
Industrial furnace
HH: Upper limit alarm
H: To heating control
PASS output
L: To cooling control
LL: Lower limit alarm
K3HB-H
K3HB-S
Z4M-N30V2
TIMING input
To Next Page
