84 LD-60/90 Platform User's Manual 11970-000 Rev M
6.2 Payload Bay Connections - Core
Callout Description Callout Description
A Supplied Equipment H Input Bank 1
B User-Supplied Equipment J Input Bank 2
C Wiring Terminal Block K Input Bank 3
D Typical User Input Signal L Input Bank 4
E Part Present Sensor M Note: all input signals can be used
for either sinking or sourcing con-
figurations.
F Bank 1 configured for sinking
(NPN) inputs
N Equivalent Circuit
G Bank 4 configured for sinking
(PNP) inputs
Table 6-4. Digital Output Specifications
Parameter Value
Power supply voltage range 5 - 30 VDC
Operational current range, per channel I
out
≤ 500 mA
ON state resistance (I
out
= 0.5 A) R
on
≤ 0.14 Ω @ 85°C
Output leakage current I
out
≤ 5 μA
DC short circuit current limit 0.7 A ≤ I
LIM
≤ 1.7 A

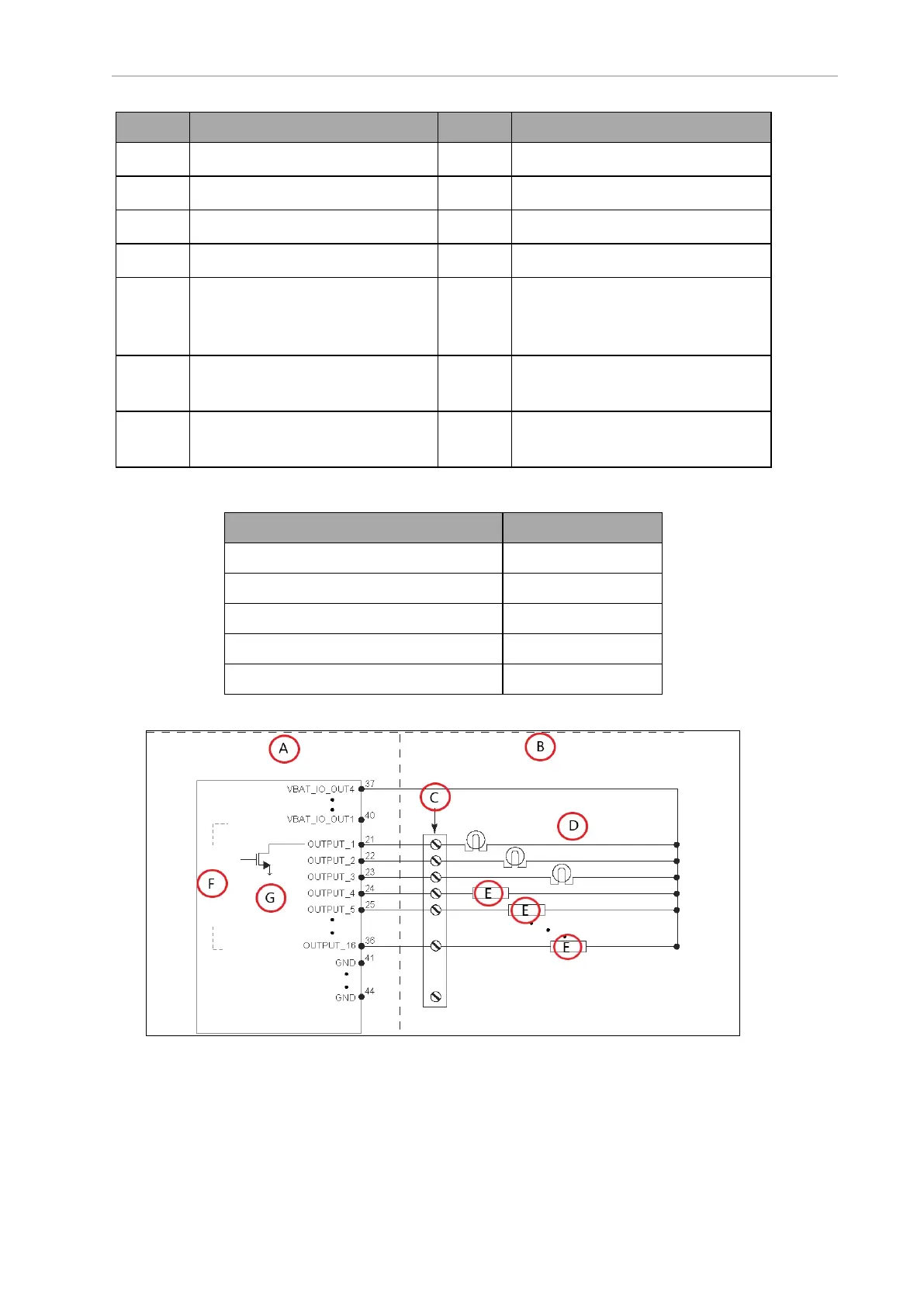

Figure 6-4. Typical Digital Output Wiring Example
