Omron LD

36

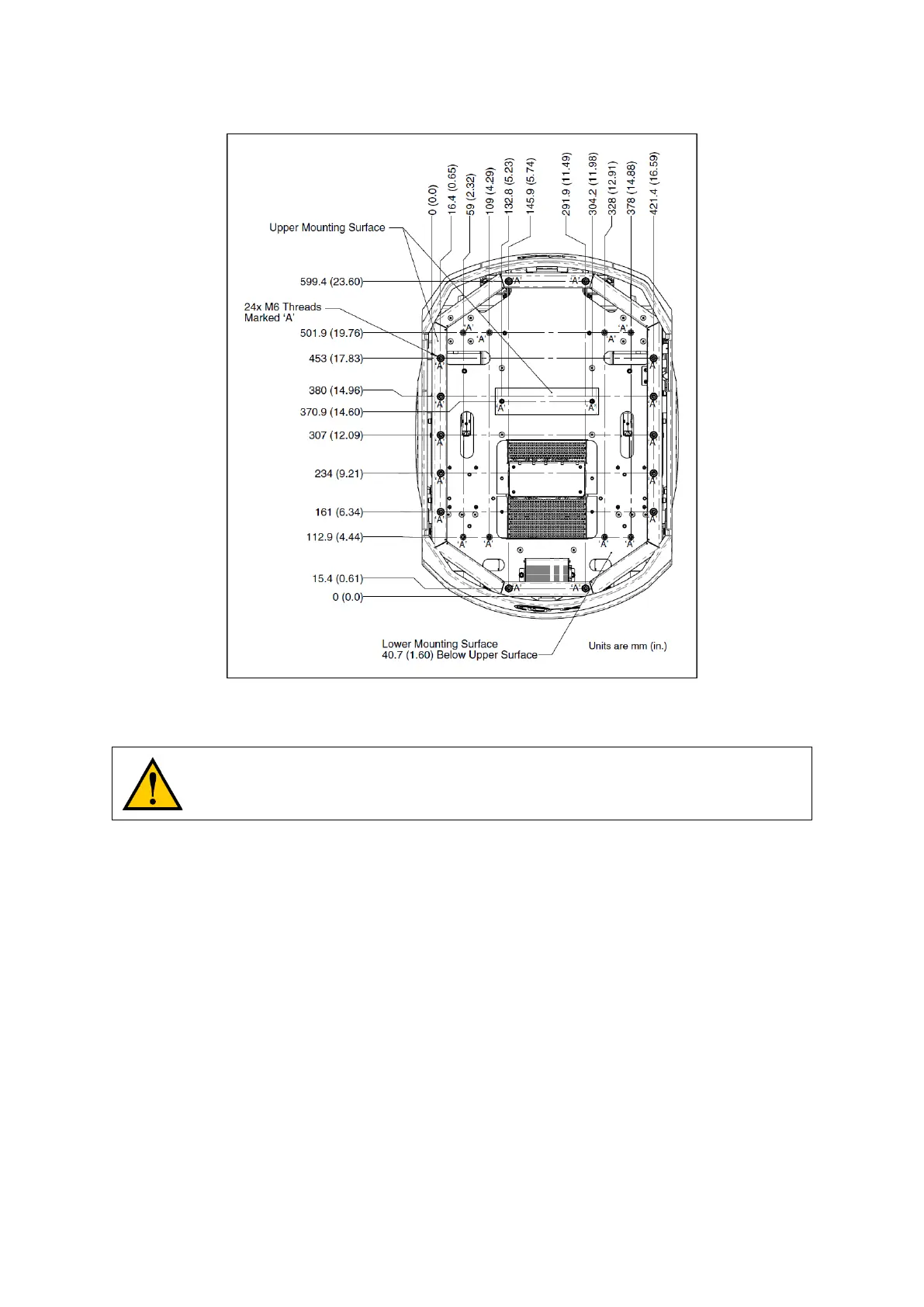

Figure 6: Platform Deck Dimensions, for Attaching Payload Structure with M6-threaded bolts
In the preceding figure, all of the M6 PEM nuts (A) have a torque limit of 3 N-m (26.6 in-lbf).
CAUTION: Do not exceed this torque when attaching your payload structure to these PEM
nuts. See NOTE that follows.
