23180-000 Rev A Mobile Robot LD, LD-CT Assembly Instructions 43

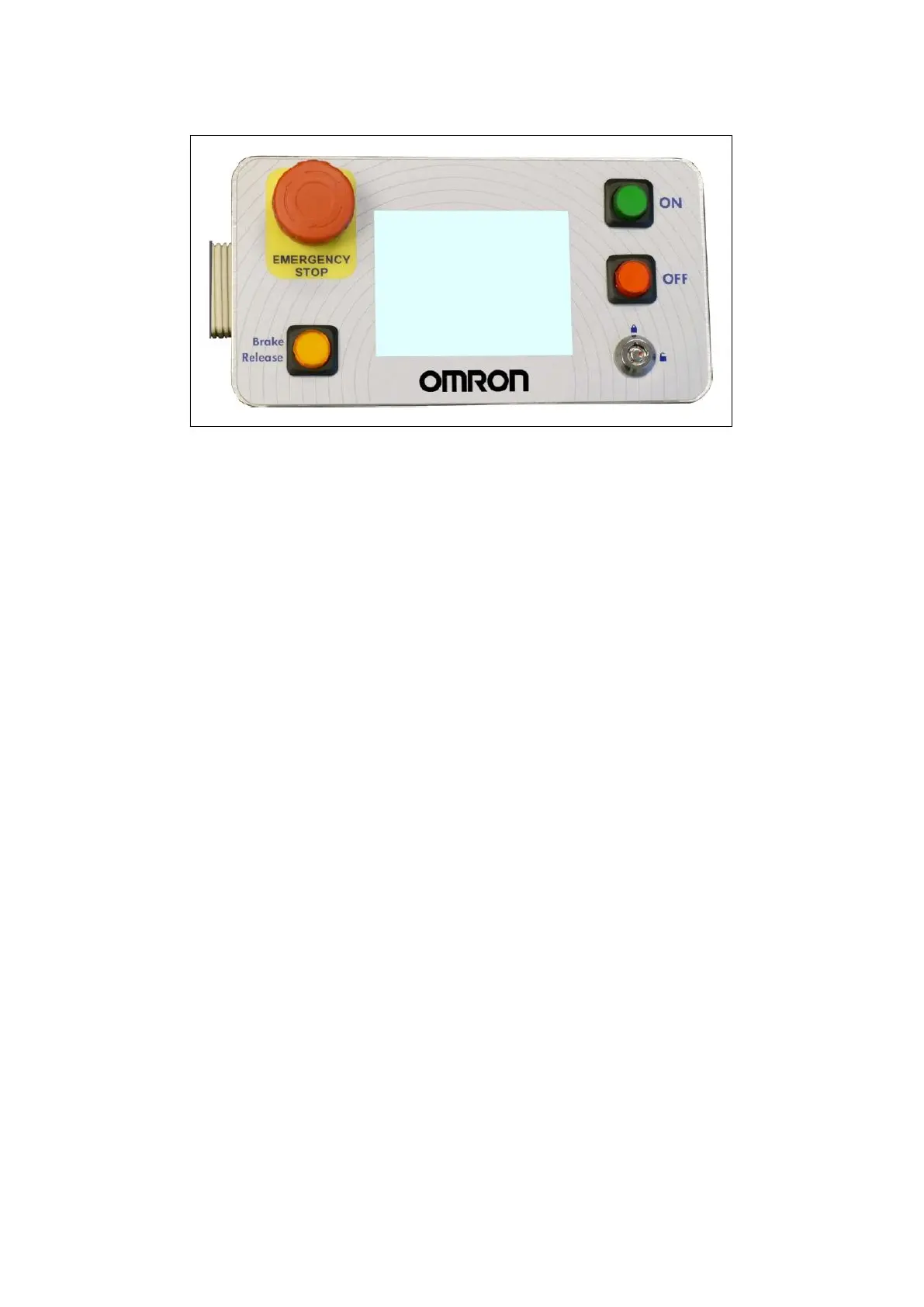

Figure 11: Standard Operator Panel
Option Connections
The platform provides connectors for a user-supplied payload bumper and additional sonar units that can
be placed on the payload structure.
