Medium & Heavy Payload Series-Hardware Installation Manual TM12/14 Series Hardware Version: 3.2 30

Figure 18: Top View of TM14 / TM14M / TM14X Movement Range Diagram

*All measures are in mm.

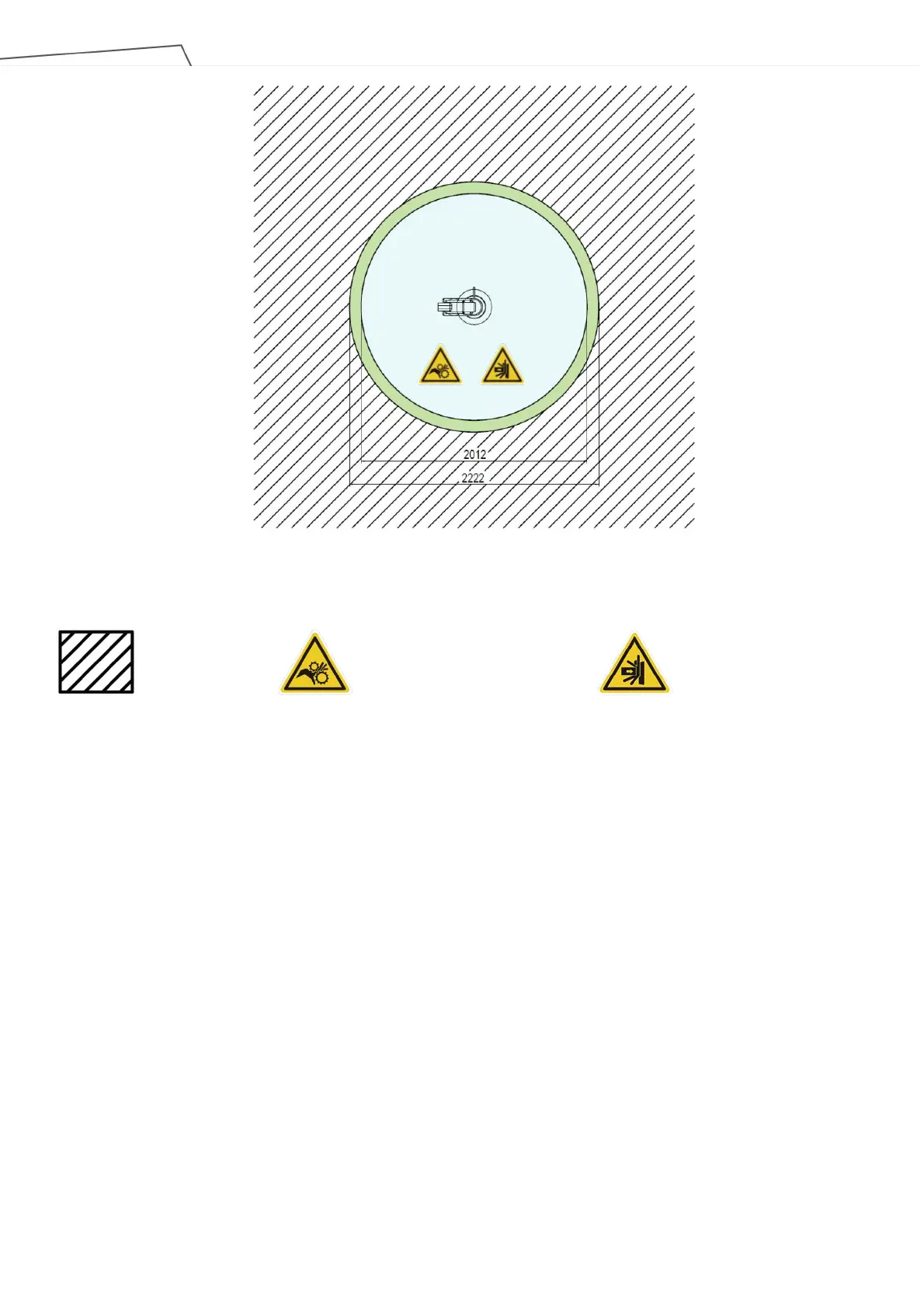

4.2.1.4 Robot Hazard Zone Diagram and Operator Position Diagram

Shown below is an illustration of the robot hazard zone and operator position diagrams. Do not operate

the robot while anyone is inside of the hazard zone to avoid safety risks.

Operator Position

Warning: Risk of crushing within

the operating area of the arm.

Warning: Risk of collision within

the operating area of the arm.
