Omron MX2 Product Information

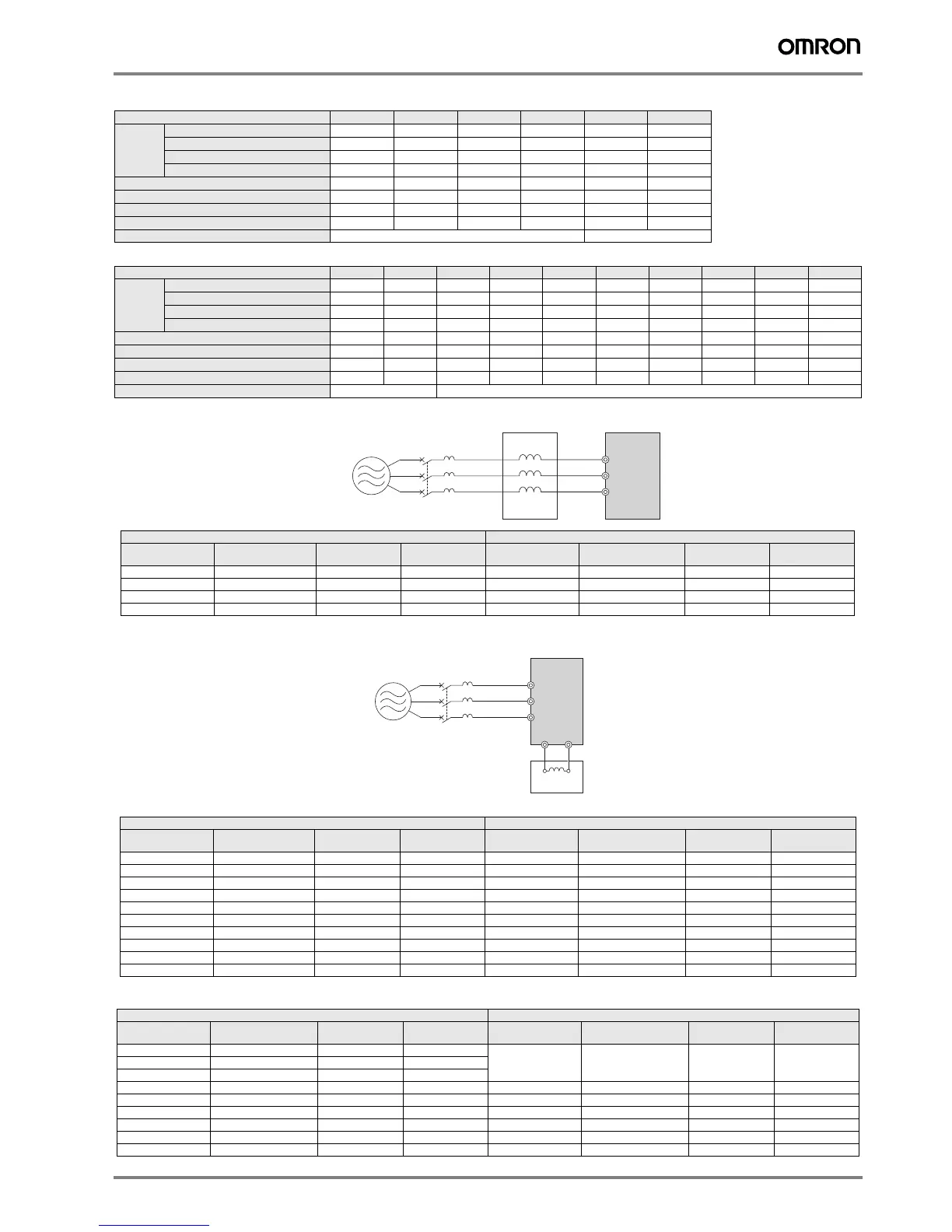

MX2 9
Single-phase 200 V class
Three-phase 400 V class
Input AC Reactor
DC Reactor
Output AC
Reactor
Model MX2 AB001 AB002 AB004 AB007 AB015 AB022
Inverter
capacity
kVA
200V VT
0.4 0.6 1.2 2.0 3.3 4.1
200V CT
0.2 0.5 1.0 1.7 2.7 3.8
240V VT
0.4 0.7 1.4 2.4 3.9 4.9
240V CT
0.3 0.6 1.2 2.0 3.3 4.5
Rated current (A) VT
1.2 1.9 3.4 6.0 9.6 12.0
Rated current (A) CT
1.0 1.6 3.0 5.0 8.0 11.0
Total heat loss
12 22 30 48 79 104
Efficiency at rated load
89.5 90 93 94 95 95.5
Cooling Method Self cooling Forced-air-cooling
Model MX2 A4004 A4007 A4015 A4022 A4030 A4040 A4055 A4075 A4110 A4150
Inverter
capacity
kVA
380V VT
1.3 2.6 3.5 4.5 5.7 7.3 11.5 15.1 20.4 25.0
380V CT
1.1 2.2 3.1 3.6 4.7 6.0 9.7 11.8 15.7 20.4
480V VT
1.7 3.4 4.4 5.7 7.3 9.2 14.5 19.1 25.7 31.5
480V CT
1.4 2.8 3.9 4.5 5.9 7.6 12.3 14.9 19.9 25.7
Rated current (A) VT
2.1 4.1 5.4 6.9 8.8 11.1 17.5 23.0 31.0 38.0
Rated current (A) CT
1.8 3.4 4.8 5.5 7.2 9.2 14.8 18.0 24.0 31.0
Total heat loss 35 56 96 116 125 167 229 296 411 528
Efficiency at rated load 92 93 94 95 96 96 96 96.2 96.4 96.6
Cooling Method Self cooling Forced-air-cooling
3 phase 200 V class 400 V class
Max. applicable
motor output kW
Reference
Current value
A
Inductance
mH
Max. applicable
motor output kW
Reference
Current value
A
Inductance
mH
1.5 AX-RAI02800080-DE 8.0 2.8 1.5 AX-RAI07700050-DE
5.0 7.7
3.7 AX-RAI00880200-DE 20.0 0.88 4.0 AX-RAI03500100-DE 10.0 3.5
7.5 AX-RAI00350335-DE 33.5 0.35 7.5 AX-RAI01300170-DE
17.0 1.3
15 AX-RAI00180670-DE 67.0 0.18 15 AX-RAI00740335-DE
33.5 0.74
200 V class 400 V class
Max. applicable
motor output kW
Reference
Current value
A
Inductance
mH
Max. applicable
motor output kW
Reference
Current value
A
Inductance
mH
0.2 AX-RC21400016-DE 1.6 21.4 0.4 AX-RC43000020-DE
2.0 43.0
0.4 AX-RC10700032-DE 3.2 10.7 0.7 AX-RC27000030-DE 3.0 27.0
0.7 AX-RC06750061-DE 6.1 6.75 1.5 AX-RC14000047-DE
4.7 14.0
1.5 AX-RC03510093-DE 9.3 3.51 2.2 AX-RC10100069-DE 6.9 10.1
2.2 AX-RC02510138-DE 13.8 2.51 3.0 AX-RC08250093-DE 9.3 8.25
3.7 AX-RC01600223-DE 22.3 1.60 4.0 AX-RC06400116-DE 11.6 6.40
5.5 AX-RC01110309-DE 30.9 1.11 5.5 AX-RC04410167-DE 16.7 4.41
7.5 AX-RC00840437-DE 43.7 0.84 7.5 AX-RC03350219-DE 21.9 3.35
11.0 AX-RC00590614-DE 61.4 0.59 11.0 AX-RC02330307-DE 30.7 2.33
15.0 AX-RC00440859-DE 85.9 0.44 15.0 AX-RC01750430-DE 43.0 1.75
200 V class 400 V class
Max. applicable
motor output kW
Reference
Current value
A
Inductance
mH
Max. applicable
motor output kW
Reference
Current value
A
Inductance
mH
0.4 AX-RAO11500026-DE 2.6 11.50
1.5 AX-RAO16300038-DE
3.8 16.30
0.75 AX-RAO07600042-DE 4.2 7.60
1.5 AX-RAO04100075-DE 7.5 4.10
2.2 AX-RAO03000105-DE 10.5 3.00 2.2 AX-RAO11800053-DE 5.3 11.80
3.7 AX-RAO01830160-DE 16.0 1.83 4.0 AX-RAO07300080-DE
8.0 7.30
5.5 AX-RAO01150220-DE 22.0 1.15 5.5 AX-RAO04600110-DE 11.0 4.60
7.5 AX-RAO00950320-DE 32.0 0.95 7.5 AX-RAO03600160-DE 16.0 3.60
11 AX-RAO00630430-DE 43.0 0.63 11 AX-RAO02500220-DE 22.0 2.50
15 AX-RAO00490640-DE 64.0 0.49 15 AX-RAO02000320-DE 32.0 2.00
MCCB
Power supply
AC reactor
MX2
R/L1U
V
W
X
Y
Z
S/L2
T/L3
Power
supply
MX2
DC reactor
R/L1
+1 P/+2
MCCB
S/L2
T/L3

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
