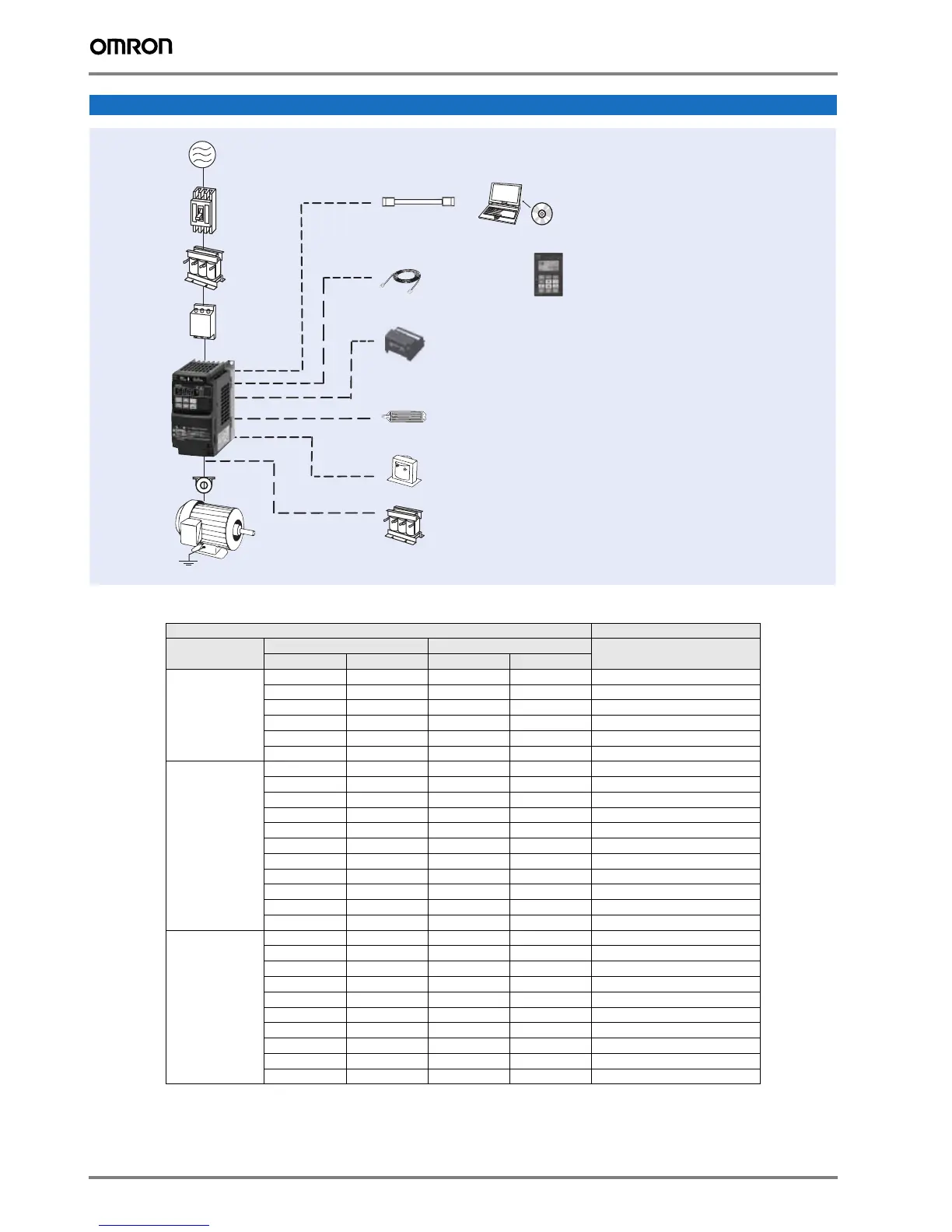

Omron MX2 Product Information

10 Frequency inverters
MX2
Ordering information
Specifications Model
Voltage class
Constant torque
Variable torque
Standard
Max motor kW
Rated current A Max motor kW Rated current A
Single-phase 200 V
0.1 1.0 0.2 1.2 MX2-AB001-E
0.2 1.6 0.4 1.9 MX2-AB002-E
0.4 3.0 0.55 3.5 MX2-AB004-E
0.75 5.0 1.1 6.0 MX2-AB007-E
1.5 8.0 2.2 9.6 MX2-AB015-E
2.2 11.0 3.0 12.0 MX2-AB022-E
Three-phase 200 V
0.1 1.0 0.2 1.2 MX2-A2001-E
0.2 1.6 0.4 1.9 MX2-A2002-E
0.4 3.0 0.55 3.5 MX2-A2004-E
0.75 5.0 1.1 6.0 MX2-A2007-E
1.5 8.0 2.2 9.6 MX2-A2015-E
2.2 11.0 3.0 12.0 MX2-A2022-E
3.7 17.5 5.5 19.6 MX2-A2037-E
5.5 25.0 7.5 30.0 MX2-A2055-E
7.5 33.0 11 40.0 MX2-A2075-E
11 47.0 15 56.0 MX2-A2110-E
15 60.0 18.5 69.0 MX2-A2150-E
Three-phase
400 V
0.4 1.8 0.75 2.1 MX2-A4004-E
0.75 3.4 1.5 4.1 MX2-A4007-E
1.5 4.8 2.2 5.4 MX2-A4015-E
2.2 5.5 3.0 6.9 MX2-A4022-E
3.0 7.2 4.0 8.8 MX2-A4030-E
4.0 9.2 5.5 11.1 MX2-A4040-E
5.5 14.8 7.5 17.5 MX2-A4055-E
7.5 18.0 11 23.0 MX2-A4075-E
11 24.0 15 31.0 MX2-A4110-E
15 31.0 18.5 38.0 MX2-A4150-E
Choke
A
B
B
LCD 5 lines remote
operator
Remote operator
extension cable
A
A
C
A
Output AC reactor
Communication option
USB cable
Braking resistor
D
B
E
A
CX-Drive
CX-One
MCCB
MX2
Filter
Input AC reactor
Motor
Ground
Power
supply
DC reactor

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
