3 Connecting to Mitsubishi PLCs
3-24
NB-series Programmable Terminals Host Connection Manual (V108)
The PLC Settings when using Communication Protocol of Mitsubishi QnA 3EBin Ethernet (TCP Slave)
is as shown below.

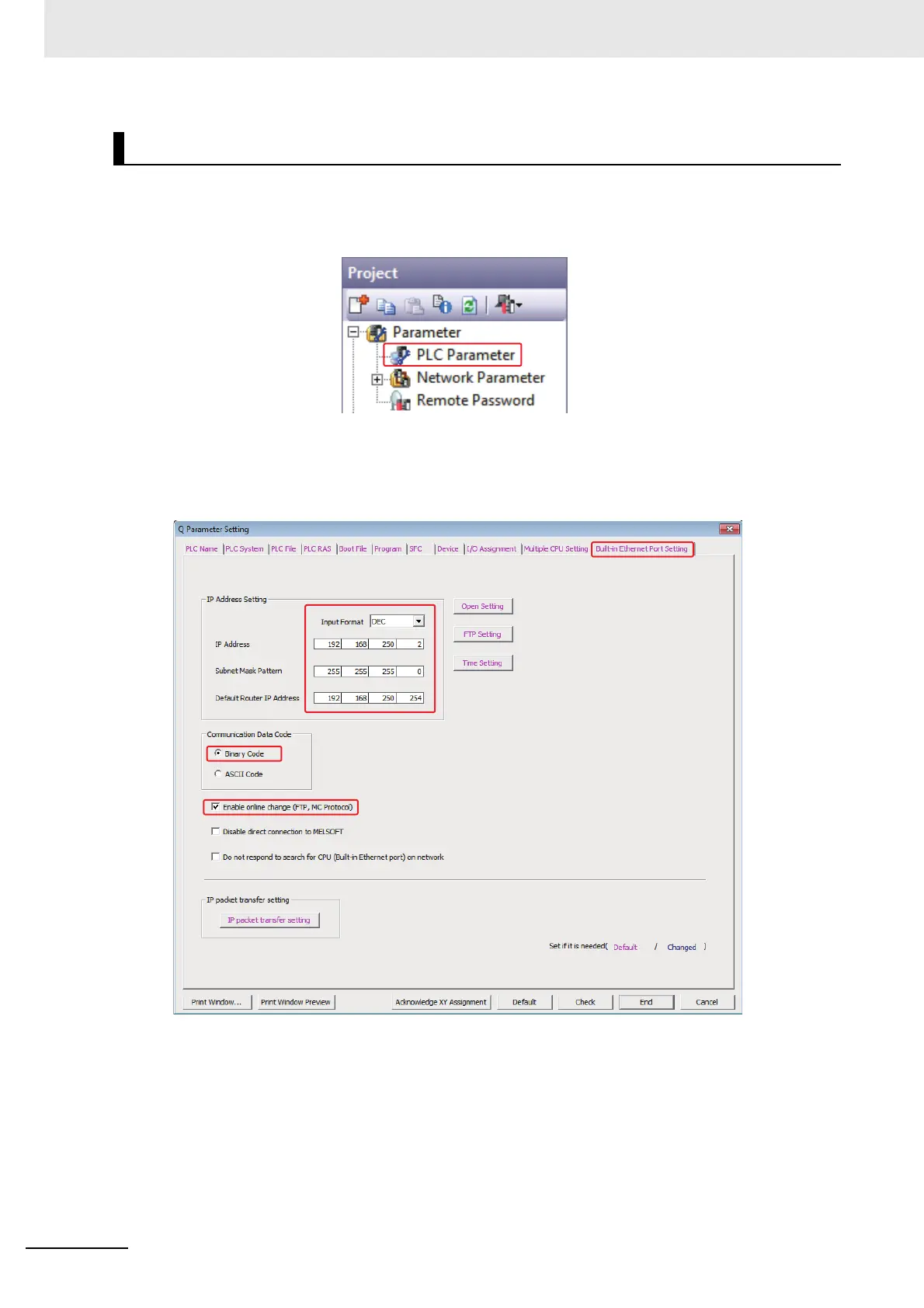

1 Double-click the [PLC Parameter] under [Project] of GX Works2 software.
2 [Q Parameter Setting] or [L Parameter Setting] dialog boxes are open.
Set the IP address to the same parameters as the PT settings.
Other settings should be the same as the dialog box as below.
PLC Settings
