10. Appendix 2 Setting the Tag Data Links Using the Software
10.4.3. Setting the Connection

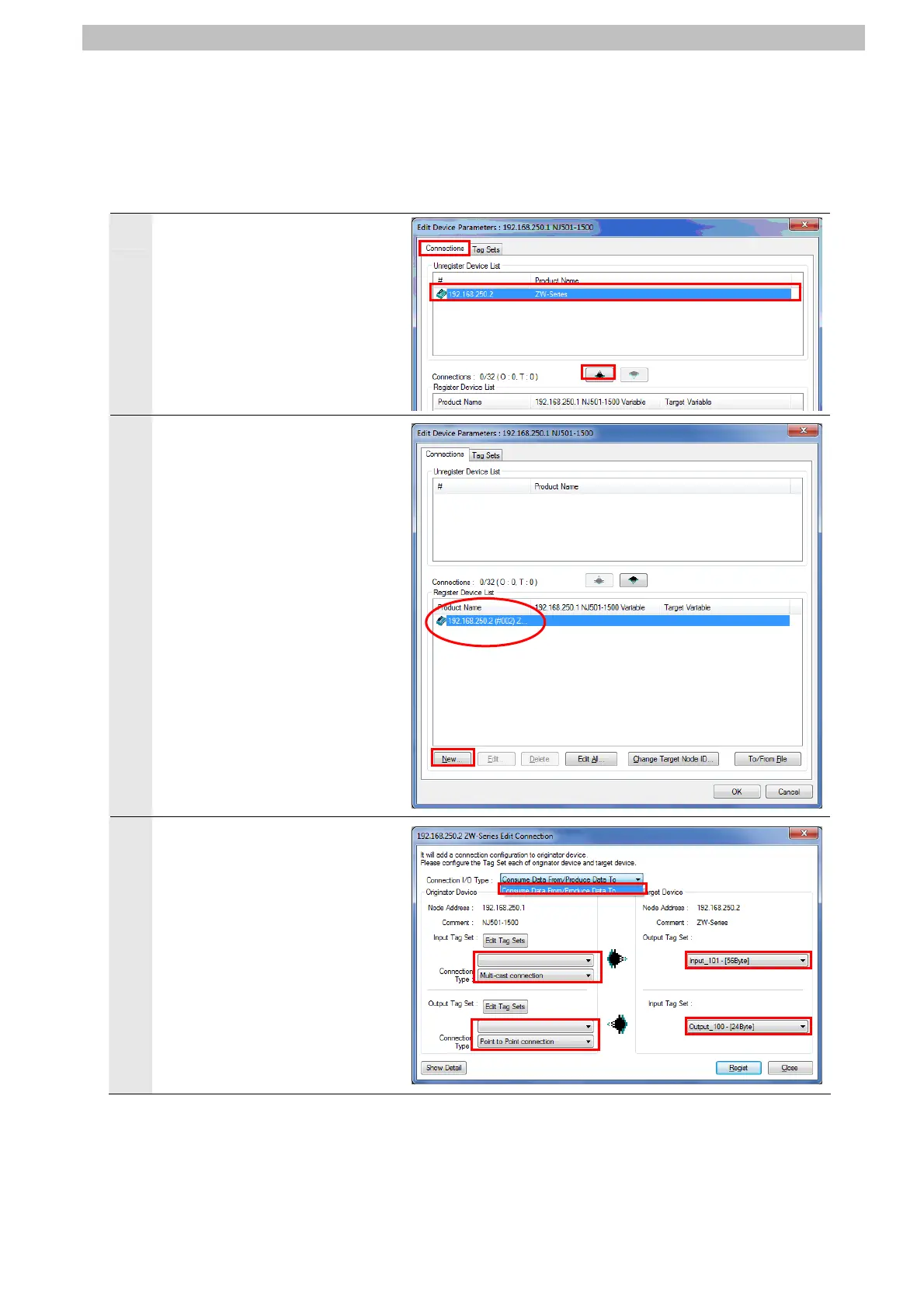

Associate the tags of the target device (that receives the open request) with the tags of the
originator (that requests opening).
1
Select the Connections Tab in
the Edit Device Parameters
Dialog Box.
Then, select 192.168.250.2 in
the Unregister Device List Field.
Click the Down Button that is
shown in the dialog.
2
192.168.250.2 is registered in
the Register Device List.
Select 192.168.250.2 and click
the New Button.
3
The Edit Connection Dialog Box
is displayed. Select Consume
Data From/Produce Data To
from the Connection I/O Type
Pull-down Menu.
In the same way, in each field of
Originator Device and Target
Device, set the values listed in
the following table.
