Omron NS12-TS01 V2 Series User Manual

3-8 Installing the Controller Link Interface Unit
● Connecting the Cable
Connect the functional ground terminal of the PT and the cover with the cable to prevent mal-
function due to noise.
Connect with the cable provided.

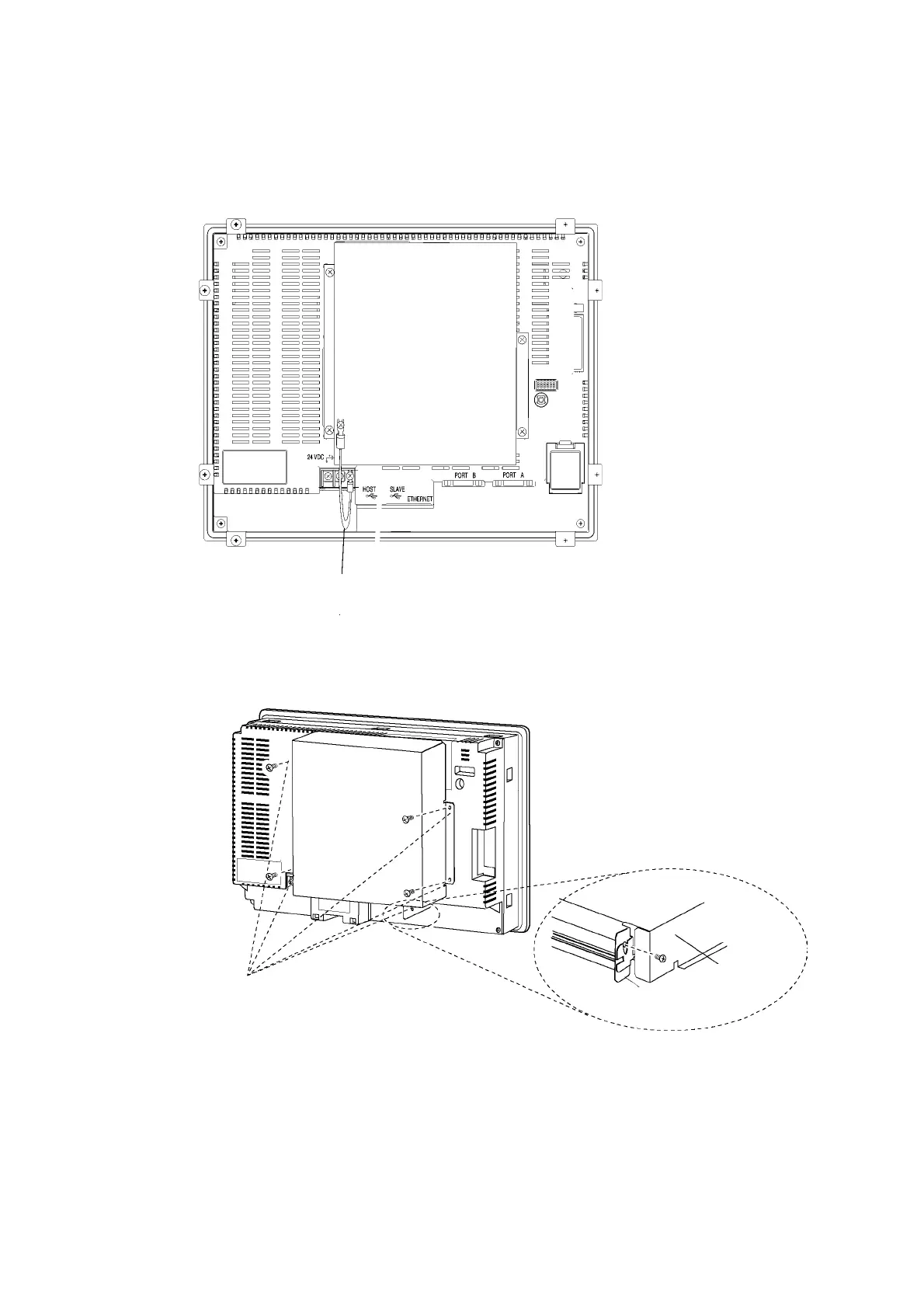

● Removing Controller Link Interface Unit
1. Remove the cover.
Remove these screws and
remove the cover.
Cover
Controller Link
Support
Board
3-47
