3-8 Installing the Controller Link Interface Unit

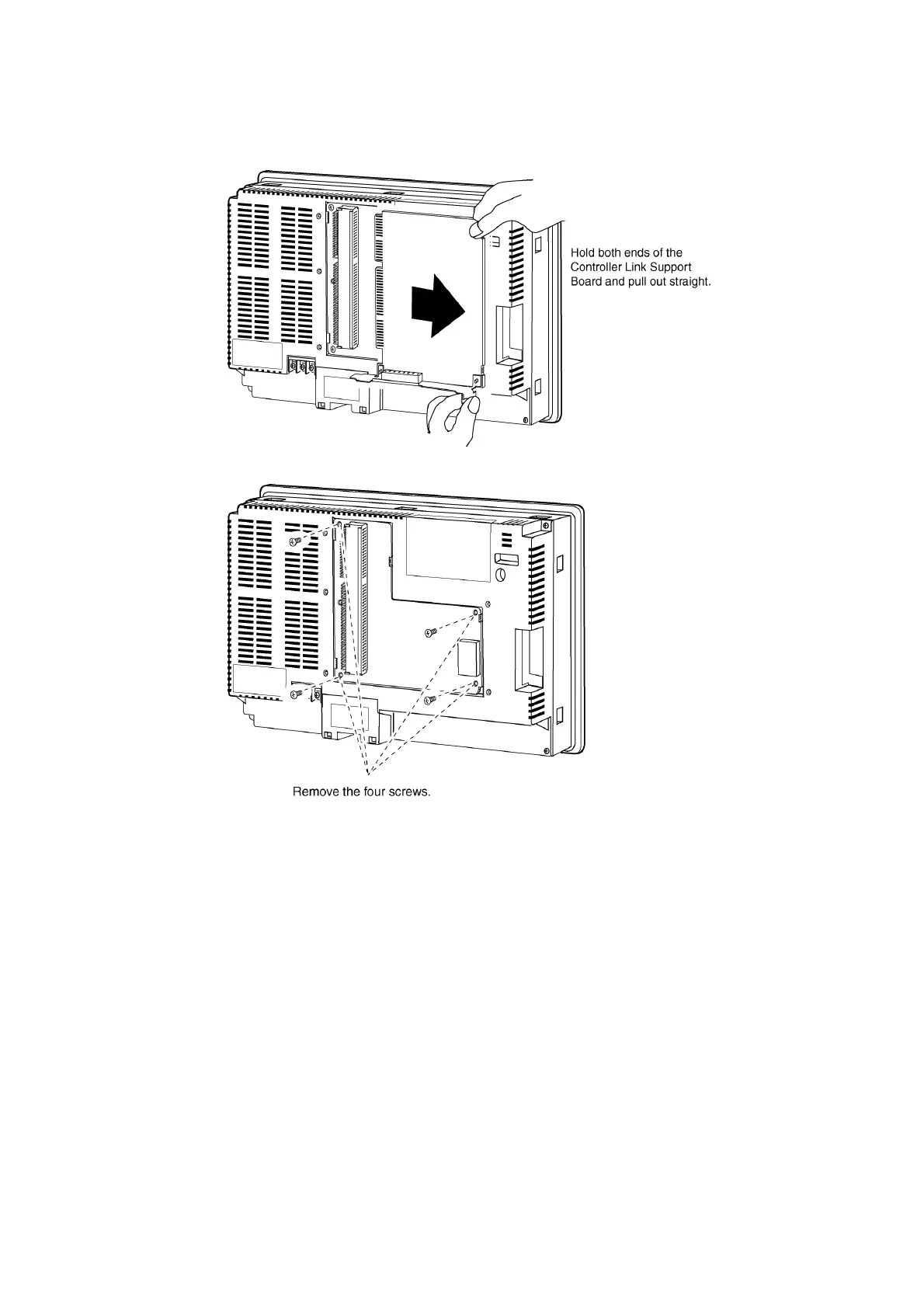

2. Disconnect the Controller Link Support Board from the connector conversion board. Hold
both ends of the Controller Link Support Board and pull out straight.
3. Remove the screws from the Connector Conversion Board.
3-48
