6-7SectionSetting Conditions for Communications with Host by Using Memory Switches
128

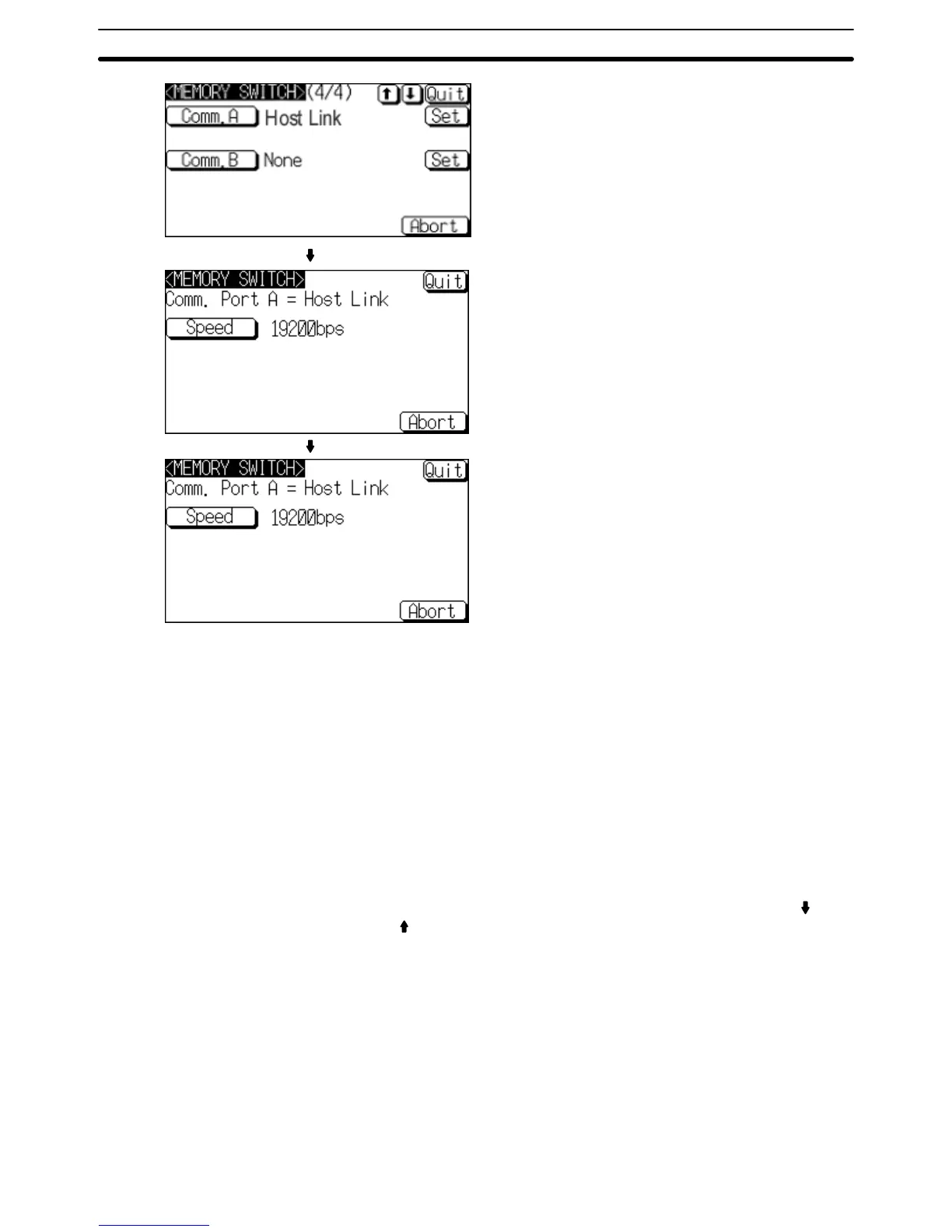

Press
the Comm. Speed touch switch to dis
-
play the baud rate to be set.
The setting option changes each time the
touch switch is pressed.
In this example, serial port A is used.
Press Quit.
The baud rate is set.
Press
the Set touch switch to the
right of the
port at which the setting has been made.
In this example, serial port A is used.
• To quit the baud rate setting screen without setting the baud rate, press the
Abort touch switch. The NT21 returns to the memory switch setting screen
(4/4) and the previous baud rate remains in effect.
On
completion of
baud rate setting, the NT21 returns to the memory switch set
-
ting screen (4/4).
To set other memory switches, select the relevant screen using the [
] (next
screen) or [
] (previous screen) touch switch, then make the setting.
• To confirm
the settings and quit the memory switch setting screen, press the
Quit
touch switch. The settings made last will be set and the NT21
will return to
the MAINTENANCE MODE MENU screen.
If
the combination of settings for serial port A and serial port B is not allowed,
an
error message (indicating that the protocol settings are incorrect) will be dis-
played
when the Quit touch switch is pressed. In this case, correct the settings
to a combination that is allowed.
• To
quit the memory switch setting screen
without confirming the settings, press
the Abort touch switch. The NT21 will return to the MAINTENANCE MODE
MENU screen with the previous settings still in effect.
