4 - 27
4 Installation and Wiring
NX-series Digital I/O Unit User’s Manual (W521)
4-3 Wiring the Terminals
4
4-3-1 Wiring to the Screwless Clamping Terminal Block
In order to prevent unintentionally installing the wrong terminal block, you can limit the combination of a
Unit and a terminal block.
Insert three Coding Pins (NX-AUX02) into three of the six incorrect attachment prevention holes on the
Unit and on the terminal block. Insert these pins into positions so that they do not interfere with each
other when the Unit and terminal block are connected to each other.
You can use these pins to create a combination in which the wrong terminal block cannot be attached
because the pin patterns do not match.

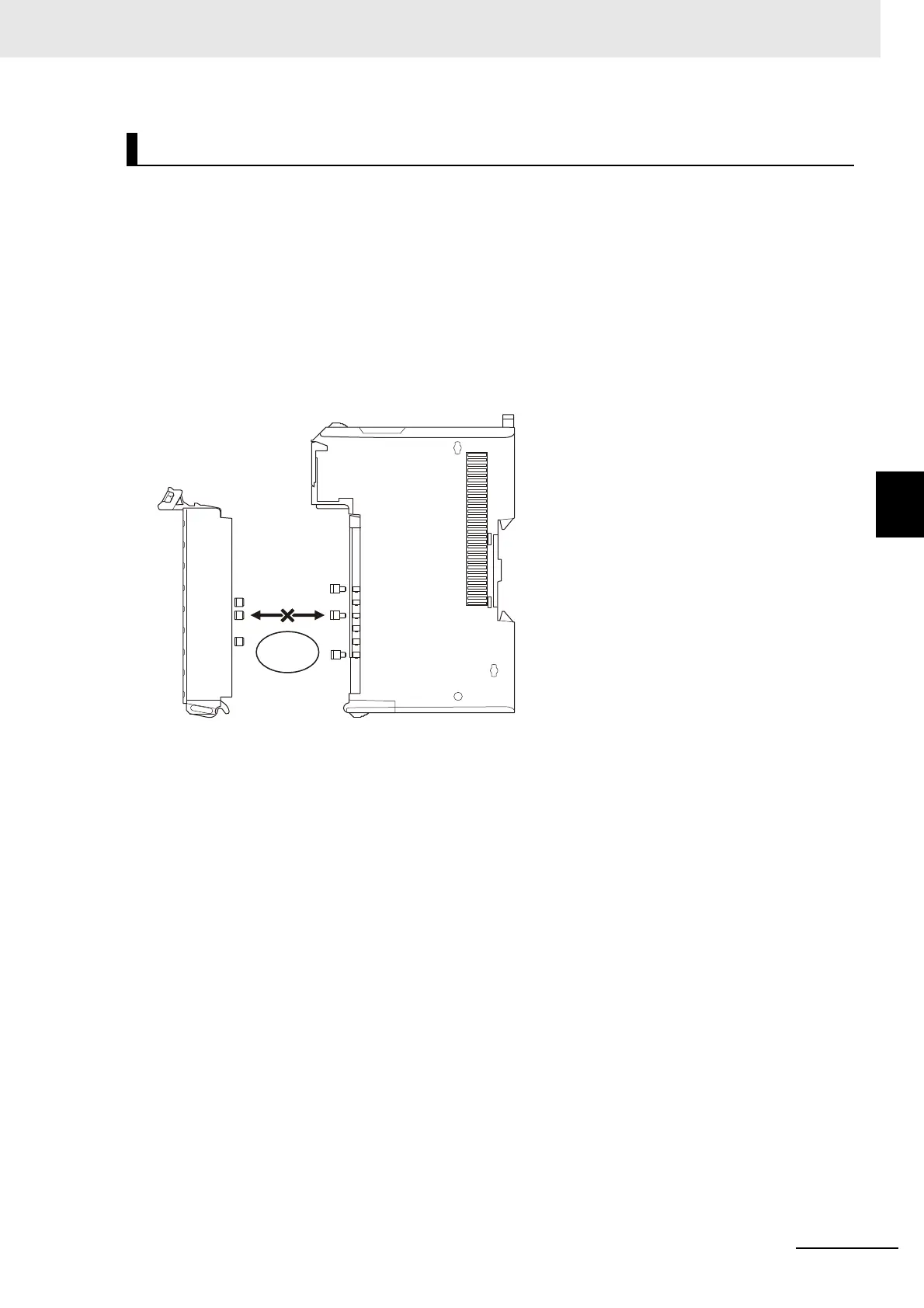

Preventing Incorrect Attachment of Terminal Blocks
Terminal Block
Unit
Cannot be
attached.
