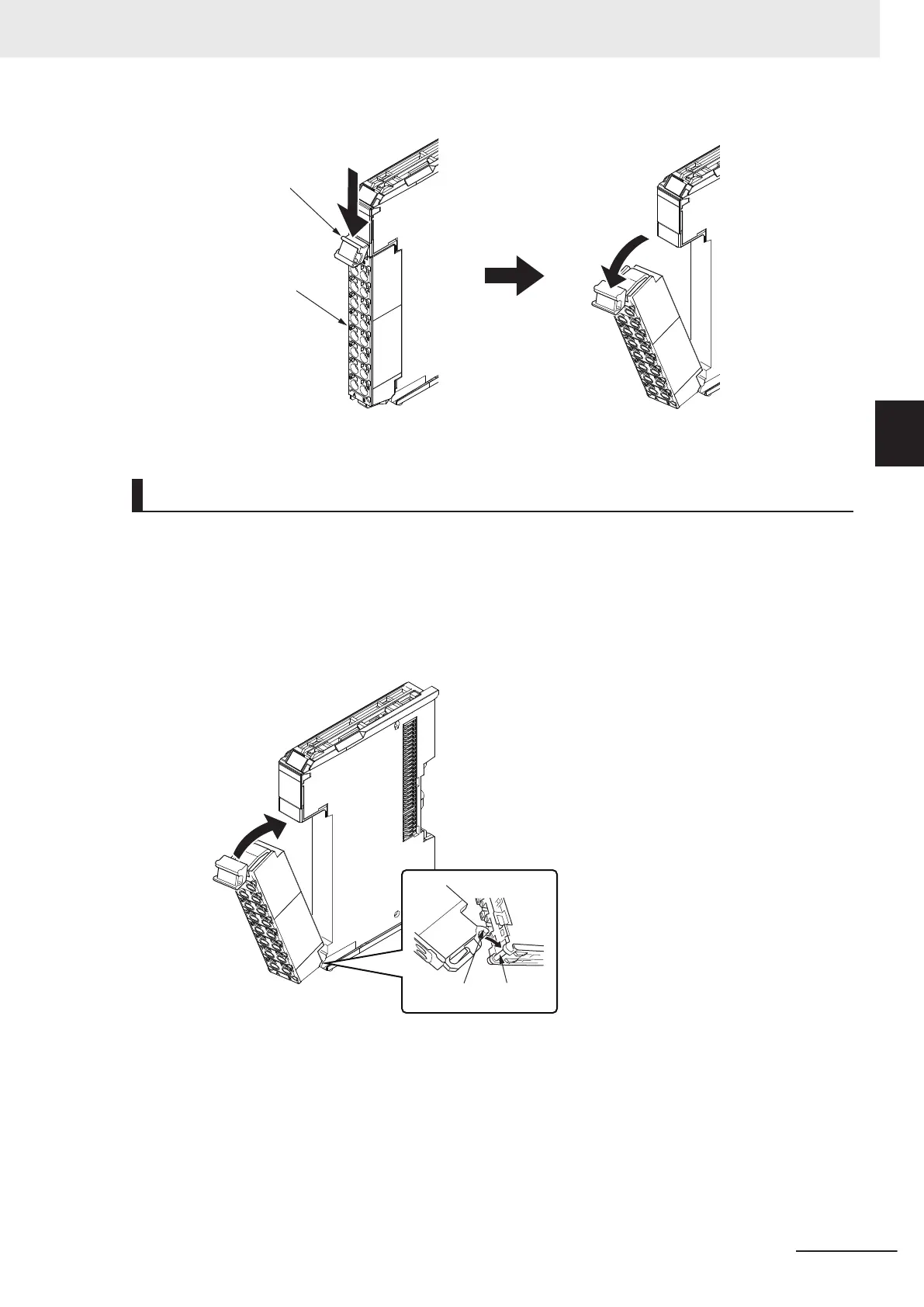

Attaching a Terminal Block
1 Mount the terminal block hook that is applicable to each Unit model on the guide at the bottom
of the NX Unit, lift up the terminal block, and press in on the top of the terminal block until you
hear it engage.
The terminal block will click into place on the Unit. After you mount the terminal block, make
sure that it is locked to the Unit.
Mount a Terminal Block that is applicable to the model of each Unit.
Refer to Applicable Terminal Blocks for Each Unit Model
( page 2 - 24, page 2 - 37) for the applicable
Terminal Blocks.
3 Installation and Wiring
3 - 19
NX-series Safety Control Unit User's Manual (Z930)
3-3 Wiring the Terminals
3
3-3-1 Wiring to the Screwless Clamping Terminal Blocks
